12*12 5-Direction Navigation Switches

Are you a factory or a trading company?

Answer: We are a factory, we can guarantee our price is first hand, very cheap and competitive.

How is the quality control in your factory?

Answer: All products will be 100% checked before shipment.

How to contact us?

Tel: 86-13377785035

Wechat: kkg-vivian

Email: xyy@kkg.tw

WhatsApp: +8613377785035

Inquire Now Download

Product Details
More Products
Packing & Delivery
FAQ

12x12 5-way Switch Button Sets's Product Details

Diameter:	36mm	Life:	100000 Cycles
Marketing Mode:	Factory Direct Sales	Rated Voltage:	12V
Rated Current:	0.5A	Contact Resistance:	100mΩ
Insulation Resistance:	100MΩ	Product Nature:	Upset
Operation Force:	240gf-280gf	LED:	No

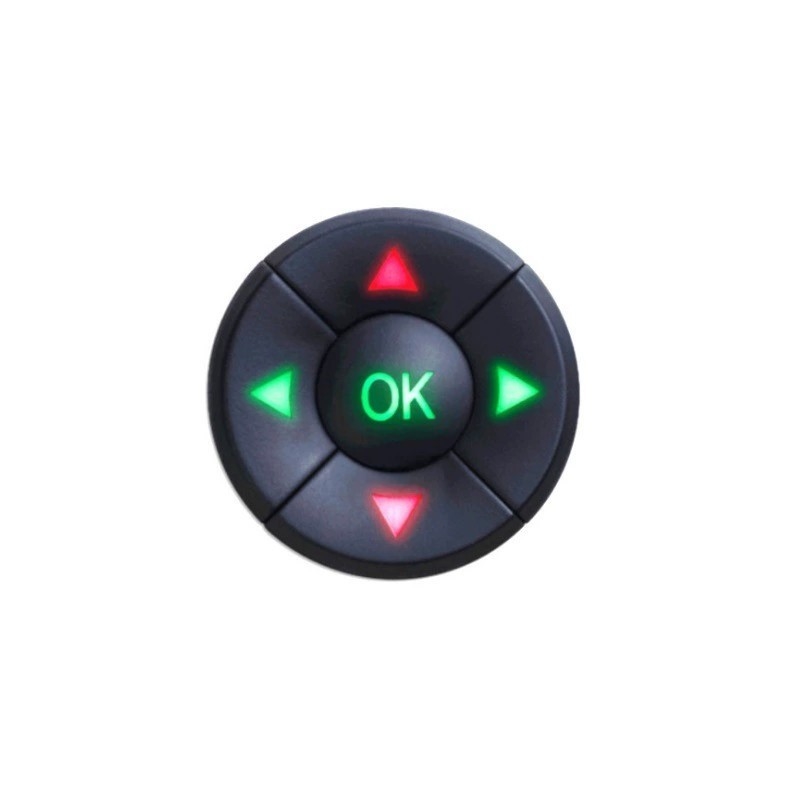

1. 12*12 5-direction navigation switches' Product Description

The 12*12 five-way combination light touch switch is a light touch switch with five directions, and its size is 12mm×12mm, which is usually used in electronic devices that require multi-direction control. The design of this switch allows users to achieve different directions through a simple touch action, thus improving the ease of use and user experience of the device.

2. 36mm push button switches' product characteristics

Multi-directional control: The 12*12 five-way combination tap switch provides control in five directions, including up, down, left, right, and center (or confirm/select) directions to meet the needs of complex operations.

Compact design: Its compact size makes it ideal for use in electronic devices with limited space, such as mobile phones, game consoles, remote controls, etc.

Touch feedback: The touch switch usually has a good touch feedback, so that the user can clearly perceive the action of the switch, thus improving the accuracy of the operation.

High reliability: These switches are usually made of high-quality materials and manufacturing processes, with high reliability and durability, and can withstand frequent operation and long-term use.

3. 5 Ways push button switches' Application fields

12*12 five-way combination tap switches are widely used in a variety of electronic devices requiring multi-direction control, such as:

Game Console: Used in a gamepad or game controller to provide up, down, left, right, and confirm/select directions.

Remote control: Used in the remote control of household appliances such as TV, air conditioning, audio, etc., to facilitate the user to switch and operate various functions.

Mobile phones: Some mobile phones or mobile phone accessories (such as game controllers) also use this switch to achieve multi-direction control functions.

Other electronic devices: such as PDA, MP3 player, digital camera and other portable electronic devices may also use this switch.

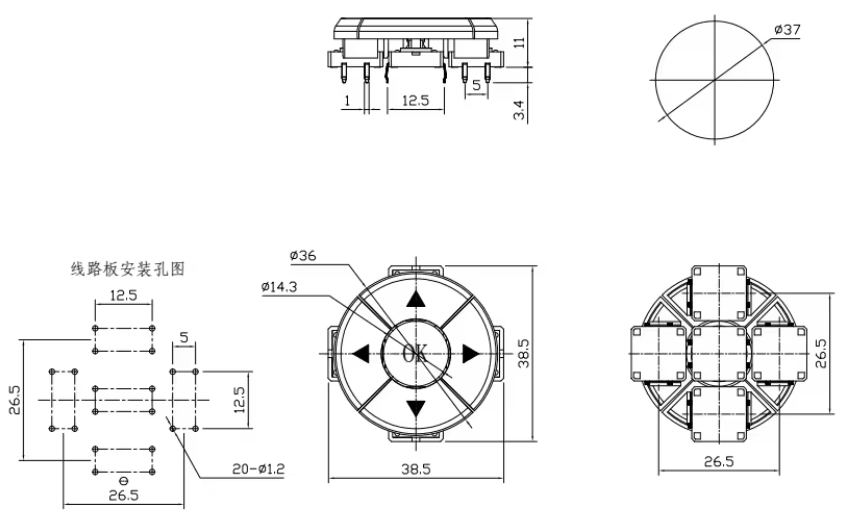

5 direction navigation 12*12 tact switches' drawing

1733189601509109

1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton

2: Upon customers' request, but the price is different with neutral packing

3: Carton size: be confirmed by both sides

4: 25/35/50 pcs/box

Delivery Time

Shipped in 1 day after payment

1. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

2.what can you buy from us?

Tact Switch,USB Connector,Slide Switch,DC Jack,Rocker Switch

3. why should you buy from us not from other suppliers?

Tact switch,Membrane Touch Switch

KKG brand,environmental.

Our company consists: the R & D center, Quality Control Department Production Department, Logistic Department, and other departments with different functions.

High-quality first

4. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese
