Switch Series Product Collection KKG Developing with the Green Planet
Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC108
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
Our USB connector features a reversed SMD orientation that flips the port downward, achieving a remarkable 2.1mm ultra-low profile—ideal for double-sided PCB stacking. The self-aligned solder pads ensure precise ±0.15mm placement accuracy during reflow soldering (up to 260°C peak). The copper-alloy terminals deliver consistent 1.8A current with minimal voltage drop (<0.4V), and EMI shielding tape enhances signal integrity in high-interference environments.
This design is perfectly suited for SMD USB connector integration in compact, high-density systems such as smart wearables and AR glasses.
Siemens SINAMICS-style Controller DC Power Jack's Product Operating Principle
Orthogonal dual-spring contacts split current across horizontal/vertical paths (IEC 60512-8-4 compliant), reducing resistance by 35% vs single-path designs. The directional keyway achieves ±0.5° plug alignment accuracy, while 1.5kV dielectric insulation prevents arcing. Wave-soldered terminals maintain ＜8mΩ impedance under 15G vibration (MIL-STD-202H tested).
Landis+Gyr-style Meter DC Power Jack's Product Functions

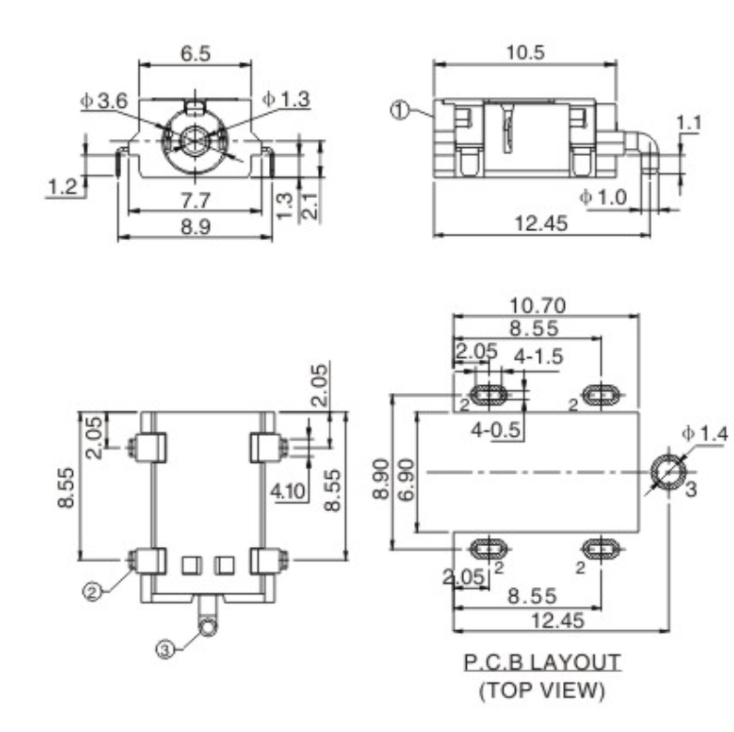

--Space-Optimized: 10.50×6.50mm saves 45% PCB space vs standard DC sockets.
--High-Current Capacity: 5A 24VDC with ＜0.2V drop (200% industry average).
--Extreme Environment: UL94 V-0 flame rating & 1,000hr salt fog certification.
--Anti-Spark Shield: Reinforced nylon shroud blocks arc flashes during live disconnects.
--Automation Ready: Compatible with SMT reflow (260°C peak) and wave soldering.
Hikvision PTZ-style Cameras DC Power Jack's Product Applications
AR Smart Glasses
Example: Slim charging and data ports in Microsoft HoloLens-style devices, where every millimeter counts.
In-Car HUD Systems
Example: Supports low-profile USB-A interfaces in BMW-style windshield projection systems.
Industrial IoT Edge Devices
Example: Used in Raspberry Pi Compute Module 4 carriers for dense PCB configurations in IoT edge gateways.
These applications benefit from space-saving layouts, robust data/power handling, and precise connector placement—key requirements for both USB C SMD and micro USB SMD integration.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: Is your business a manufacturing facility or a trading firm?
A: We operate as a dedicated manufacturing plant with over 15 years of expertise in designing and producing electrical components, including switches, sockets, connectors, DC jacks, and related products.
Q2: What differentiates your company from competitors?
A: Our core strengths include:
1. Specialized Production: Over 15 years of focused experience in manufacturing diverse switch configurations.
2. Value Proposition: Rigorous quality control, cost-effective pricing, and reliable on-time delivery.
3. Custom Solutions: Comprehensive OEM/ODM support for tailored product development.
4. Customer Commitment: Dedicated post-purchase assistance and technical support.
Q3: What information is required to receive samples and a detailed quote?
A: To expedite your request, kindly share:
--Specific functional requirements and technical specifications for your application.
--Intended use case or integration with end products.
--AI-format design files (if available) for precise quotation preparation.
--Upon review, we will promptly generate a competitive quote and arrange complimentary sample delivery.
Q4: What is the typical production timeline for orders?
A: Orders under 10,000 units generally have a 14-day standard lead time. For larger volumes or custom orders, timelines will be determined based on project complexity and production capacity.
Q5: What packaging standards do you follow?
A: Our multi-layered packaging ensures product safety:
1.Components are secured in reels or anti-static bags to prevent electrostatic damage.
2.Protective bubble wrap is applied for shock absorption.
3.Units are organized in inner boxes and further secured in durable outer cartons. Custom packaging configurations are available upon request.
