Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

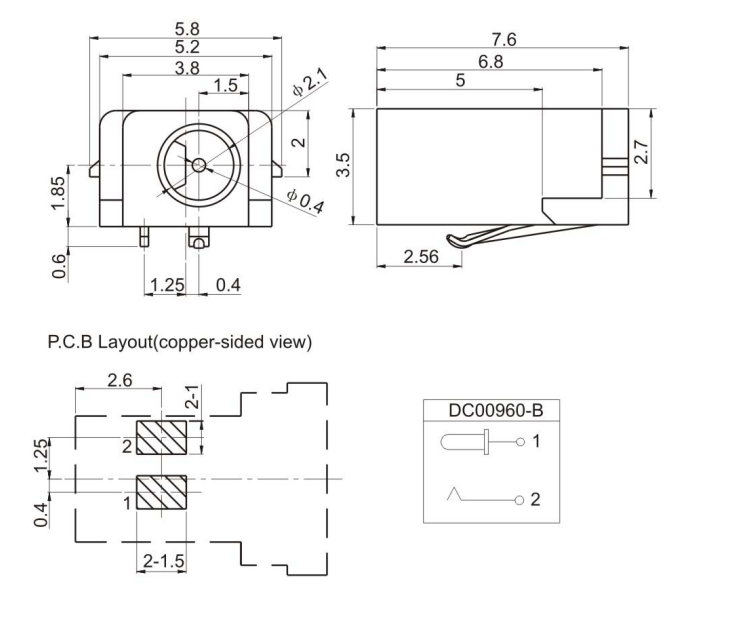

Model Number: DC096
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag/Reel for goods+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com/
ASUS Eee PC 2.1mm DC Power Jack's Product Operating Principle
The 2.5mm DC Power Jack establishes an electrical connection between an external power source and an electronic device. The inner pin carries the positive voltage, while the outer sleeve carries the negative or ground connection, ensuring efficient and stable power transfer.
Sony Boombox 2.1mm DC Power Jack's Product Functions
1.Power Delivery: Transfers power from external adapters to devices.
2.Stable Connection: Provides a secure and uninterrupted power link.
3.Space Efficiency: Compact design saves valuable PCB space.
Hikvision Mini Cameras 2.1mm DC Power Jack's Product Applications
1.Consumer Electronics:
Laptops and Netbooks: Older models like HP Mini series or ASUS Eee PC.
Portable Music Systems: Sony Boombox or JBL PartyBox speakers.
2.Industrial Devices:
Power Supply Units: Bench power supplies in labs.
CCTV Systems: Hikvision Mini Cameras or Dahua Dome Cameras.
3.IoT and Development Kits:
Microcontrollers: Arduino Uno, ESP8266 development boards.
Smart Home Gadgets: Compact smart hubs or plug adapters.
| Rating | 1.0A, 30V DC |
| Contact Resistance | 30mΩ Max(initial) |
| Insulation Resistance | 100mΩ Min(250VDC) |
| Dielectric Strength | AC 500V(50Hz for 1minute) |
| Actuating Force | 3-20N |
| Environment Temperature | -30℃~70℃ |
| Electrical Life | 5,000 Cycles |
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: Are you a factory or a trading company?
A: We are a manufacturer with more than 15 years of experience specializing in switches, sockets, connectors, DC jacks, and related products.
Q2: What is the typical delivery time?
A: For orders below 10,000 pieces, the standard lead time is around two weeks. Larger quantities may require additional time based on the order size.
Q3: How do you ensure product quality?
A: All items are thoroughly tested and inspected before shipping. We guarantee dependable and long-lasting quality.
Q4: Can I request samples?
A: Yes, free samples are available, though customers are expected to cover the shipping expenses.
Q5: How are shipping costs determined?
A: Shipping fees vary depending on the quantity ordered and the destination of the shipment.
