Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC091
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com/
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

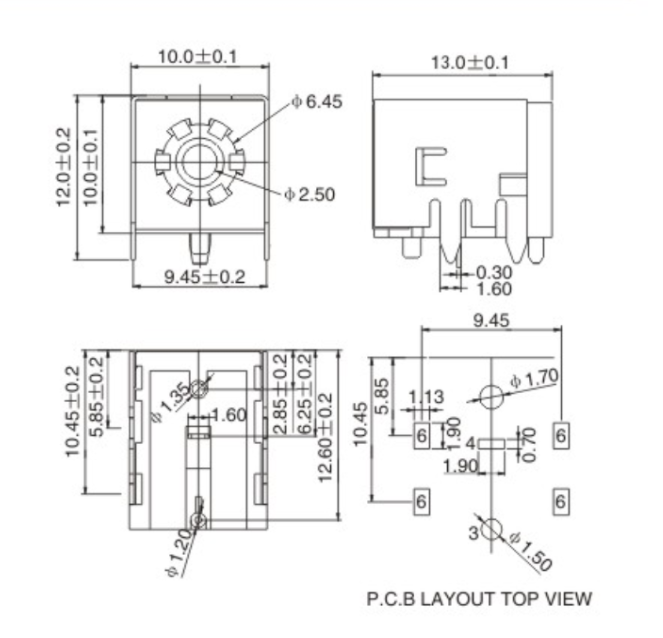

| Dimension | 13.00mm* 10.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Phoenix Contact-style PLC Interface DC Power Jack's Product Operating Principle
Orthogonal current splitting through horizontal/vertical spring paths (IEC 60512-8-4 validated) reduces contact resistance by 28%. The 3.5mm deep keyway ensures ±0.8° plug alignment, while 1.8kV dielectric insulation blocks arc propagation. Through-hole terminals maintain ＜15mΩ impedance under 12G vibration.
Kamstrup-style Ultrasonic Meter DC Power Jack's Product Functions
--Vertical Optimization: 10.00mm height fits 1U chassis with 8mm clearance.
--Balanced Power: 3A 24VDC with ＜0.3V drop (compatible with PoE+ standards).
--Industrial Lite: UL94 V-2 + 500hr salt fog resistance for cost-sensitive automation.
--Spark Containment: Ferrite-loaded housing suppresses EMI up to 30dB at 150MHz.
--Flexible Production: Compatible with wave soldering (25,000 units/hour).
WISE-4000-style Gateway DC Power Jack's Product Applications
DIN Rail Power Modules
Example: Integrated into Phoenix Contact-style PLC interfaces for compact DC distribution.
Smart Water Meters
Example: Powers Kamstrup-style ultrasonic meters with 24V isolated power inputs.
Industrial IoT Edge Nodes
Example: Deployed in Advantech WISE-4000-style gateways for fieldbus connectivity.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What industries do your PCB/PCBA services support?
A: Our PCB/PCBA solutions serve medical, automotive, energy, measurement, and consumer electronics sectors, adhering to industry-specific compliance and performance standards.
Q2: What is the process for developing custom molds?
A: Custom molds require feasibility analysis, cost negotiation, and lifespan forecasting. Submit end-product details to initiate a 5-day technical review.
Q3: Can I submit non-AI design files for quotations?
A: Yes, Gerber files, CAD models, or schematics are acceptable. AI formats ensure faster turnaround but are not mandatory for initial quotes.
Q4: What warranty and technical support accompany orders?
A: 12-month warranty against manufacturing defects. 24/7 engineering support via email/chat for integration troubleshooting.
Q5: Do you provide industry-specific certifications for medical devices?
A: Medical-grade products include ISO 13485 documentation, sterilization reports, and biocompatibility testing data upon request.
