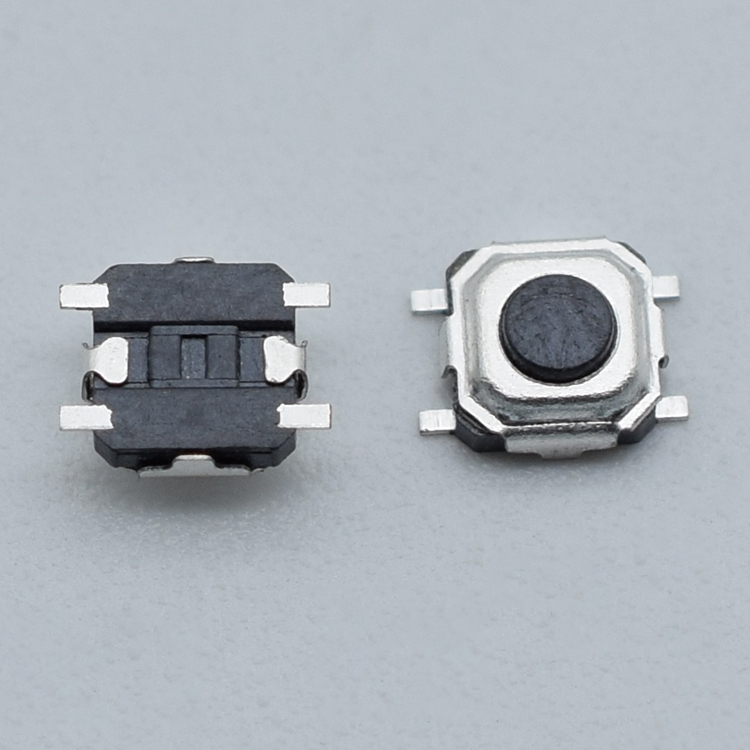

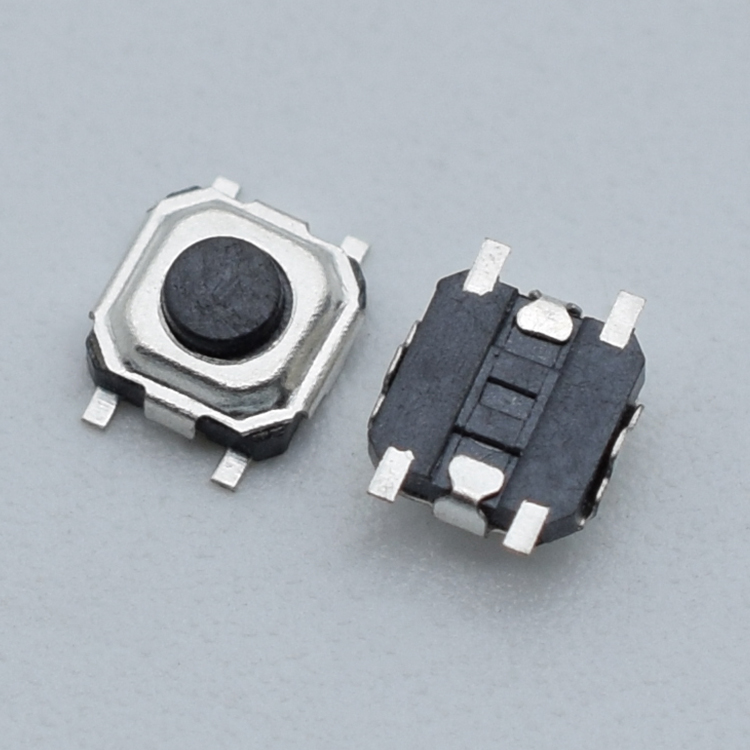

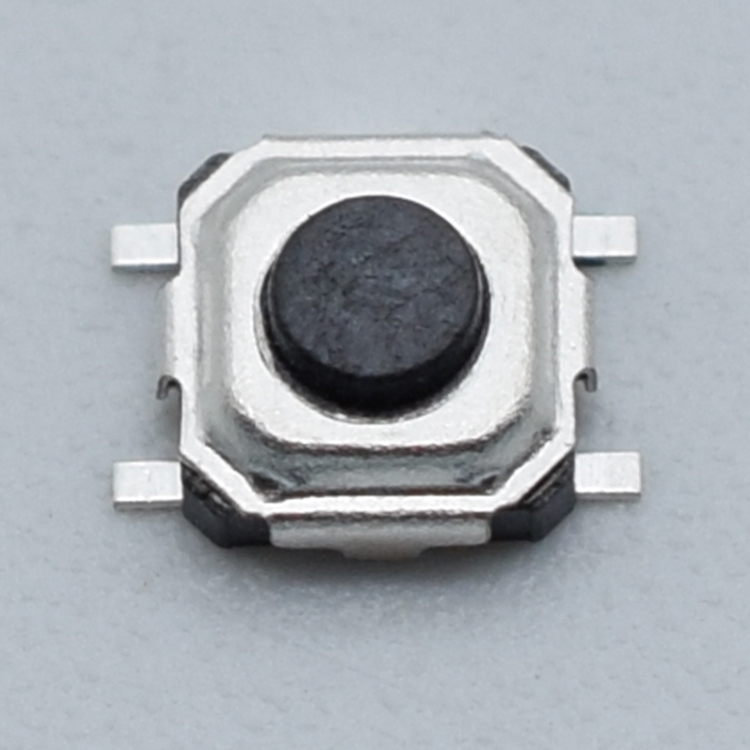

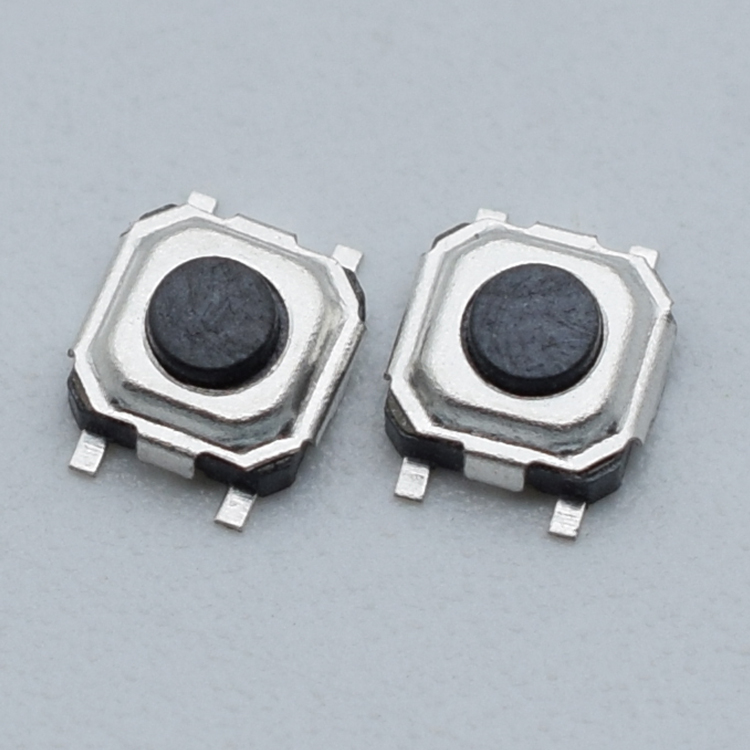

Mini 3*3 Tact Switches' Display
Tactile Switch Definition
These small sized tact switches are placed on PCBs and are used to close an electrical circuit when the button is pressed by a person.
When the button is pressed, the switches turn ON and when the button is released, the switches turn OFF.
A Tactile switch is a switch whose operation is perceptible by touch.
Tact switch Function
Click Response: The click response of the button lets the user feel the response of the operation from the switch;
High Durability: The contact dome, which also acts as a moving contact,has specific materials, surface processing and shape properties to maintain a stable contact over a long period of use.

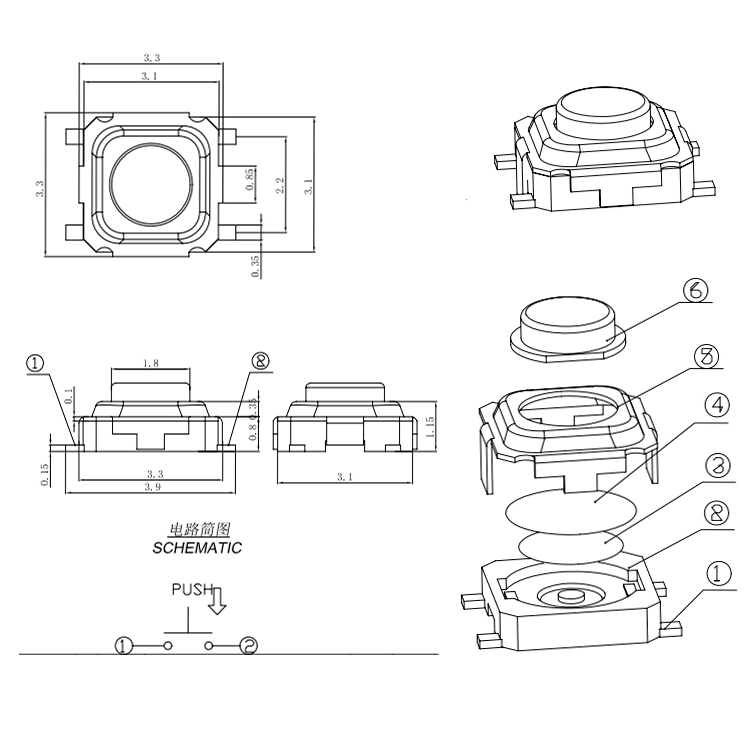

Micro 3*3 Touch Switches' Paramater
| Max. Current | 50mA |
| Max. Voltage | 12V DC |
| Place of Origin | Guangdong, China |
| Brand Name | KKG |
| Model Number | TT-1177 |
| LED | NO |
| Whether the smart | NO |
| Product name | Switch Tactile 3x3 tactile push button |
| size | 3*3*1.5 mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric voltage proof | 250V AC (50HZ ) 1min |
| Type | 4 PIN |
| Operating Force | 250±30gf |
| Travel | 0.25±0.05mm |
| MECHANICAL LIFE | 50,000 cycles |
| Operating Temperature | -30 to +70℃ |
