Momentary Tact Switche' Parameter

Interpret

Operating Force: 250+40gf

Holder Height :According to the shape of holder

Holder Material: PA66\PA6T\PPA

Stem Material: PC\PA66\PA6T\PPA

Button color :Black,white,blue

Terminals：Inner pitch,SMD

Rate voltage current:  50mA DC12V

Travel:   0.25+0.1mm

Salt Mist:    24h

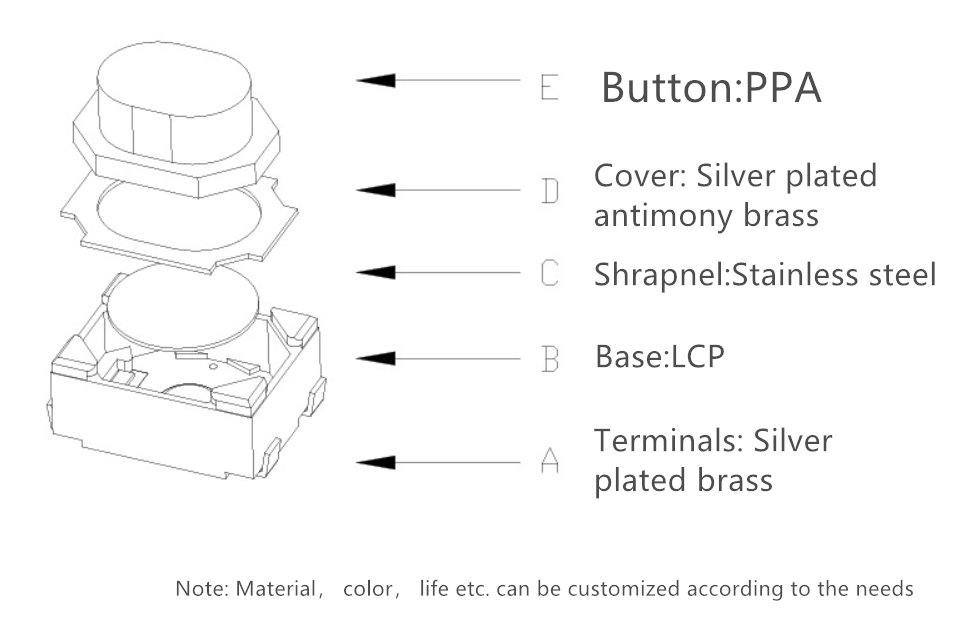

Alps Tact Switches' Product Structure

A complete 3*4 tactile Switch includes: push button, cover plate, shrapnel, base, terminal 5 parts, KKG each part of the material is strictly selected to ensure product quality.

3*4 Tact Switches' Product Characteristics

The 3*4 Turtle Tact Switch, with a size of roughly 3mm*4mm and a shape similar to that of a small turtle, is a kind of switch that can turn the circuit on or off by a light touch.

1. Small size and light weight, easy to use in small electronic equipment.

2. High sensitivity, can be triggered by a light touch, rapid response.

3. Long life, able to withstand multiple presses without damage.

4. Diversified design, can choose different materials, colors, shapes, etc. according to demand.

4P Tact Switches's Product Applications

3*4 Turtle flick switch is widely used in various electronic devices, such as:

1.Digital products: such as cell phones, cameras, tablet PCs, etc., used to control the switch, volume adjustment and other functions.

2. Security equipment: such as access control systems, alarms, etc., used to control the opening and closing of equipment.

3. Computer and communication products: such as keyboards, mice, routers, etc., used to control the operation and settings of the equipment.

4. Household appliances: such as TV sets, washing machines, air conditioners, etc., used to control the switch and adjustment of the equipment.
