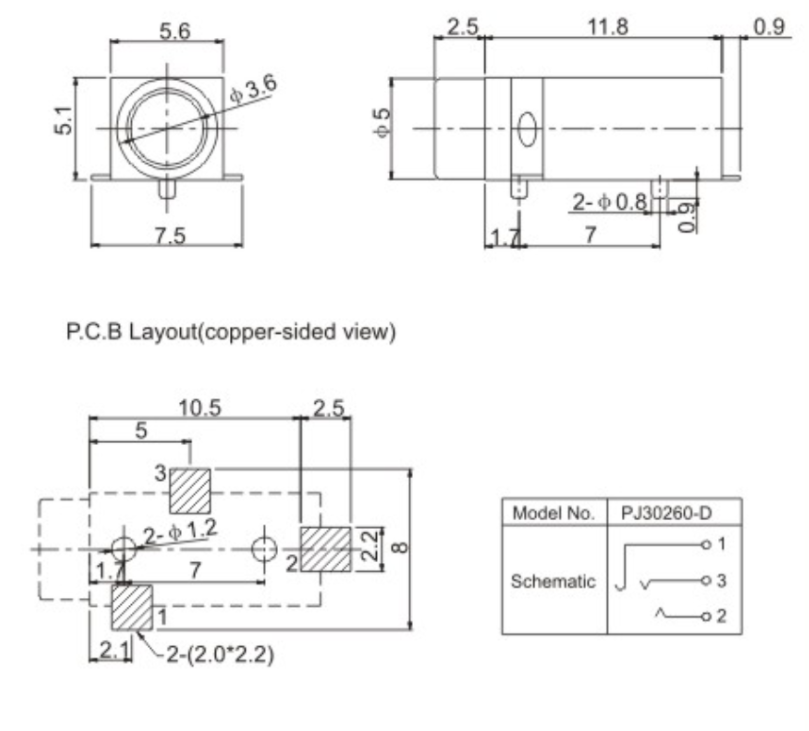

3P 3.5mm SMT Audio Phone Jack – PJ-3260

Audio-Technica AT-LP60X Turntable Headphone Jack's Product Operating Principle

1. Secure Connection: When a 3.5mm plug is inserted, the jack's internal contacts establish a firm and reliable electrical connection for clear audio transmission.

2. Signal Routing: It efficiently routes stereo audio signals (left and right channels) and a common ground, ensuring high fidelity with minimal signal loss.

3. Durable Performance: Engineered for longevity, the mechanism is designed to withstand a minimum of 5,000 insertion and removal cycles for consistent performance

Extech EX330 Autoranging Mini Multimeter Headphone Jack's Product Functions

1. Stereo Audio Interface: Provides a standard 3.5mm port for connecting stereo headphones, auxiliary cables, and other audio devices.

2. Efficient PCB Assembly: The surface-mount technology (SMT) design allows for streamlined, automated manufacturing processes.

3. Reliable Electricals: Rated for 0.5A at 30V and with an AC500V dielectric strength, it ensures safe and stable operation in any audio circuit.

4. Long-Term Reliability: Built to endure 5,000 connection cycles, making it a dependable choice for high-use commercial products.

Omron HEM-7361T Blood Pressure Monitor Headphone Jack's Product Applications

1. Domestic Audio: Integrated into the S.M.S.L C200 DAC and Headphone Amplifier, providing a reliable front-panel headphone output for home audio enthusiasts seeking high-fidelity sound.

2. Industrial Handhelds: Used in the Getac S410 Semi-Rugged Notebook as the primary audio port, allowing field technicians to connect headsets for communication or audible diagnostics in various work environments.

3. Medical Monitoring: Serves as the audio output on the Masimo Rad-97 Pulse CO-Oximeter, enabling clinicians to connect headphones for private monitoring of patient alarms, utilizing a dependable mini jack 3 5mm connection.
