4Pins 3.5mm SMT 4-Pin Audio Jack – PJ-327C

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-327C

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union

More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

Inquire Now

Product Details

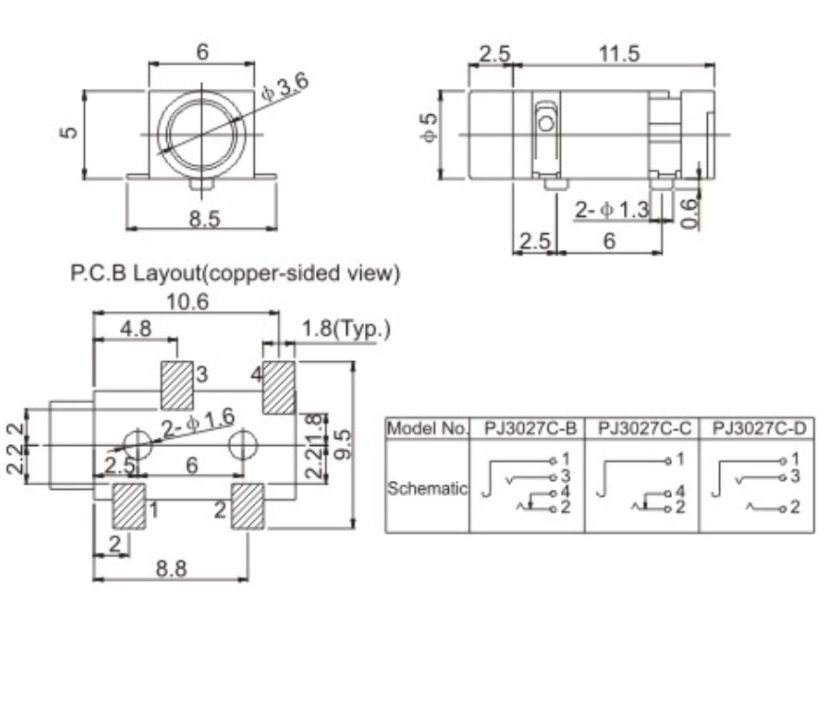

Dimension
Temperature Profile
Packaging Efficiency
FAQ

Characteristics	Specification
Rating	0.5A 30V
Actuating force	3~30N
Dimension	14.00mm*6.00mm
Operating life	5,000 cycles
Dielectric Strength	AC500V
Contact Resistance	50mΩ Max

Rode Wireless GO II receiver Headphone Jack's Product Operating Principle

4-Pin Connection: The TRRS design provides four dedicated contacts, enabling the transmission of stereo audio (left/right), a microphone signal, and a common ground.
Signal Integrity: It establishes a stable connection with low contact resistance (50mΩ Max), preserving the clarity and fidelity of both audio and voice signals.
Durable Performance: Built for repeated use, the mechanism is rated for a minimum of 5,000 insertion and removal cycles, guaranteeing long-term reliability.

Panasonic Toughbook FZ-55 Headphone Jack's Product Functions

Headset Support: Enables full headset functionality, supporting both stereo audio output and microphone input through a single 3.5mm port.
SMT Design: The surface-mount technology allows for efficient, space-saving integration onto dense printed circuit boards (PCBs).
Stable Electricals: Rated for 0.5A at 30V with an AC500V dielectric strength, ensuring safe and dependable performance in sensitive electronic circuits.
Secure Mating: A consistent operating force of 3-30N ensures a secure connection that prevents accidental disconnection during use

Philips PageWriter TC30 Cardiograph Headphone Jack's Product Applications

Domestic Electronics: Integrated into the Rode Wireless GO II receiver, this jack 3 5mm 4 pin serves as the essential output for connecting to cameras and recording devices, transmitting high-quality audio.
Industrial Computing: Used in the Panasonic Toughbook FZ-55 as the primary audio port, providing a durable connection for headsets used by field engineers and first responders for reliable communication.
Medical Devices: Serves as the connector on the Philips PageWriter TC30 Cardiograph, allowing clinicians to connect specialized data cables or headphones for monitoring and data transfer from the EKG machine.

PJ-327C

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1: Are you a direct manufacturer or a trading company?

A: KKG Electronics is a direct manufacturer with over 15 years of specialized expertise. We design and produce high-quality electronic components, including tact switches, micro switches, USB connectors, audio jacks, and more, directly from our own factory.

Q2: How can I request a sample or get a price quotation?

A: For an accurate quotation and the right samples, please provide us with details about your project. Key information includes technical specifications, intended application, and required functions. For the fastest service, providing artwork or a drawing (AI format is ideal) is highly recommended. We are happy to offer free samples for your evaluation.

Q3: How do you guarantee product quality and reliability?

A: Quality is our highest priority. Every component we manufacture undergoes a rigorous 100% electrical and mechanical testing process before shipment. This ensures that all our products meet the highest standards for performance, durability, and reliability.

Q4: What files are required for a PCB or PCBA quotation?

A: To provide an accurate quote, please supply the following:

For PCB Quotation: Gerber data/files along with any related technical requirements or special instructions.

For PCBA Quotation: Gerber data/files, a detailed Bill of Materials (BOM), and any testing procedures if functional testing is required.

Q5: How are the electronic components packaged for shipping?

A: We ensure our products are protected during transit. Components are packaged securely in anti-static bags or tape-and-reel formats, then cushioned with air bubble film inside a sturdy inner box and a durable outer shipping carton.
