Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-3299
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

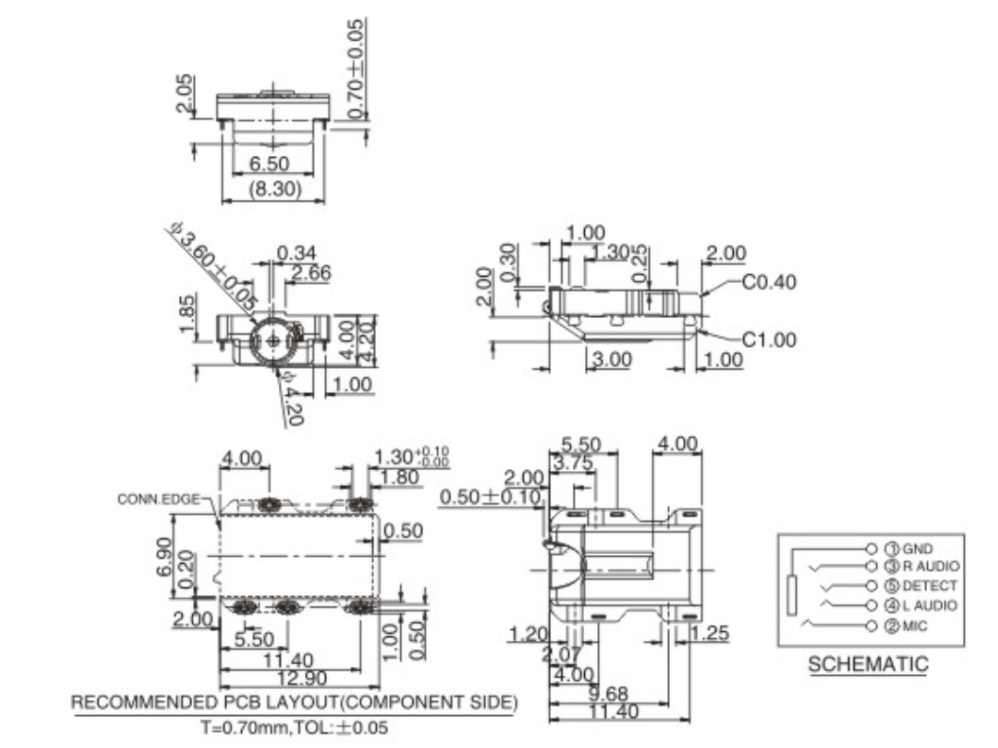

| Dimension | 11.40mm*6.90mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
Getac T800 G2 Fully Rugged Tablet Headphone Jack's Product Operating Principle
Upon insertion of a TRRS plug, four distinct electrical contacts for the tip, two rings, and sleeve are engaged.
These contacts establish separate channels for left and right stereo audio, a microphone input, and a common ground.
The jack's design ensures a secure fit, maintaining consistent contact for flawless audio and voice transmission.
Masimo Radical-7 Pulse CO-Oximeter Headphone Jack's Product Functions
Establishes a standard audio interface for connecting headphones, headsets, and auxiliary audio devices.
Ensures high-fidelity signal transmission with a low contact resistance of 50mΩ maximum for clear audio.
Its low-profile SMT design enables automated assembly and saves valuable space in compact electronic products.
Guarantees device safety and durability with a high dielectric strength of AC500V, preventing electrical shorts.
iFi Audio GO blu portable DAC/amp Headphone Jack's Product Applications
Industrial: In the Getac T800 G2 Fully Rugged Tablet, this jack provides a dependable connection for rugged headsets, enabling clear communication for workers in demanding field conditions.
Medical: The Masimo Radical-7 Pulse CO-Oximeter uses this connector for attaching external audio devices, allowing for clear and private audible alarm notifications in a clinical setting.
Domestic: This component is essential in the iFi Audio GO blu portable DAC/amp, offering a high-quality 3.5 mm audio connection for audiophile-grade headphones, enhancing the personal audio experience.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.
Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.
Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
