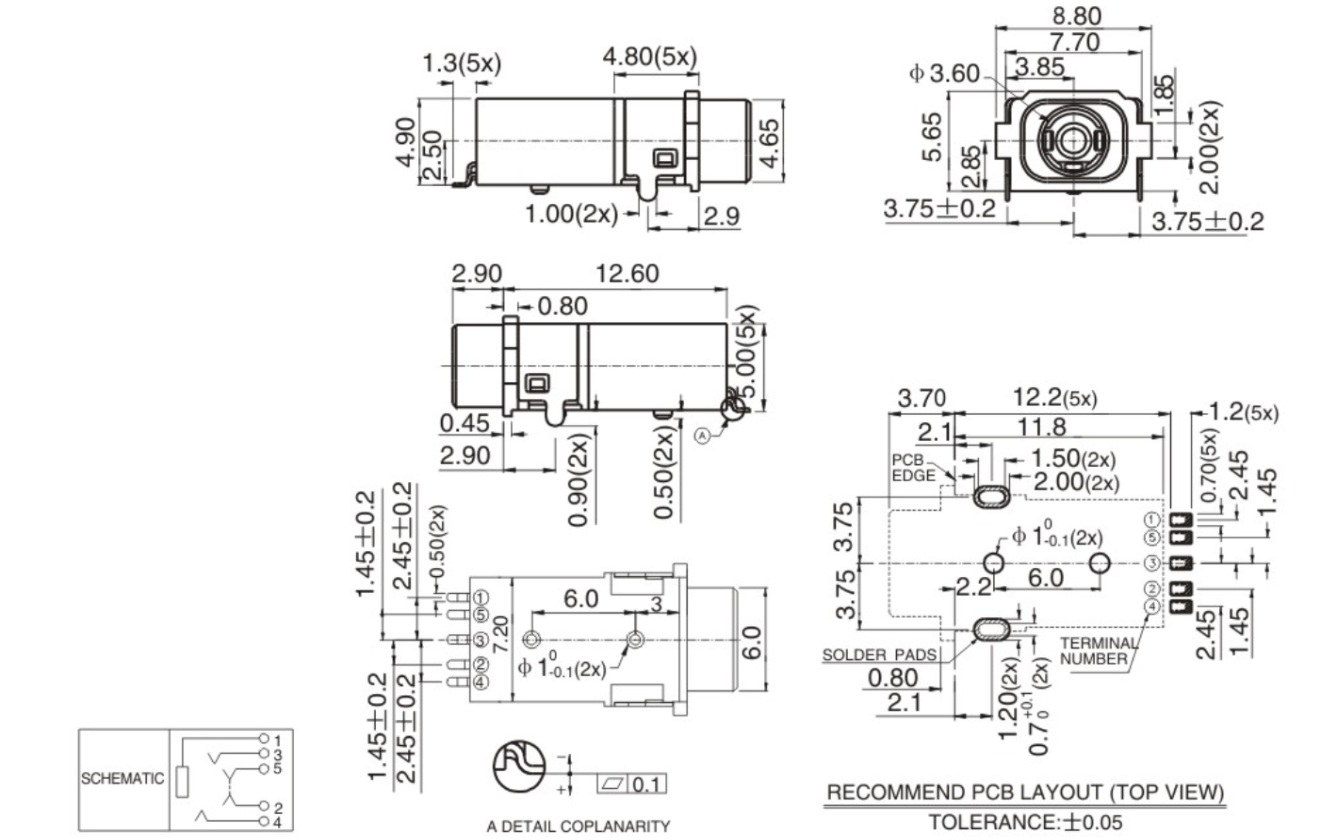

5P Waterproof 3.5mm DIP Audio Headphone Jack丨PJ-9339

iFi Zen CAN Signature Headphone Amplifier Headphone Jack's Product Operating Principle

1. Secure PCB Mounting: The through-hole pins are soldered directly into the PCB, creating an exceptionally strong 3.5 audio jack connection that withstands mechanical stress.

2. Signal Transmission: When a plug is inserted, internal contacts establish a secure connection, ensuring clear and stable stereo audio transmission.

3. Durable Performance: Engineered for a long operational life, the mechanism is rated for a minimum of 5,000 insertion and removal cycles, guaranteeing consistent reliability.

Behringer HA400 Microamp Headphone Amplifier Headphone Jack's Product Functions

1. Maximum Stability: The DIP mounting style provides excellent mechanical strength, making it perfect for frequently used ports or devices subject to physical strain.

2. Stereo Audio Interface: Delivers a standard port for a reliable 3.5 mm audio jack connection to headphones, auxiliary cables, and other audio peripherals.

3. Long-Term Reliability: Built to endure 5,000 cycles with a secure operating force of 3-30N, making it a dependable choice. Every 3.5 mm jack pin is designed for a solid solder joint.

4. High-Fidelity Sound: Ensures a clean signal path with a low contact resistance of 50mΩ (Max) for optimal audio performance.

Amplivox 270+ Diagnostic Audiometer Headphone Jack's Product Applications

1. Domestic Hi-Fi: Integrated into the iFi Zen CAN Signature Headphone Amplifier, where its robust through-hole design provides a durable front-panel connection for high-end headphones.

2. Industrial Audio: Used in the Behringer HA400 Microamp Headphone Amplifier, providing four durable output jacks that can withstand constant use in a studio or workshop environment.

3. Medical Diagnostics: Serves as the primary audio port on the Amplivox 270+ Diagnostic Audiometer, where the secure 3.5 mm audio jack connection is critical for connecting patient headphones during hearing tests.
