IP67 3.5mm SMD Earphone Jack丨PJ-9465
  • IP67 3.5mm SMD Earphone Jack丨PJ-9465

IP67 3.5mm SMD Earphone Jack丨PJ-9465

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-9465


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

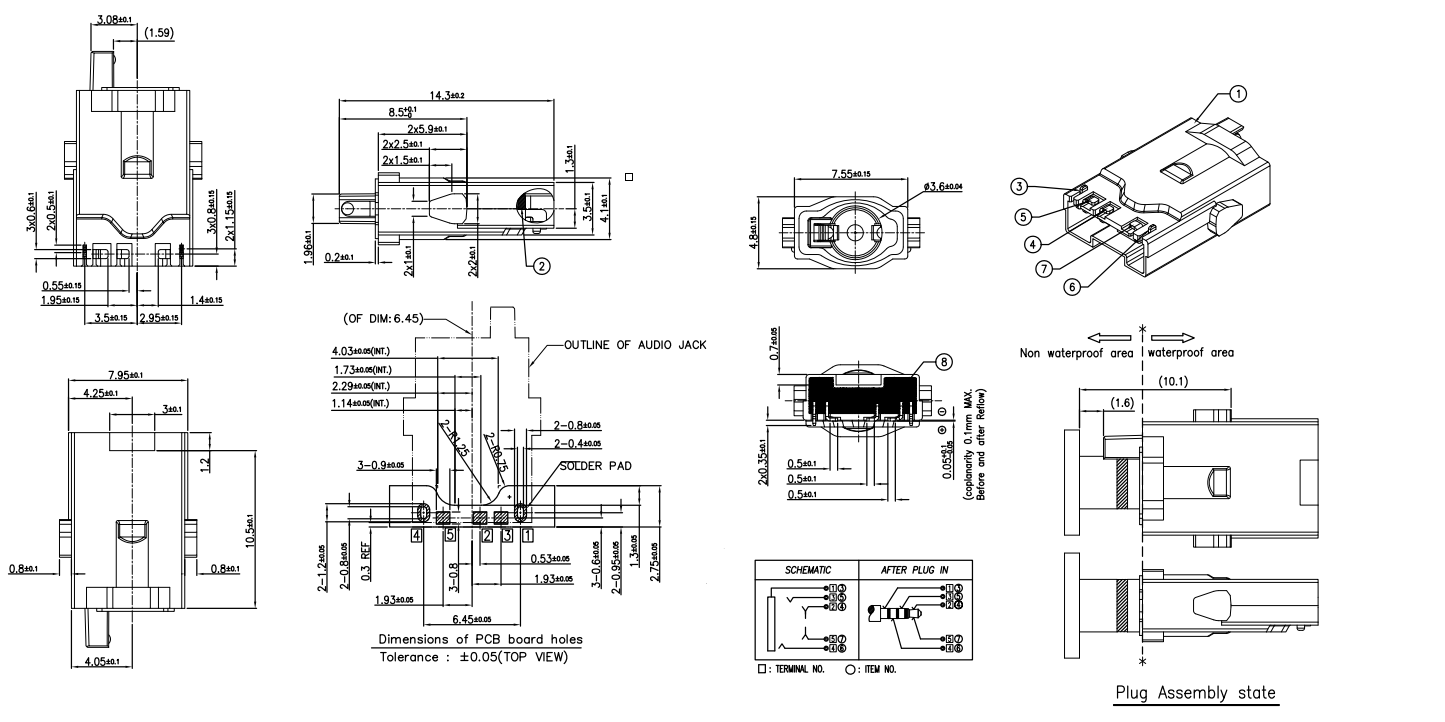

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension14.30mm*7.95mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


GoPro HERO10 Black camera with Media Mod Headphone Jack's Product Operating Principle



  1. Environmental Sealing: A robust seal protects the internal contacts from moisture and dust, ensuring the integrity of the 3.5 mm headphone port and providing a clean electrical connection.

  2. Signal Integrity: It routes stereo audio signals through high-conductivity contacts with a low resistance of 50mΩ (Max), preserving excellent sound quality when a plug is inserted.

  3. Durable Mechanism: Built for a long service life, the jack is rated for a minimum of 5,000 insertion and removal cycles, guaranteeing consistent performance.


Trimble GFX-750 display system for precision farming Headphone Jack's Product Functions



  1. Waterproof Audio Interface: Provides a sealed audio port, protecting sensitive internal electronics from water, dust, and other contaminants.

  2. Stereo Sound Connection: Delivers a standard port for stereo headphones and auxiliary cables, serving as a versatile 3.5 millimeter jack for various audio needs.

  3. Efficient SMD Mounting: The surface-mount design allows for streamlined, automated manufacturing and saves valuable space on the PCB.

  4. Robust Build: Engineered to withstand 5,000 cycles with a secure operating force of 3-30N, it's perfect for ruggedized products.


Invacare Platinum Mobile Oxygen Concentrator Headphone Jack's Product Applications



  1. Domestic Recreation: Integrated into the GoPro HERO10 Black camera with Media Mod, providing a weather-resistant external microphone input for high-quality audio recording in outdoor conditions.

  2. Industrial Agriculture: Used in the Trimble GFX-750 display system for precision farming, offering a sealed audio jack 3 5mm for audible alerts and instructions inside a tractor cab.

  3. Medical Mobility: Serves as the primary audio connection on the Invacare Platinum Mobile Oxygen Concentrator, ensuring the headphone port remains functional and protected from splashes during patient transport.

PJ-9465

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1: Why should we choose KKG Electronics as our component supplier?

A: Partnering with KKG offers several key advantages:

Manufacturing Excellence: With 15+ years of experience, we have the technical expertise to deliver reliable and consistent electronic components.

Competitive Value: We provide premium-quality products at competitive factory-direct prices, ensuring you get the best value without compromising on performance.

Custom OEM/ODM Solutions: Our team excels at providing comprehensive OEM & ODM services, tailoring components to meet your exact product specifications.

Dedicated Customer Support: Our commitment extends beyond the sale with responsive, professional support to ensure your complete satisfaction.



Q2: What is your typical turnaround time for a quotation?

A: Once we receive all the necessary product details and technical files, you can expect to receive a comprehensive quotation from our team within 24 hours.



Q3: What is your standard lead time for production orders?

A: Our standard production lead time is typically 2-3 weeks for most orders. Lead time can vary based on the specific component, order volume, and any customization requirements. We will always confirm the delivery schedule before you place an order.



Q4: Can you create custom molds or modify existing component designs?

A: Absolutely. We specialize in custom engineering solutions. Our experienced team can develop new molds for unique components or modify existing designs to meet specific requirements like uncommon terminals or unique form factors. Contact us to discuss your project forecast, end-product, and design goals in detail.



Q5: What payment methods do you accept?

A: We offer flexible payment options to suit your needs. For bulk production orders, we accept T/T (Telegraphic Transfer). For sample orders or smaller quantities, payment can be conveniently remitted via PayPal.
