IP67 3.5mm SMD Headphone Port丨PJ-9501
  • IP67 3.5mm SMD Headphone Port丨PJ-9501

IP67 3.5mm SMD Headphone Port丨PJ-9501

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-9501


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

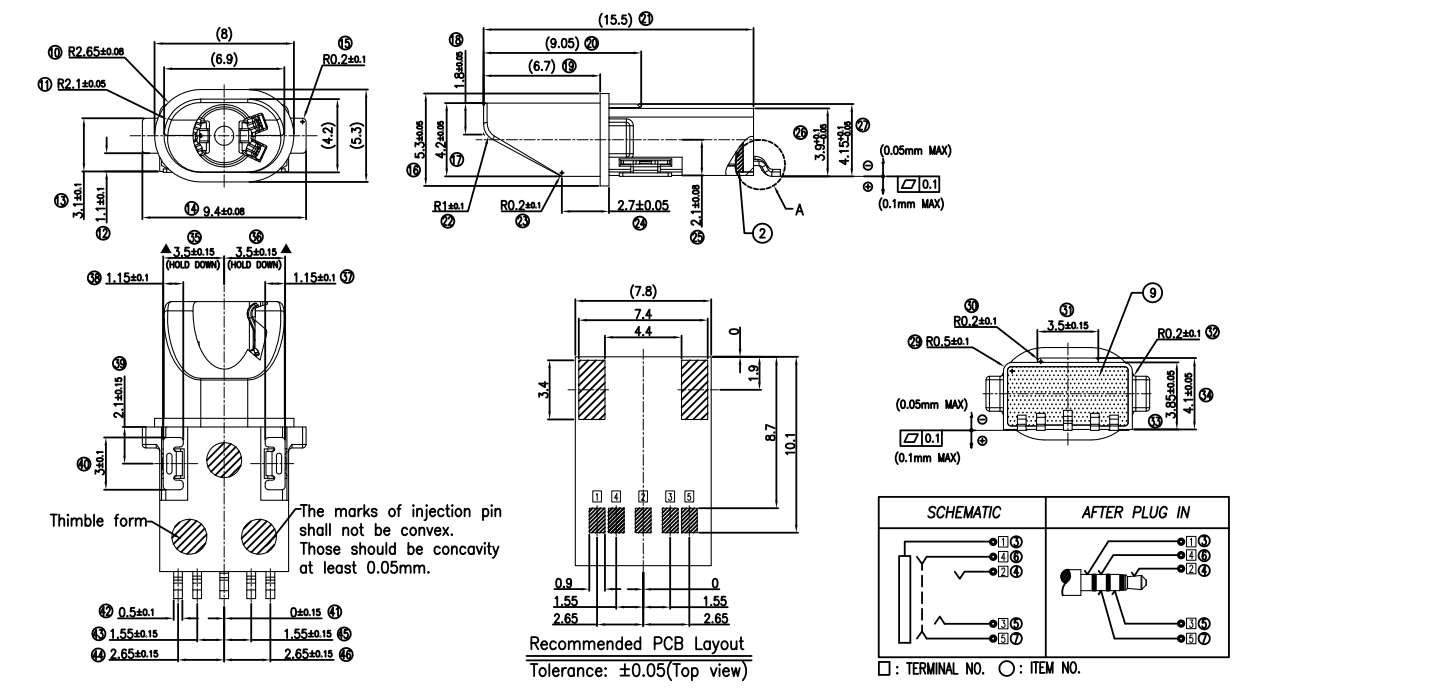

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension15.50mm*8.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Ultimate Ears WONDERBOOM 3 Portable Speaker Headphone Jack's Product Operating Principle



  1. Environmental Protection: A durable seal protects the internal contacts from water and dust, ensuring a clean electrical connection for any standard 3.5 mm trs plug.

  2. Signal Fidelity: It routes stereo audio signals through its low-resistance contacts (50mΩ Max), preserving high-quality sound and ensuring a clear connection.

  3. Long-Term Durability: Engineered for a minimum of 5,000 insertion/removal cycles, it guarantees consistent performance over the product's lifespan.


Cat S62 Pro rugged smartphone Headphone Jack's Product Functions



  1. Waterproof Design: Provides a sealed audio interface, protecting sensitive electronics from moisture and environmental contaminants.

  2. Stereo Audio Connection: A versatile 3 5mm headphone jack that delivers a standard port for stereo headphones and auxiliary cables.

  3. SMD for Automation: The surface-mount design allows for efficient, high-volume automated manufacturing, saving valuable PCB space.

  4. Robust Performance: Built to withstand 5,000 cycles with a secure operating force of 3-30N, making it ideal for ruggedized products


Mindray M9 Premium Ultrasound System Headphone Jack's Product Applications



  1. Domestic Recreation: Integrated into the Ultimate Ears WONDERBOOM 3 portable speaker, where its sealed design helps maintain the device's IP67 waterproof and dustproof rating.

  2. Industrial Fieldwork: Used in the Cat S62 Pro rugged smartphone, offering a durable, waterproof audio output that can withstand harsh worksite conditions.

  3. Medical Ultrasound: Serves as the primary audio port on the Mindray M9 Premium Ultrasound System, ensuring this critical 3 5mm headphone jack remains functional and protected from accidental spills in a clinical setting.

PJ-9501

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1: What is your typical production lead time?

A: For most standard orders, our production lead time is approximately 2 to 3 weeks. This can vary based on order volume, component complexity, and current capacity. We will always provide a confirmed delivery timeline with your order.



Q2: What is your policy on small volume orders?

A: We support projects of all scales, from startups to large-scale production. While we can accommodate smaller orders (e.g., 1,000-2,000 pcs), please note that larger volumes typically provide greater cost efficiency in terms of unit price and shipping charges.



Q3: Do you offer custom design and tooling services?

A: Yes, custom engineering is a core strength at KKG Electronics. Our R&D team is fully equipped to develop new tooling for unique components or execute application-specific modifications to our existing product lines. Let's discuss your design goals.



Q4: What file formats are needed for a technical quotation?

A: To ensure accuracy, please provide the following files:

For PCB Quotations: Gerber files and a document detailing all technical requirements.

For PCBA Quotations: Gerber files, a complete Bill of Materials (BOM), and any specific function test procedures.

For Custom Components: CAD files or AI format artwork are preferred.
