Home > Products > 3.5 Headphone Jack > Waterproof 5P 3.5mm SMD Audio Jack丨PJ-9509
Waterproof 5P 3.5mm SMD Audio Jack丨PJ-9509
  • Waterproof 5P 3.5mm SMD Audio Jack丨PJ-9509

Waterproof 5P 3.5mm SMD Audio Jack丨PJ-9509

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-9509


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

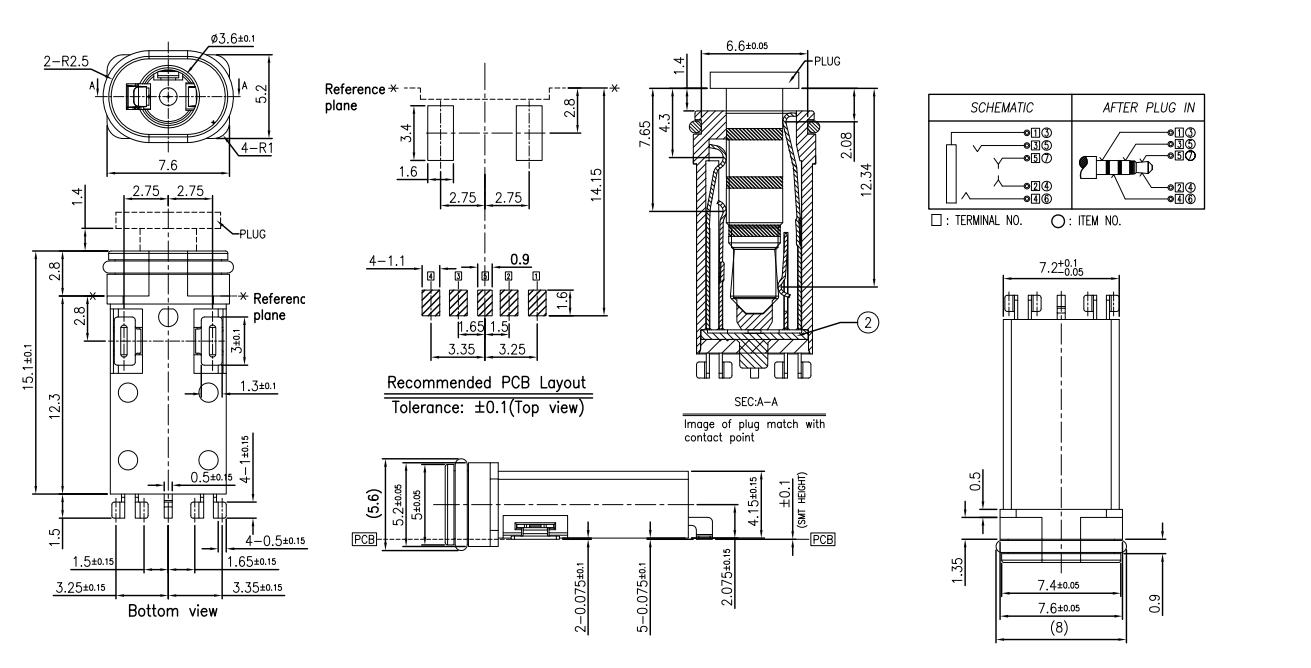

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension15.10mm*7.20mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Midland T77VP5 X-TALKER Two-Way Radio Headphone Jack's Product Operating Principle



  1. Environmental Seal: A robust seal protects the internal contacts from moisture and dust, ensuring the integrity of the connection when a standard jack trs 3.5 mm plug is inserted.

  2. Signal Fidelity: It routes stereo audio signals through high-conductivity contacts with a low resistance of 50mΩ (Max), preserving excellent sound quality and signal clarity.

  3. Durable Mechanism: Built for a long service life, the jack is rated for a minimum of 5,000 insertion and removal cycles, guaranteeing consistent performance.


Zebra L10ax Rugged Tablet Headphone Jack's Product Functions



  1. Waterproof Interface: Provides a sealed audio port, protecting sensitive internal electronics from water, dust, and other contaminants.

  2. Stereo Sound Connection: Delivers a standard port for stereo headphones and auxiliary cables, creating a reliable 3.5 mm audio jack connection.

  3. Efficient SMD Mounting: The surface-mount design allows for streamlined, automated manufacturing and saves valuable space on the PCB. Each 3.5 mm jack pin is designed for a perfect solder joint.

  4. Robust Build: Engineered to withstand 5,000 cycles with a secure operating force of 3-30N, it's perfect for ruggedized products


Mindray M7 Premium Ultrasound System Headphone Jack's Product Applications



  1. Domestic Recreation: Integrated into the Midland T77VP5 X-TALKER Two-Way Radio, providing a weather-resistant port for connecting a headset during outdoor activities like hiking or camping.

  2. Industrial Fieldwork: Used in the Zebra L10ax Rugged Tablet, offering a sealed audio output that can withstand dust, water, and drops in a demanding industrial worksite.

  3. Medical Environment: Serves as the primary audio port on the Mindray M7 Premium Ultrasound System, ensuring the critical jack trs 3.5 mm remains functional and protected from accidental spills in a clinical setting.

PJ-9509

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1:Are you a factory or trade company?

A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.



Q2:Why should we choose your company?

A:1.Porfessional manufacture with more than 15 years experience in producing various of switches.

    2.Good quality, competitive price and fast delivery time.

    3.OEM/ ODM Service provided to clients.

    4.The best after-sale service.



Q3: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

    For example, what are the functions you need? The specification of it and which finished products will be used with it?

    It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

    We could provide the free samples to you.



Q4.How about the delivery time?

A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.



Q5:How do you package the goods?

A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
