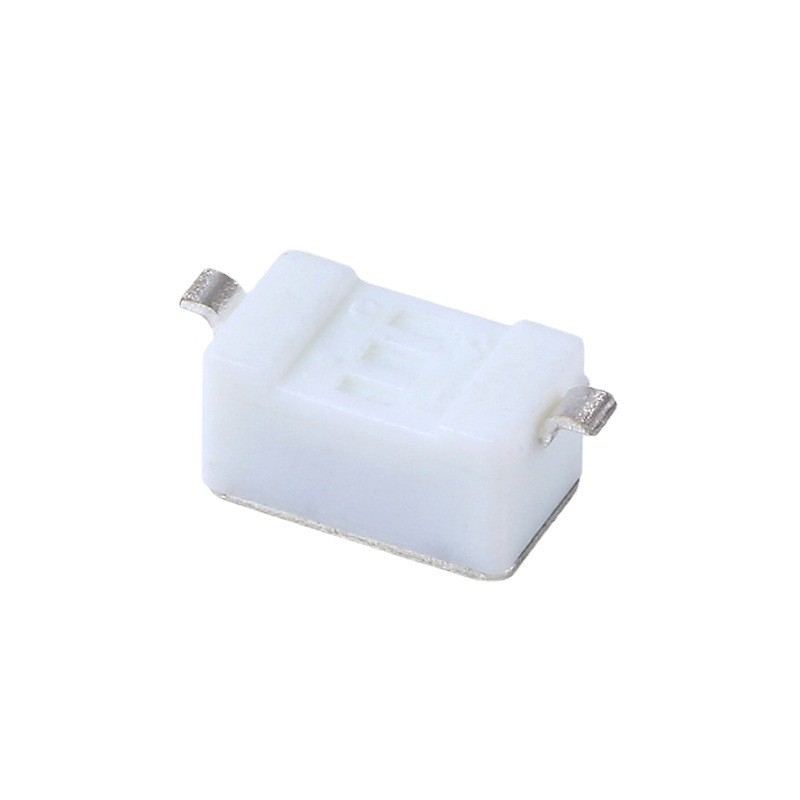

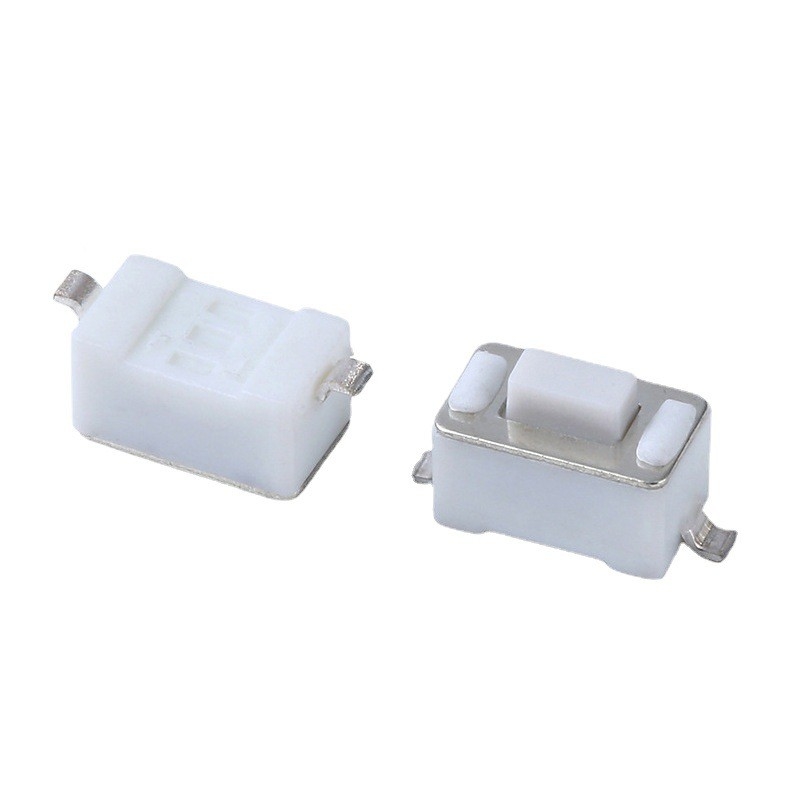

3*6 SMD Tact Switch

3×6 SMD Tactile Switches play an important role in electronic equipment with its unique structural features and working principle. With their compact structure, easy operation, stable and reliable performance, they are widely used in various electronic devices, such as remote controls, digital products, audio-visual equipment, etc.

3*6 Tact Switches' Structural Characteristics

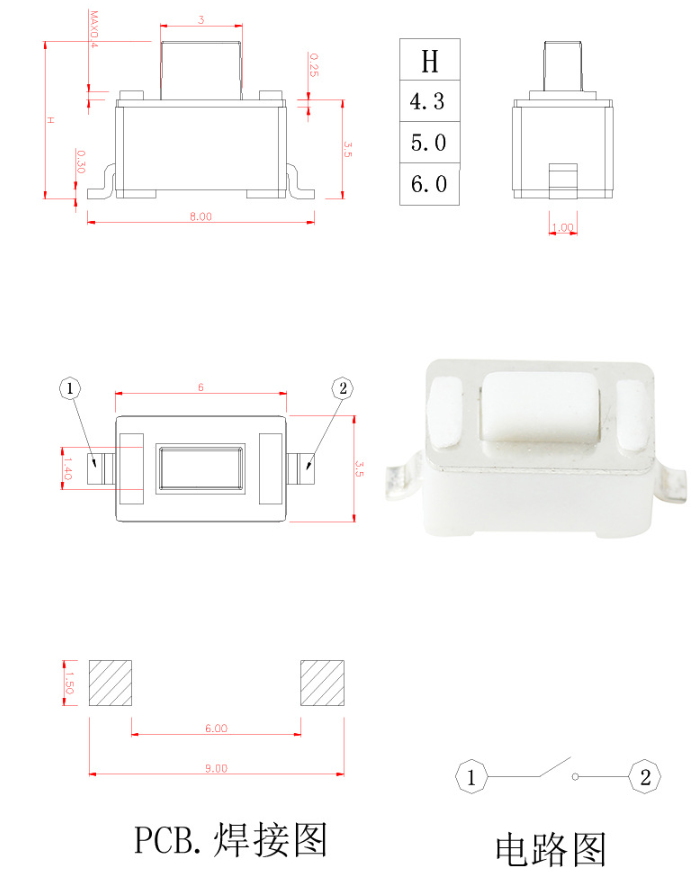

Size and Package: The size specification of 3×6 SMD Tactile Switch usually refers to its length and width, while the SMD package indicates that the switch adopts the surface mount technology, which can be directly soldered on the surface of the circuit board to save space and improve production efficiency.Main Components:

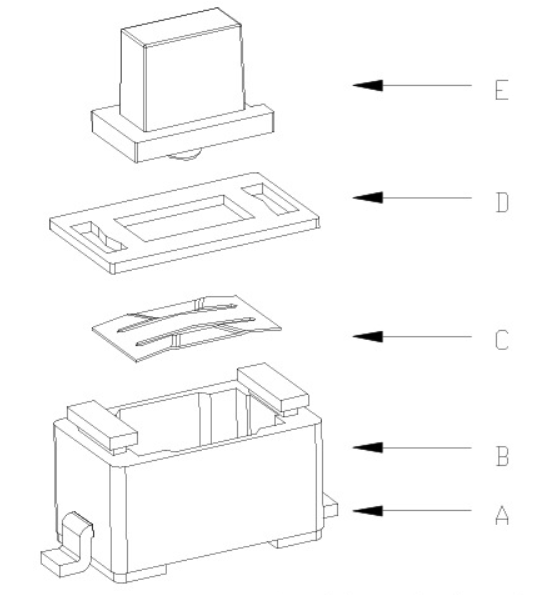

Enclosure: Protects the internal components from the external environment.

Pushbutton: The user-operated part that triggers the switch action by pressing the pushbutton.

Shrapnel: The key component of the switch, responsible for deformation when the button is pressed to energize the circuit.

Solder tabs (contacts): the part in contact with the tabs, used to transmit electrical signals.

Pin: The part of the switch that connects to the circuit board, usually two pins in a group for transmitting electrical signals and one pin for grounding.

3*6 SMD Tact Switches' Features

Three button colors, blue, white and black

Compact structure, suitable for high density circuit board layout.

Good waterproof and dustproof function to protect the internal components from the external environment.

The contact material has good abrasion resistance and corrosion resistance to extend the service life of the switch.

3*6 Tactile Switch's Working Principle

Initial state: In the initial state, the shrapnel and soldering piece (contact) of the 3×6 SMD flick switch are in the disconnected state, and the circuit does not conduct.

Pressing the button: When the user gently presses the switch button, the button exerts a force downward, causing the shrapnel to deform under the external force. The shrapnel deforms and comes into contact with the solder lugs (contacts), causing the two pins of the switch to conduct, thus creating a circuit path. This process is fast and accurate, providing the user with clear and consistent feedback of the operation.

Push Button Release: When the user releases the push button, the tabs return to their original shape under their own elasticity, breaking contact with the tabs (contacts) and closing the circuit.
