3x6 Side Tact Switch With Bracket

3*6 Side Press Tactile Switch with Bracket is characterized by compact structure, good stability, easy operation and excellent electrical performance, so it is widely used in a variety of occasions that require high-density installation and stable electrical connection, such as cell phone communications, office equipment, medical equipment, cell phone accessories, etc.

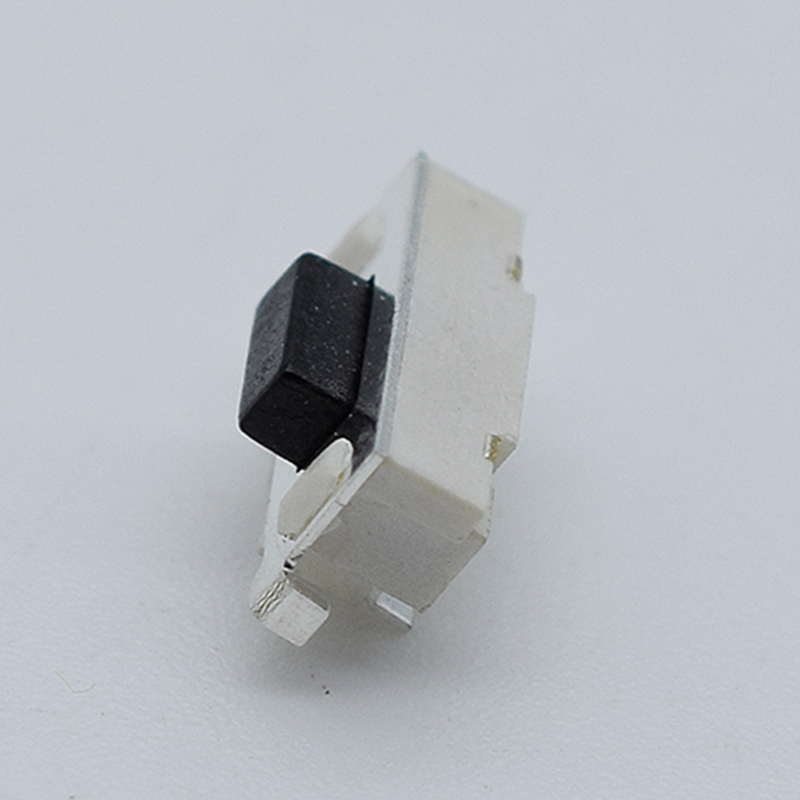

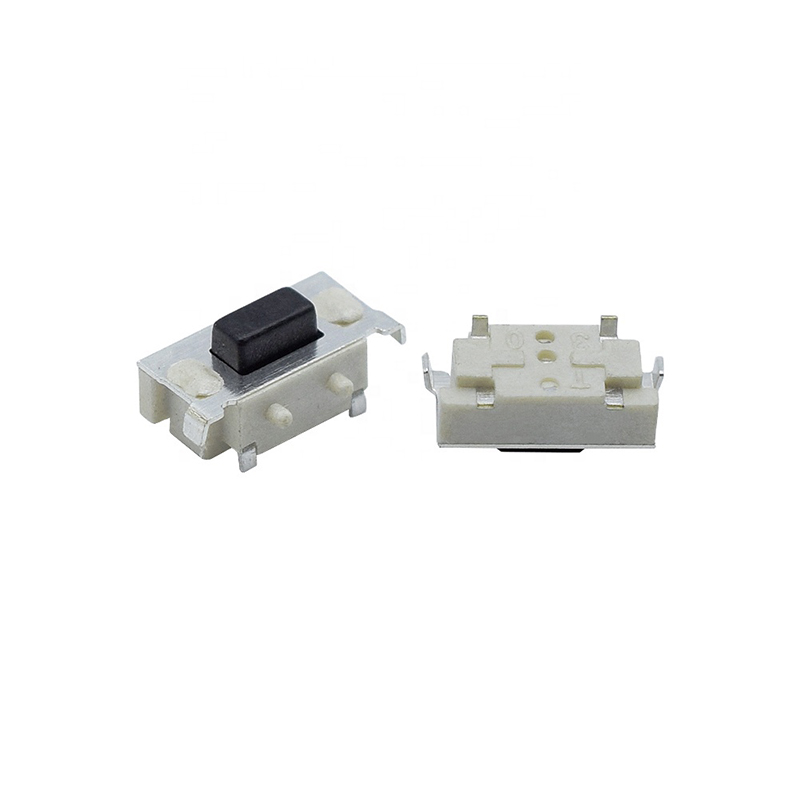

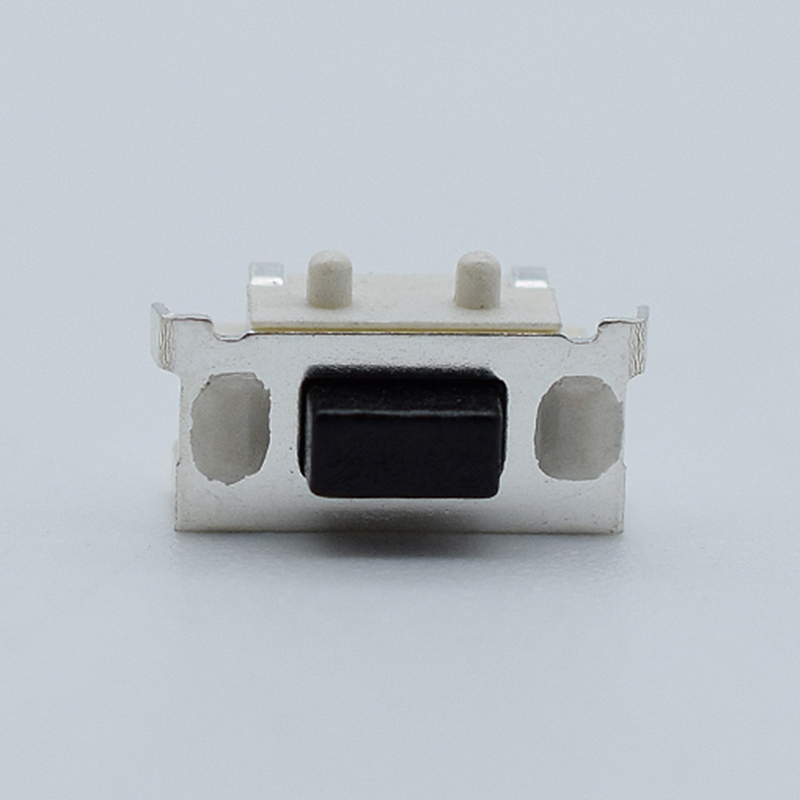

3*6 Tact Switches' Show

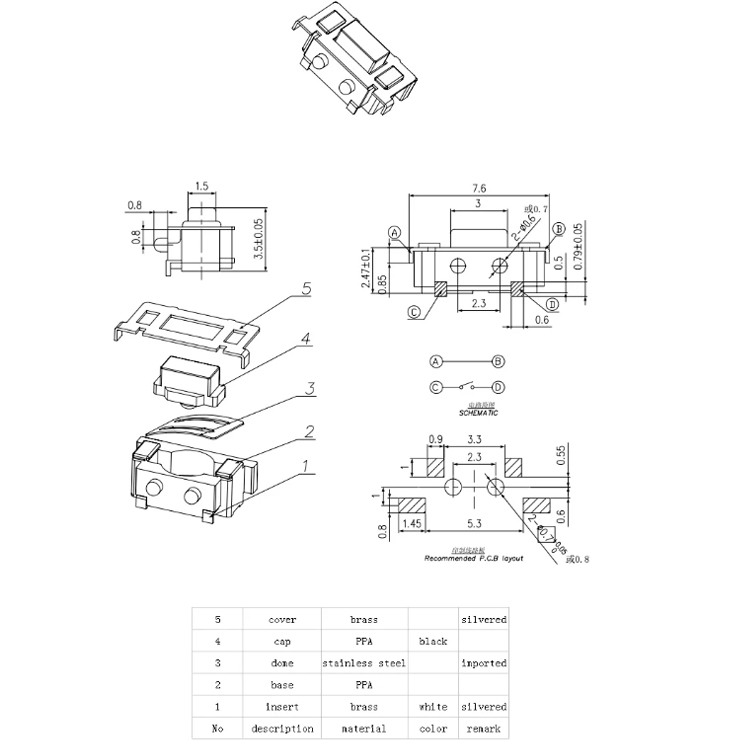

3x6 Tact Switches' Dimensions & Appearance

The switch's length, width, and height dimensions are 7.3mm, 3.6mm, and 4.3mm or 5.0mm respectively (height may vary by model).

The overall structure is compact and suitable for high-density installation.

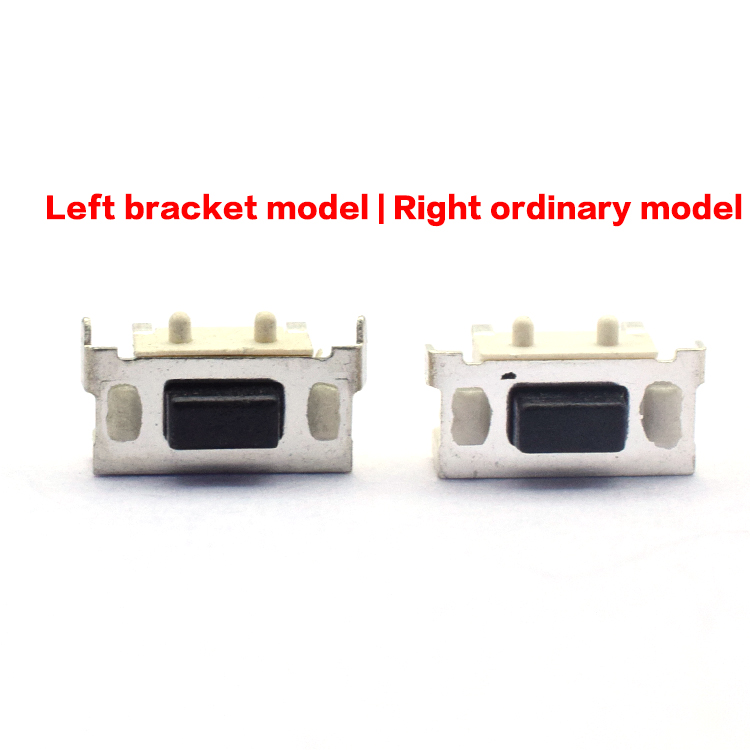

Bracket Design

The tact switch comes with a bracket, and this design makes the switch very strong and less likely to wobble when soldered to the product.

The presence of the bracket also increases the stability and durability of the switch.

Side press operation

The switch has a side press operation, which allows the user to easily trigger the switch with a comfortable feel.

3*6 Tactile Switches' Electrical Performance

Switches typically have low contact resistance, with a maximum contact resistance of no more than 100 mΩ.

Insulation resistance is high, generally reaching 100MΩ min. or more.

The dielectric strength usually meets the test requirements of 250V AC for 1 min.

The rated current and voltage may vary from model to model, but a common rated current is 50mA and rated voltage is 12V DC.

3*6 Tap Switches' Features

Switches are typically packaged in braided tape for easy installation and use in automated production lines.

The operating temperature range is wide, generally capable of normal operation in environments ranging from -30°C to +85°C.

The switches are highly reliable, and the electrically sealed structure ensures the stability and safety of the electrical connection.
