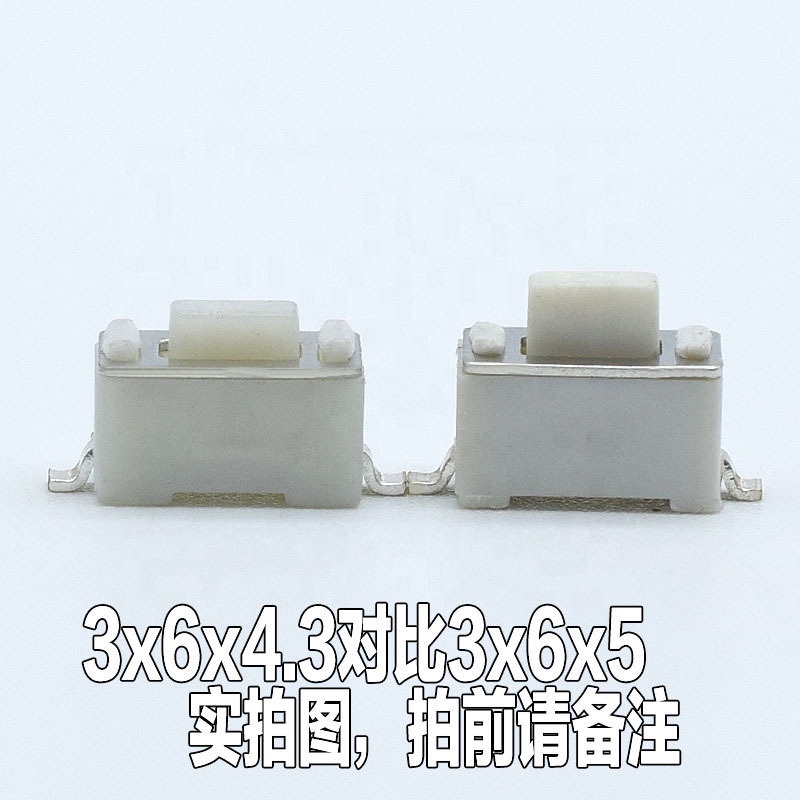

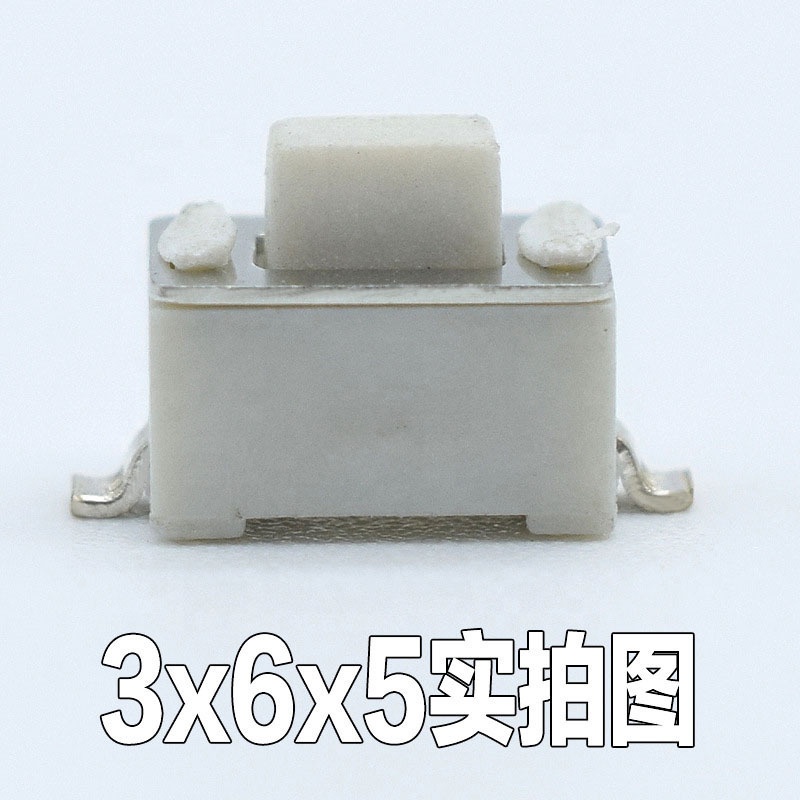

3*6 Right Angle Tact Switch

3*6 light touch SWITCHes of different specifications

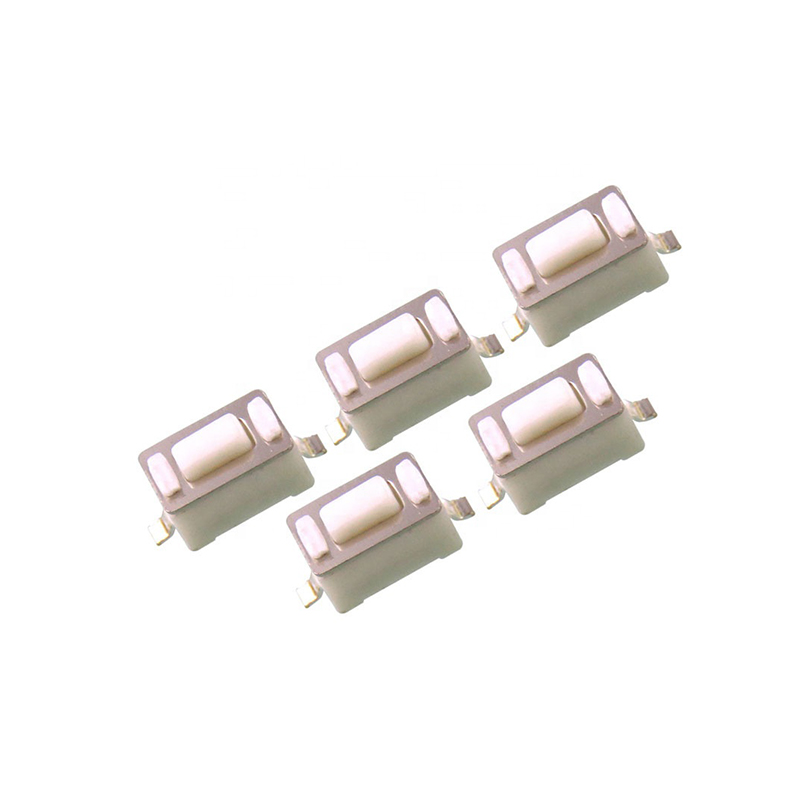

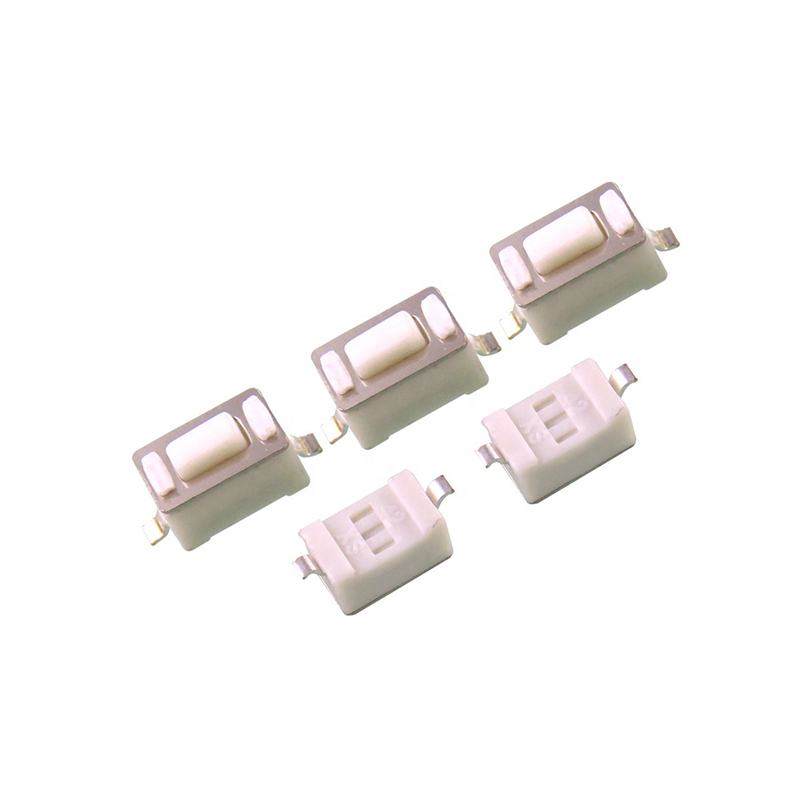

3x6 SMD Tactile Switch' Feature

Vertical and right angle designs

Three foot designs：2P DIP,2P SMD,2P U-Foot

Three color of  keys: black white and blue

Size and package: Its size is compact, suitable for high-density circuit board layout, and SMD packaging technology, can be directly welded on the circuit board to improve production efficiency.

Contact structure: The internal contacts are usually made of metal with good conductivity and wear resistance to ensure the long-term stable operation of the switch.

Operation mode: The on/off circuit can be realized by gently touching the surface of the switch, which is easy and quick to operate.

SMD Tact Switch's Working Principle

When the switch is pressed, the internal contacts will contact each other, thus making the circuit conductive; when the switch is released, the contacts are separated and the circuit is broken. This working principle enables the 3×6 SMD TAP SWITCH to realize precise control of the circuit.

Basic Definition of 2P 3*6 Tact Switch

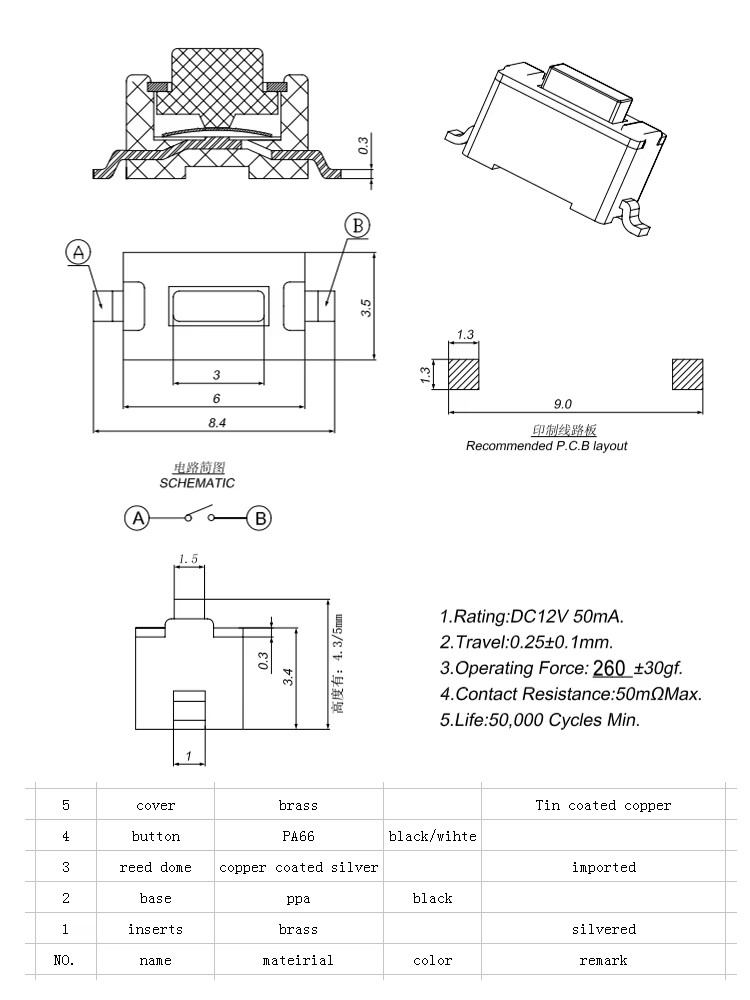

3×6 SMD TAP SWITCH is a light touch switch with a size of 3mm×6mm in a surface mount technology (SMD) package. This kind of switch can realize the on-off of the circuit by lightly touching, and is widely used in various electronic devices.

Performance indicators of 3*6 Tap Switch

Rated voltage and current: Usually select the appropriate rated voltage and current values according to the specific application scenarios.

Operating life: the number of operations the switch can withstand under normal use conditions, generally up to hundreds of thousands of times or more.

Contact resistance: refers to the resistance value encountered by the current passing through the contacts when the contacts are closed, usually the smaller the better is required.

Insulation resistance: refers to the resistance value between the contacts and between the contacts and the shell when the switch is in the disconnected state, which is used to evaluate the insulation performance of the switch.
