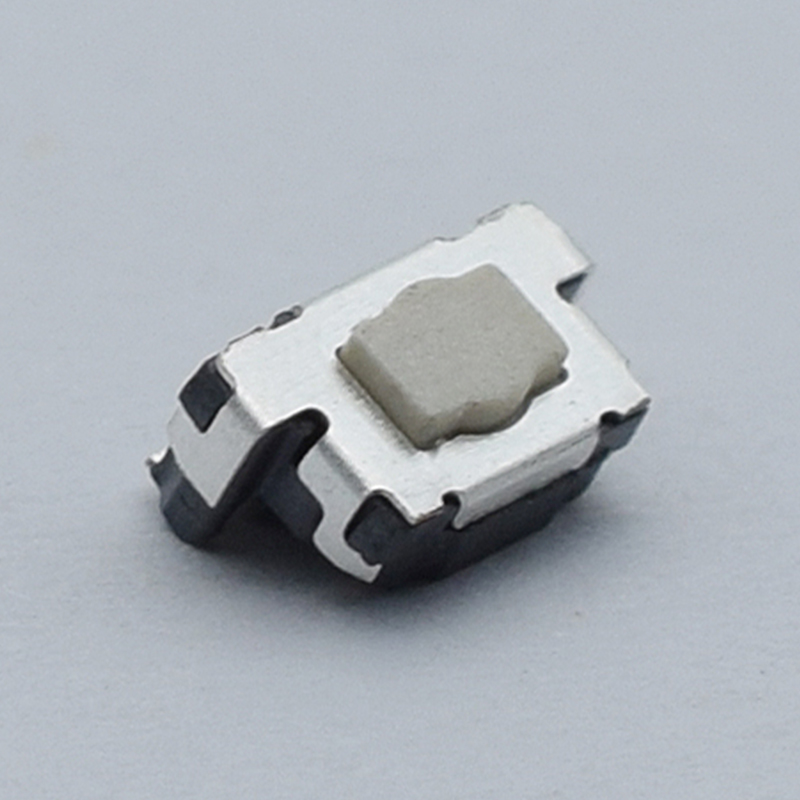

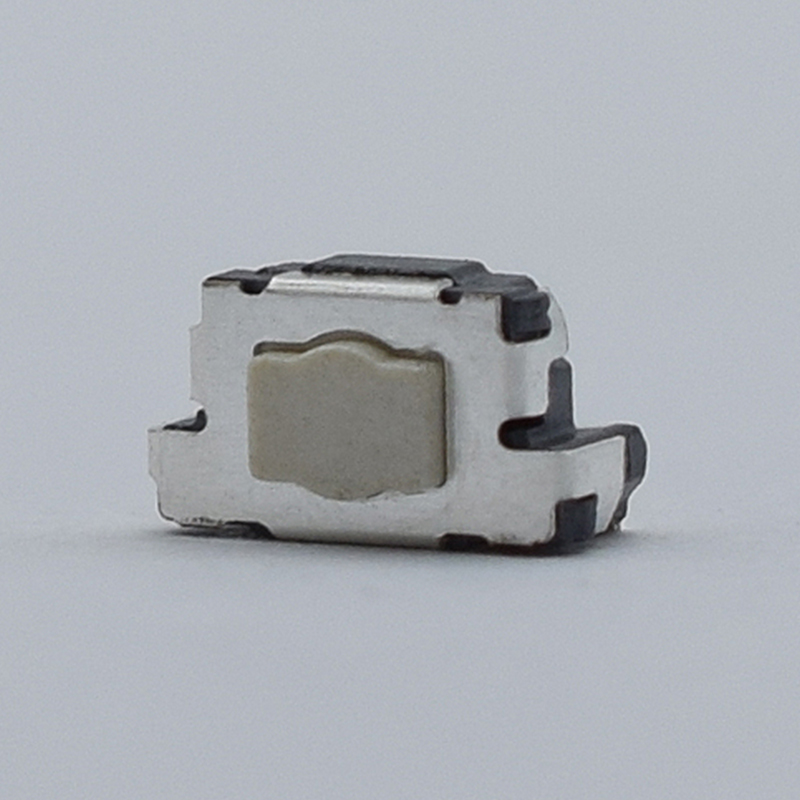

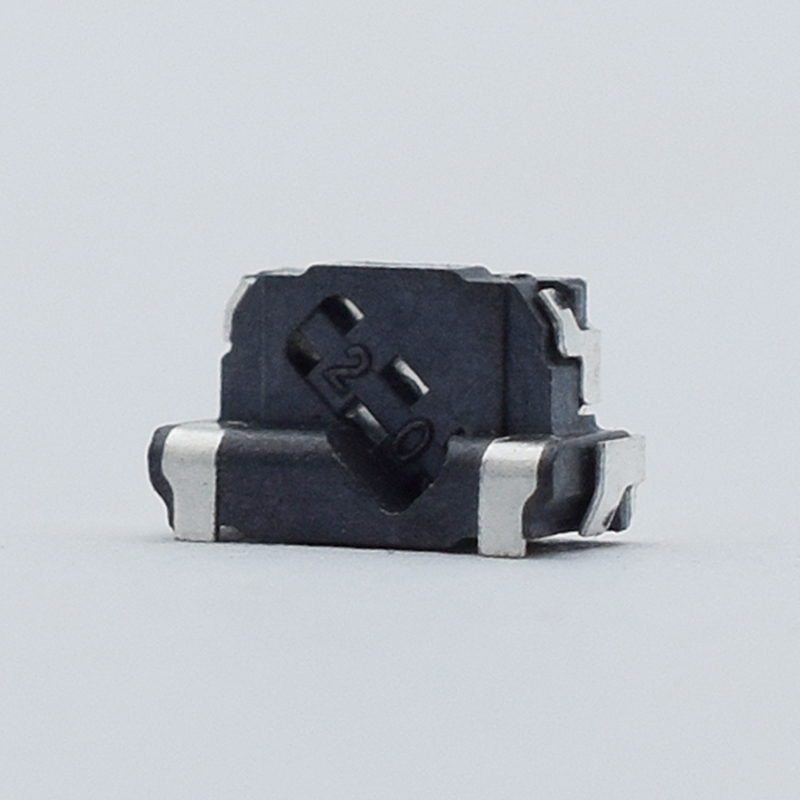

3*6 Countersunk Tact Switch

 Importance of dustproof structure design for Tact Switch

Dustproof structure design is crucial in engineering design, which can effectively reduce the wear and tear and malfunction of machines and equipment, and improve the reliability and service life of the equipment. For 3×6 countersunk light touch Switches, the dustproof structure can prevent dust and particles in the external environment from entering the internal switch, thus preventing the switch from malfunctioning or being damaged.

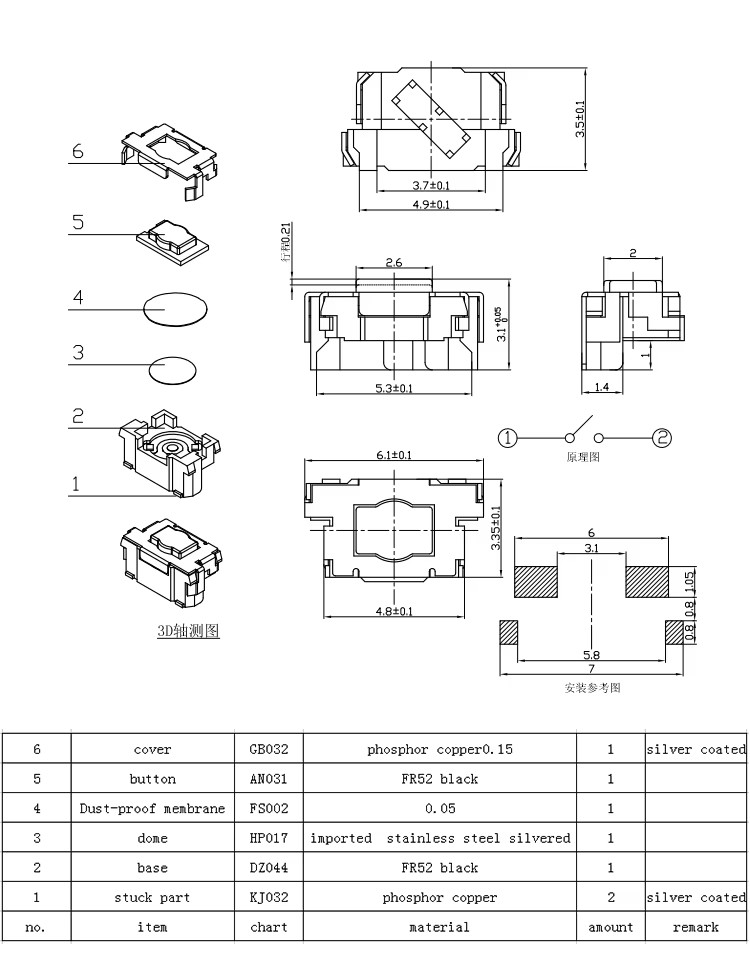

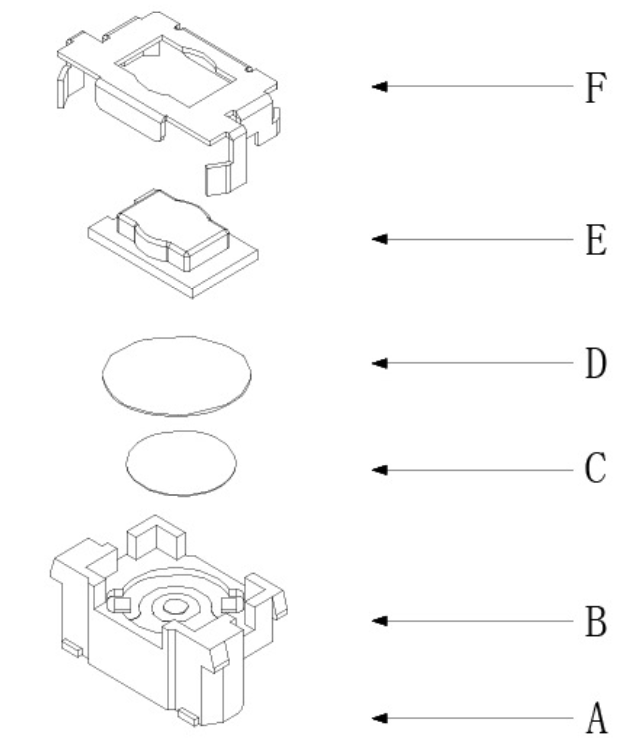

Main components of dustproof structure

The dustproof structure of 3×6 submerged plate tactile switches is mainly composed of the following components:

Cover: The cover is an important part to protect the internal mechanism of the switch, which is mostly made of metal and fixed on the base by riveting. The cover should be designed in such a way that it can completely cover the open part of the switch and prevent dust from entering.

Gasket: Between the cover and the base, a gasket is usually provided to enhance the dust protection effect. The choice of gasket material should take into account its elasticity, abrasion resistance and corrosion resistance to ensure long-term stable sealing performance.

Dust mesh or dust channel: In some models, a dust mesh or dust channel is designed to further enhance the dust protection effect. These structures are able to filter out larger dust particles and prevent them from entering the interior of the switch.

Material and process of dustproof structure of 3*6 Tact Switch

Material selection: The material of dustproof structure should have high wear resistance, high elasticity, corrosion resistance and good sealing performance. Commonly used materials include stainless steel, aluminum alloy and other metal materials, as well as silicone, polyimide film and other elastic materials.

Process treatment: The process treatment of dustproof structure includes surface coating, sealing treatment, elastic fixing and so on. Surface coating can enhance the wear resistance and corrosion resistance of the material; sealing treatment can ensure the complete sealing of the dustproof structure; elastic fixing can make the dustproof structure adapt to the movement and vibration of the equipment.

The practical application of 3*6 Touch Switch

The dustproof structure of 3×6 countersunk light touch switch has a wide range of application scenarios in practical application, such as:

Outdoor equipment: such as street light controllers, weather station sensors, etc., which need to be exposed to the outdoor environment for a long time, requiring the switch to have good dustproof performance.

Industrial equipment: such as automation equipment, industrial robots, etc., need to frequently touch the operation, and the working environment may exist dust, so the switch is required to have dustproof function.

Automotive electronics: such as car audio, navigation systems, etc., need to be used for a long time in the car, the switch is required to adapt to the high temperature, high humidity and possible dusty environment in the car.

Product Features

Size specification: The 3 * 6 size makes this switch suitable for various application scenarios, especially in situations where space is limited.

Sink head design: The sink head design is not only aesthetically pleasing, but also reduces the pressure on surrounding materials during operation of the switch, while avoiding accidental injuries caused by protruding switch heads.

On/off function: achieved through internal metal spring plates, it has reliable performance and a long service life.

3、 Application Fields

Digital products, such as mobile phones, tablets, etc., are commonly used with touch switches to control volume, power on/off, etc.

Security equipment: In security systems, touch switches can be used to trigger alarms, control cameras, etc.

Computers and communication products: Touch switches are commonly used in input devices such as computer keyboards and mice.

Household appliances, such as induction cookers, rice cookers, etc., use touch switches to control heating, insulation, and other functions.

Smart home and smart wearable products: Among these products, touch switches are commonly used to control switches, adjust brightness, etc.

4、 Selection and Precautions

Waterproof level: Select the appropriate waterproof level according to the application scenario to ensure the performance of the switch in humid environments.

Welding and installation: During the welding and installation process, ensure that all welding points of the switch are completely cold fixed, avoid touching or shaking the contact positions, and prevent the switch from loosening or deforming.

Button force: Avoid using excessive button force to prevent damage to the sensing spring inside the switch.

Current load: Select a switch with a current load size that meets the equipment requirements to avoid circuit overload.
