SMD 3*6 Tact Switch with Bracket

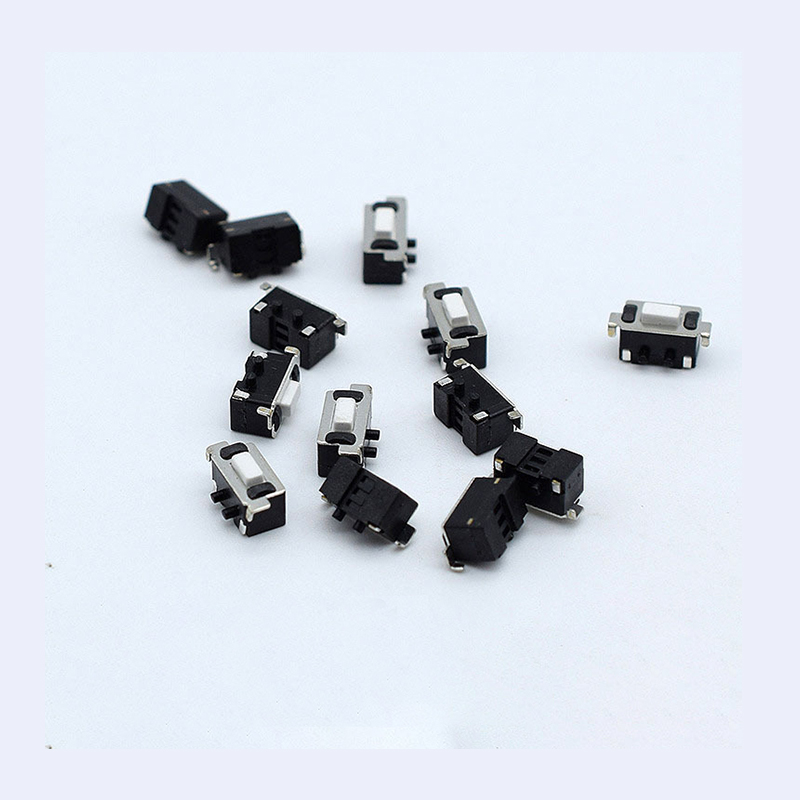

3×6 SMD flick switch Description

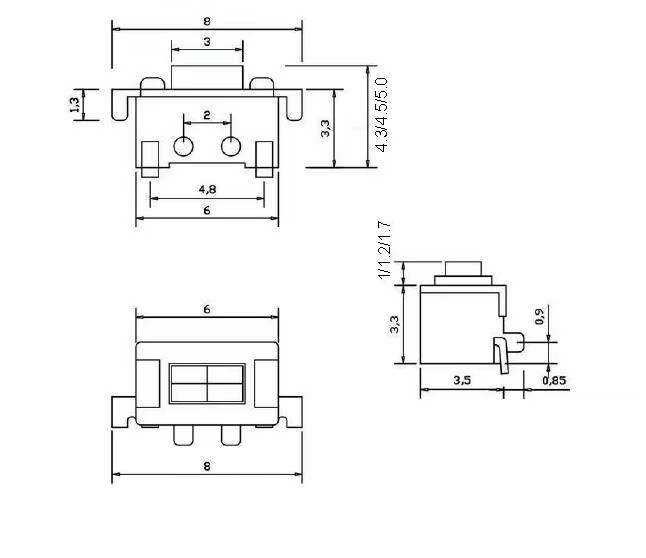

The dimensions of a 3×6 SMD flick switch usually refer to its length and width dimensions, which may vary slightly but roughly conform to the specifications of 3mm x 6mm. This compact size makes the switches ideal for use in space-constrained application scenarios, such as precision electronics and small devices.

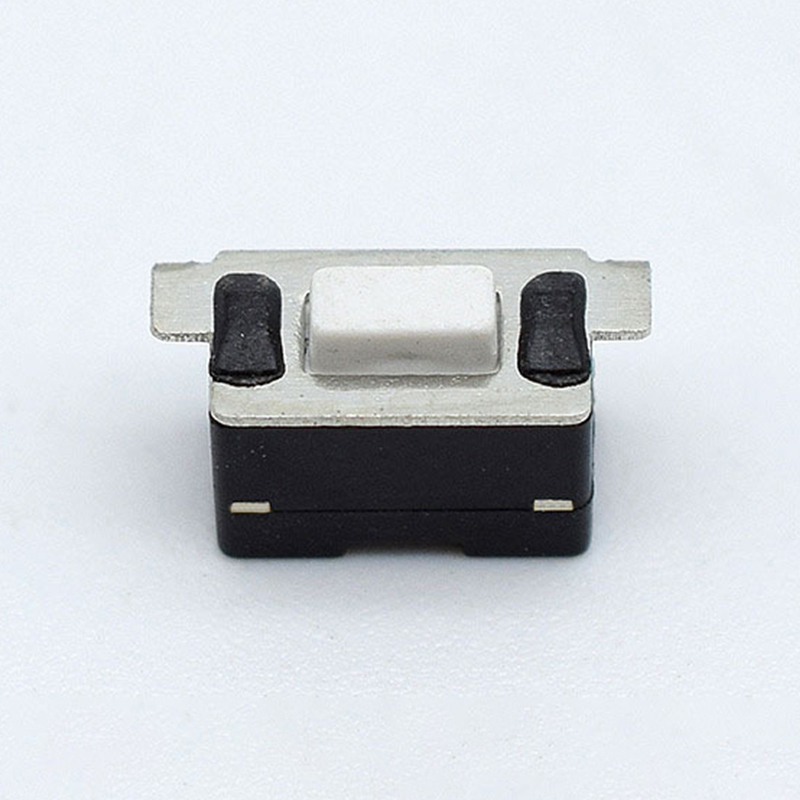

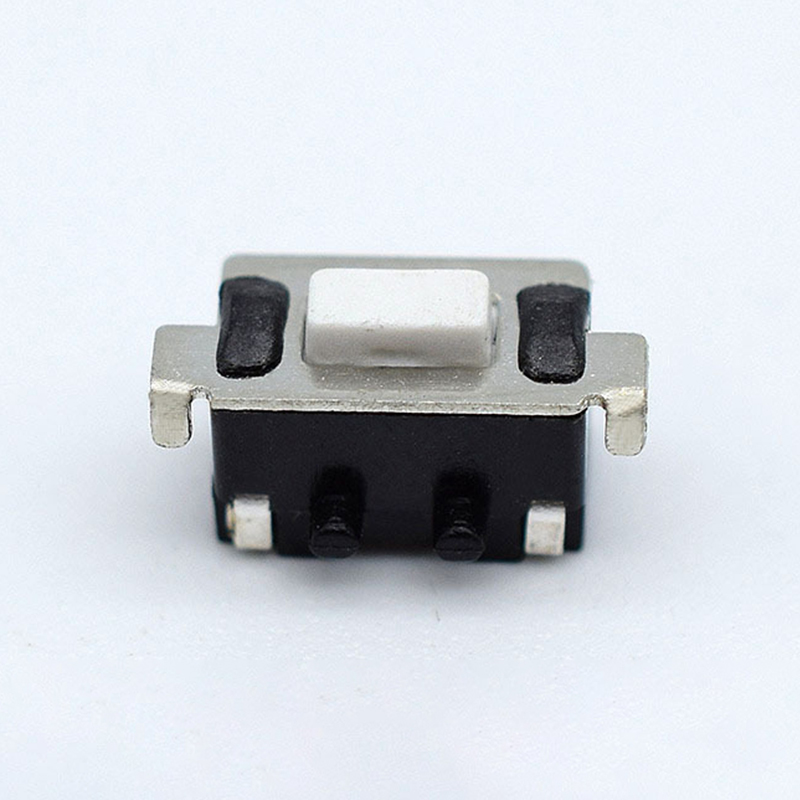

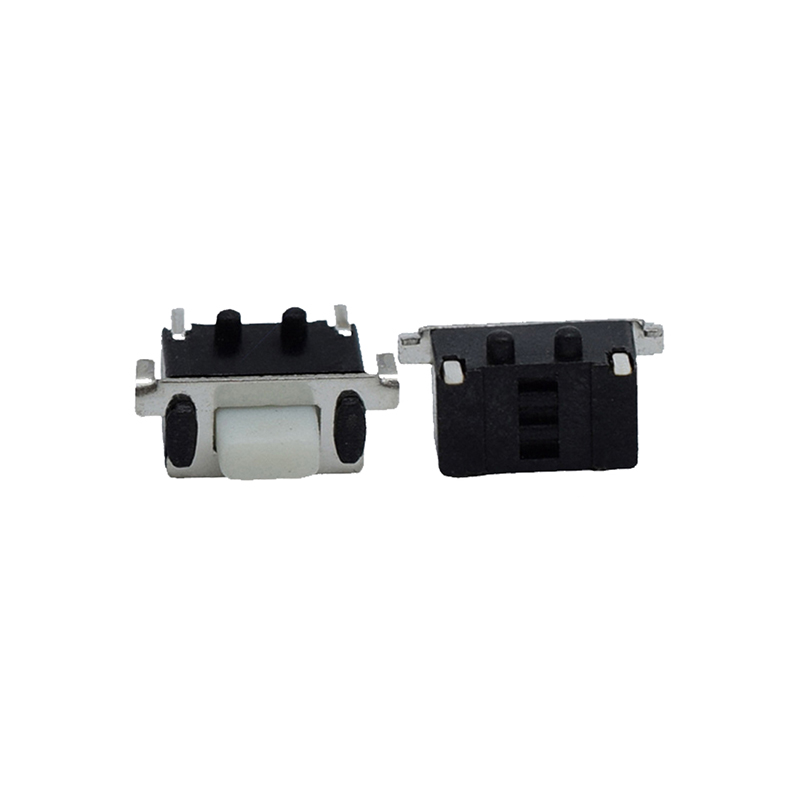

Externally, the switches may come in an all-white or other color design with a bracket and post construction, adding to their stability and ease of installation.

3*6 tact switches' Internal Structure

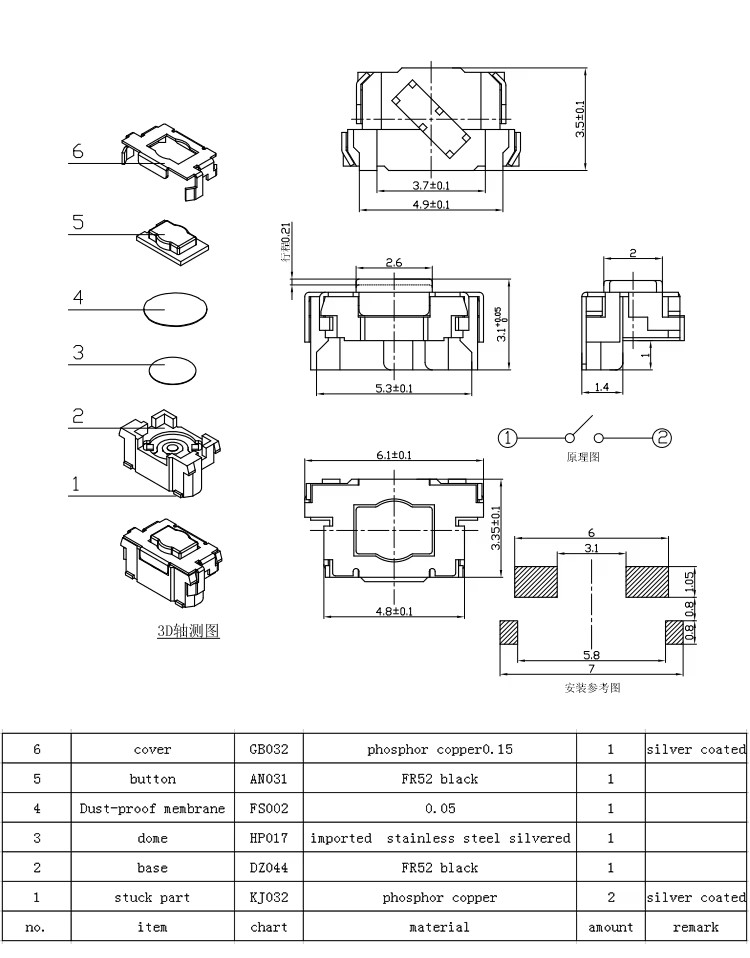

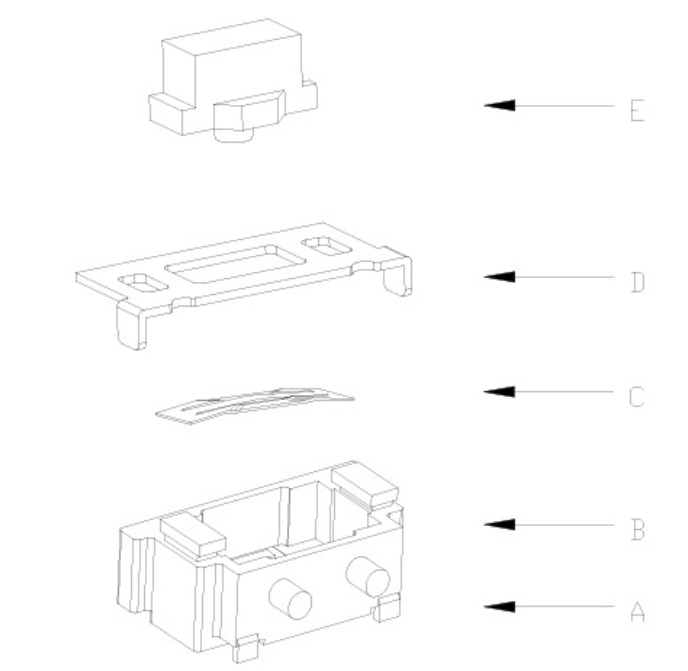

The internal structure of a 3×6 SMD flick switch mainly consists of parts such as cover plate, button, shrapnel, base and pin. Among them, the button is where the external force is applied, and the shrapnel is the key component of the switch, which is used to realize the on-off function of the switch. The pins are where the switch is connected to the circuit and are used to transmit the switch signal to the circuit.

The design of the bracket with posts makes the switch more stable during installation and less likely to fall off or wobble, which improves the reliability and service life of the switch.

Pinout and Package

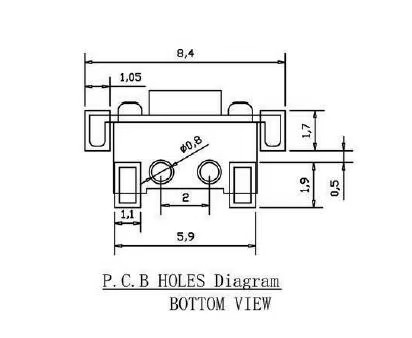

The pins of 3×6 SMD tactile switches are usually of gull-wing design, which is easy to solder and connect, and improves the convenience of production and maintenance. Also, the SMD package method makes the switch more compact and suitable for compact layout design.
