4×6 Silicone Tact Switch

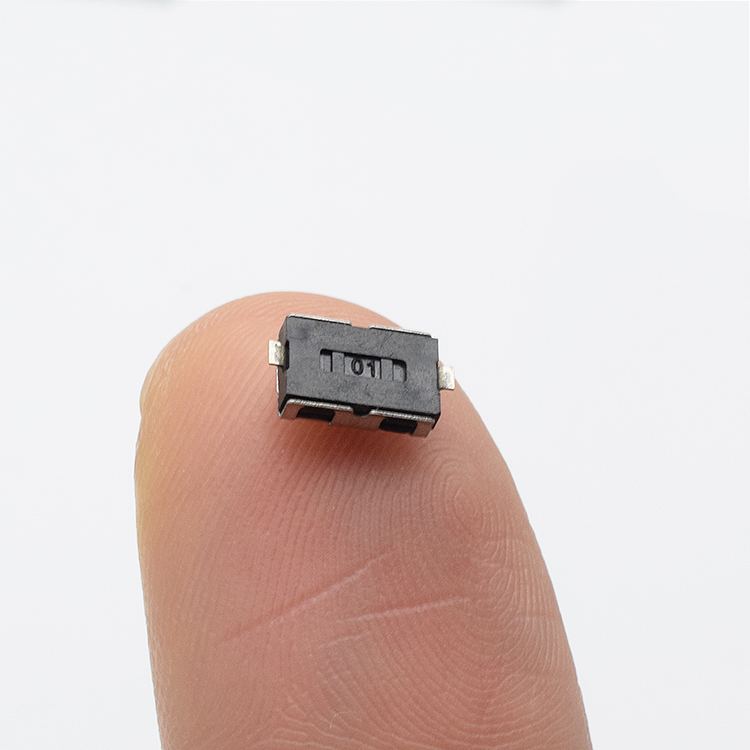

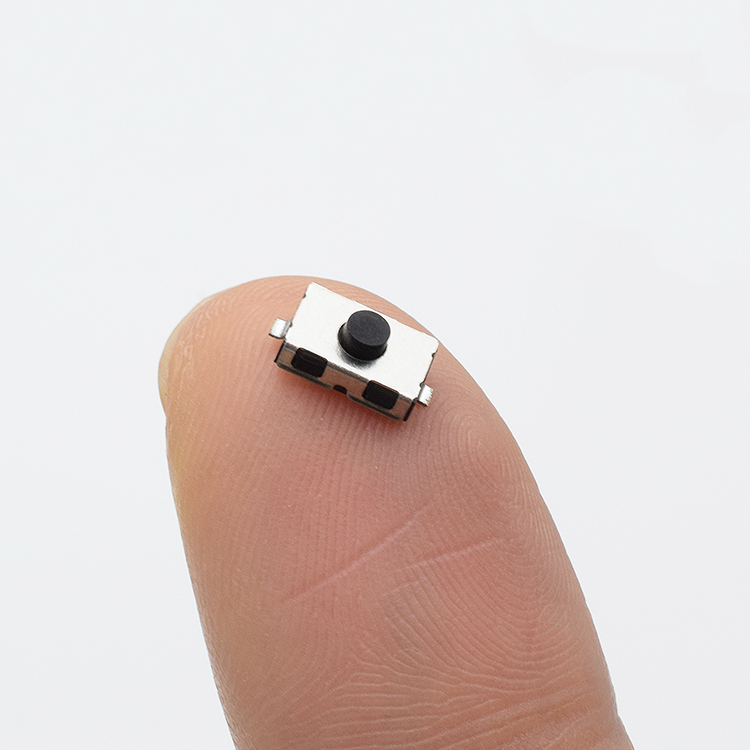

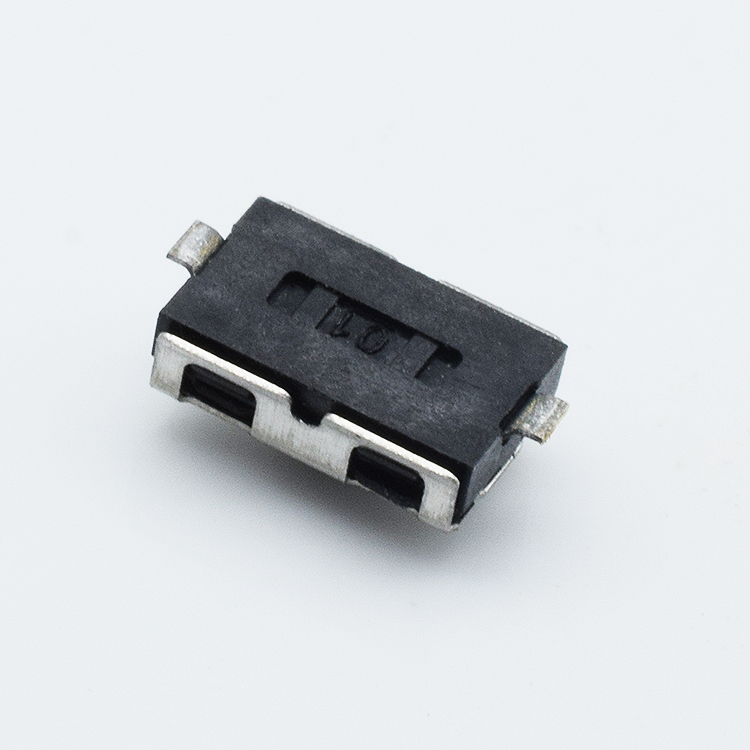

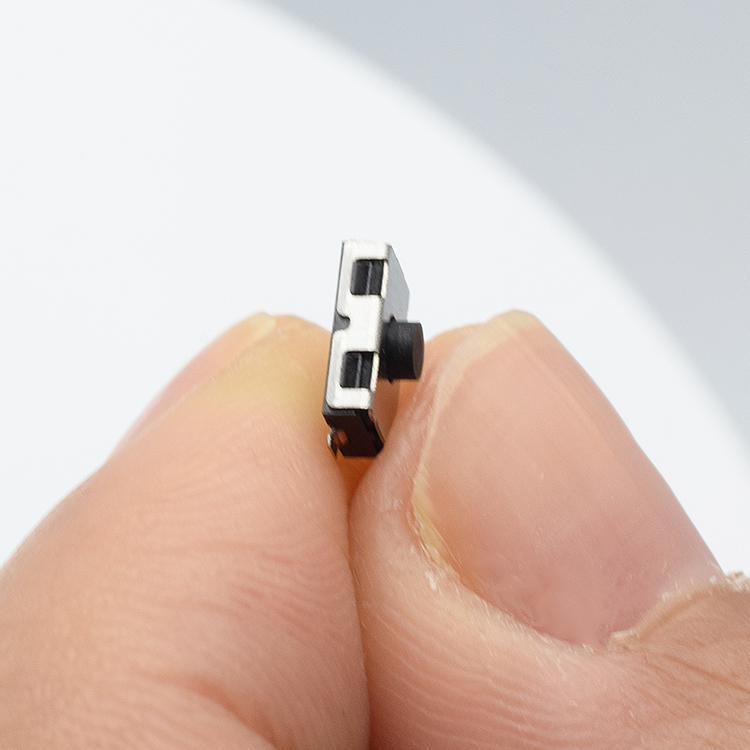

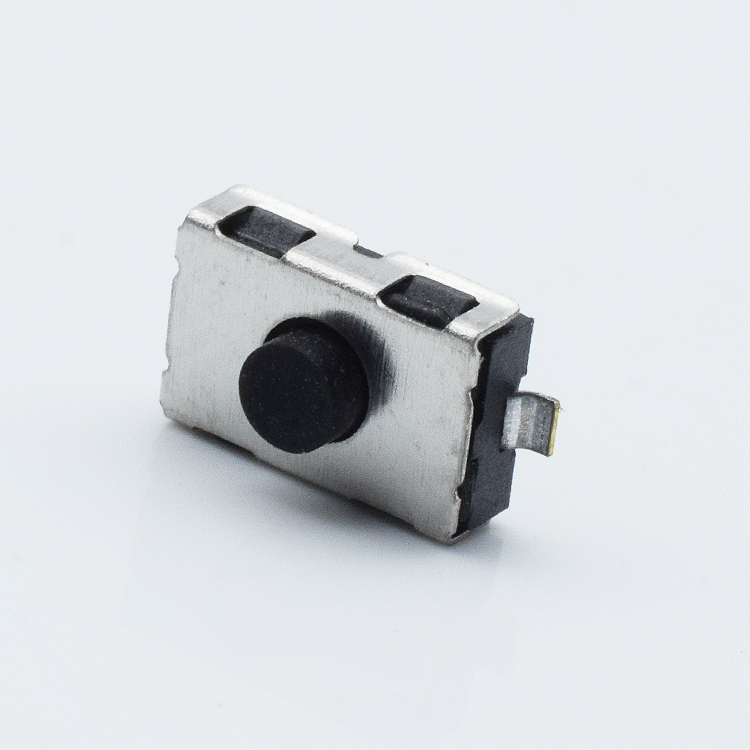

4*6 Tactile Switches' Display

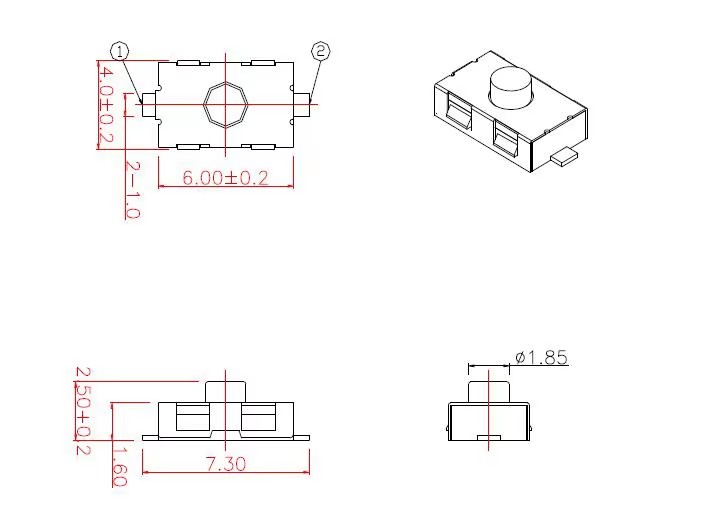

Dimensions: The dimensions of the Switch are precisely 4mm (width) x 6mm (length) x 2.5mm (height), and this compact size makes it ideal for use in electronic devices where space is limited.

Appearance: The surface of the switch is made of silicone material, which has excellent elasticity, abrasion resistance and corrosion resistance, ensuring that the switch still maintains a good Tactile sensation after a long period of use.

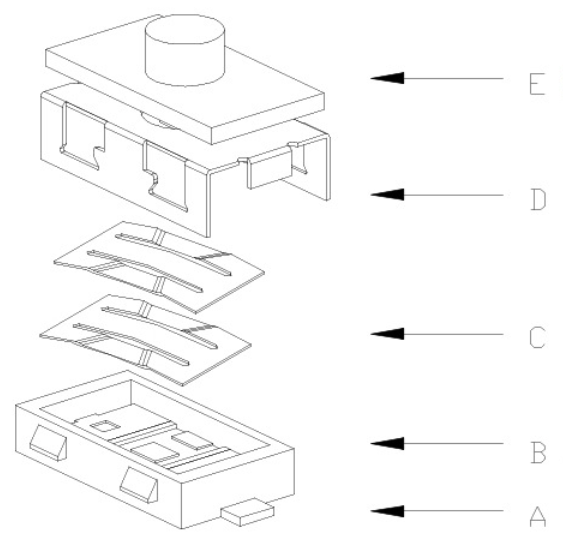

Components of Silicone Tactile Switches

Silicone Buttons: As the main components of user operation, silicone buttons have a soft and comfortable touch, which can provide a good user experience. At the same time, the silicone material also has good dustproof and waterproof performance, which can to a certain extent protect the inside of the switch from the interference of the external environment.

Metal Shrapnel or Conductive Rubber: This is one of the core components of the switch, which is used to realize the on-off of the circuit. When the user presses the silicone button, the metal shrapnel or conductive rubber deforms and makes contact with the contacts on the circuit board, thus realizing circuit conduction. When the button is released, the shrapnel or conductive rubber is restored to its original shape and breaks contact with the contacts, thus shutting down the circuit.

Chassis and Pins: The chassis is used to secure and support the other components of the switch and to provide pins for connection to the circuit board. The pins are usually gold-plated or tin-plated to improve conductivity and corrosion resistance.

Working Principle of 4x6 Tactile Switch

The working principle of the switch is similar to that of a general flick switch, which relies on the change of force on the metal shrapnel or conductive rubber to realize on-off. When the user gently presses the silicone button, the internal metal shrapnel or conductive rubber is deformed by the external force and contacts the contacts on the circuit board, thus realizing circuit conduction. After releasing the button, the shrapnel or conductive rubber returns to its original state, disconnects from the contact point, and the circuit is cut off.

Features of Silicone Tactile Switches

Dustproof and waterproof: Due to the use of silicone material, the switch has a certain degree of dustproof and waterproof performance, which can prevent dust and moisture from entering the interior of the switch to a certain extent and extend the service life of the switch.

Durability: Silicone buttons and metal shrapnel or conductive rubber and other components are carefully designed and manufactured to ensure that the switch still maintains good performance and stability over a long period of time.

Easy to install: The switch usually adopts surface mounting or plug-in mounting, which can be easily installed on the circuit board to improve production efficiency.
