Surface Mount Push Switch

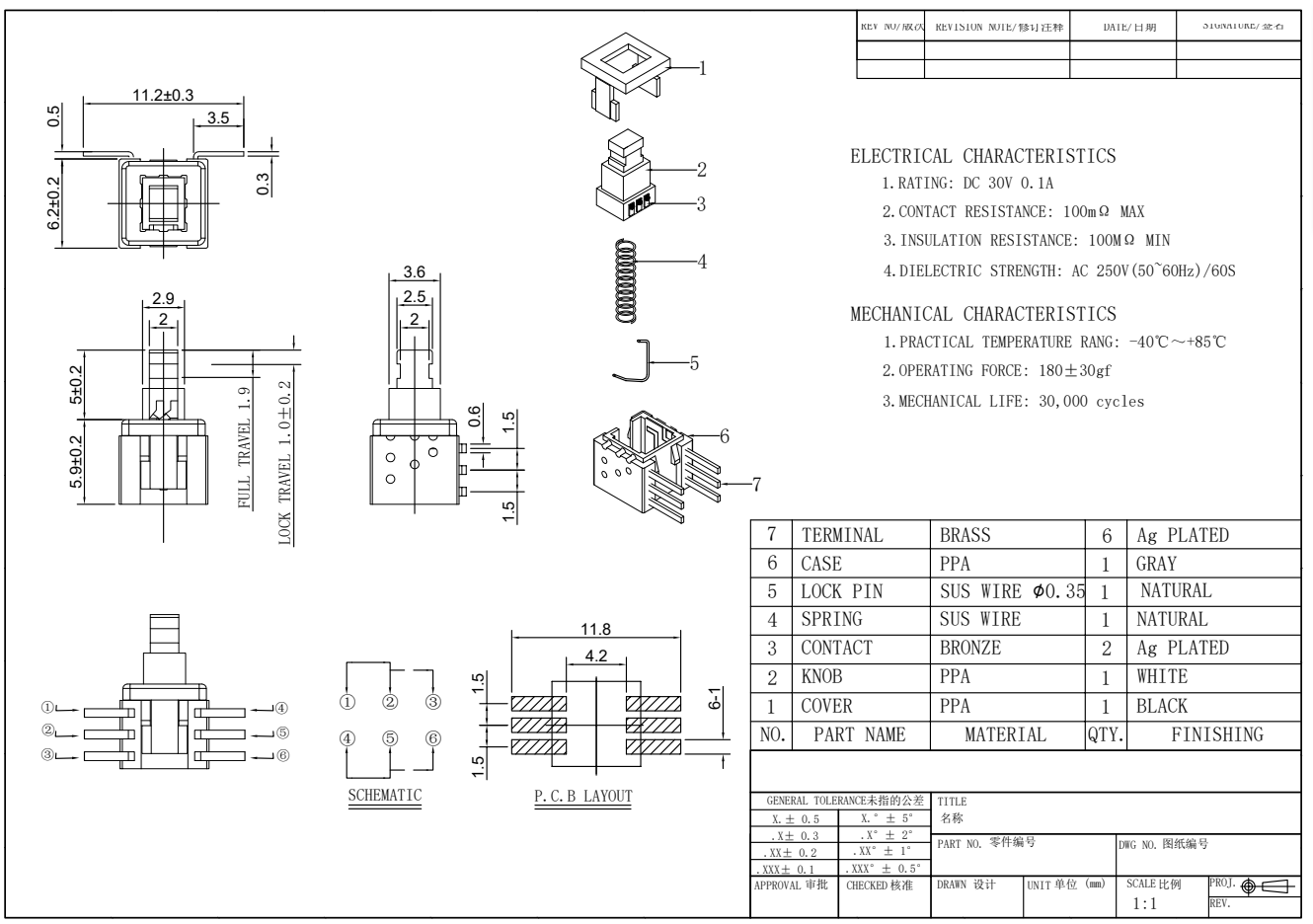

5.8*5.8mm Push Button Switch Struct

6P Push Button Switch Features

- Operation Type: Available in two versions: latching (press once to lock and conduct, press again to reset and open) and non-latching (press to conduct, release to reset)

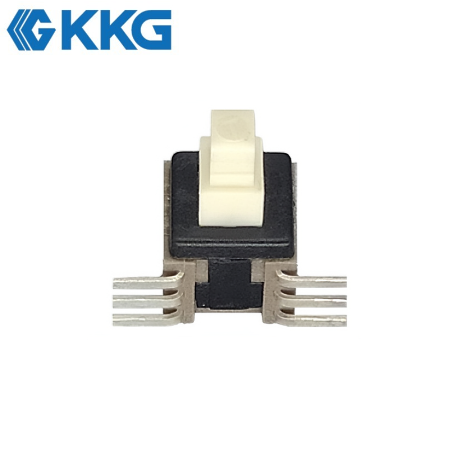

- Feel and Structure: High-profile button with a distinct travel distance and crisp tactile feedback; internal locking mechanism is stable and reliable

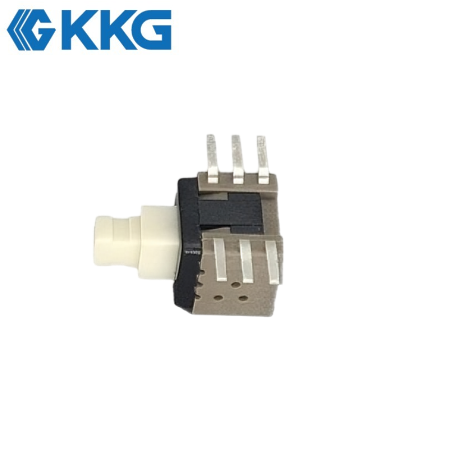

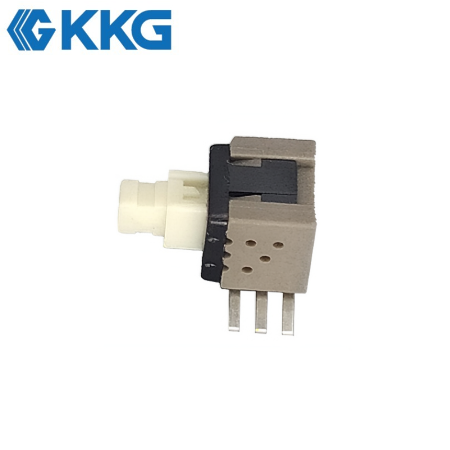

- Installation Advantages: Side-insertion design with 90° bent pins saves vertical space, making it suitable for slim devices and side-access applications

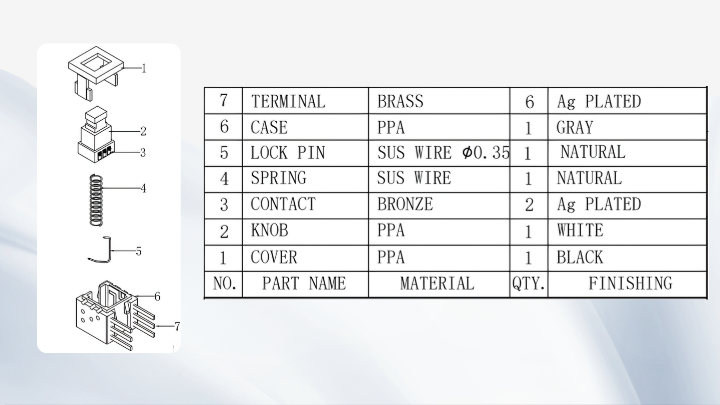

- Materials: Housing made of high-temperature-resistant, flame-retardant engineering plastic; pins made of tin-plated copper alloy, offering excellent conductivity and solderability

Self-reset Push Button Switch Application

- Consumer Electronics: Smart wearables, electric toothbrushes, portable media players, small household appliances

- Instruments and Meters: Multimeters, measuring equipment, control panels

- Industrial and Automotive: Small control modules, in-vehicle auxiliary devices

- Toys and Digital Devices: Children’s electronic toys, mini digital accessories

Selection Guidelines of Push Switch

- Choose the latching type for continuous power-on applications; choose the non-latching type for momentary triggering

- The side-mount structure is better suited for PCB edge layouts, while the high-profile design facilitates blind operation and precise actuation
