Product Brief Description

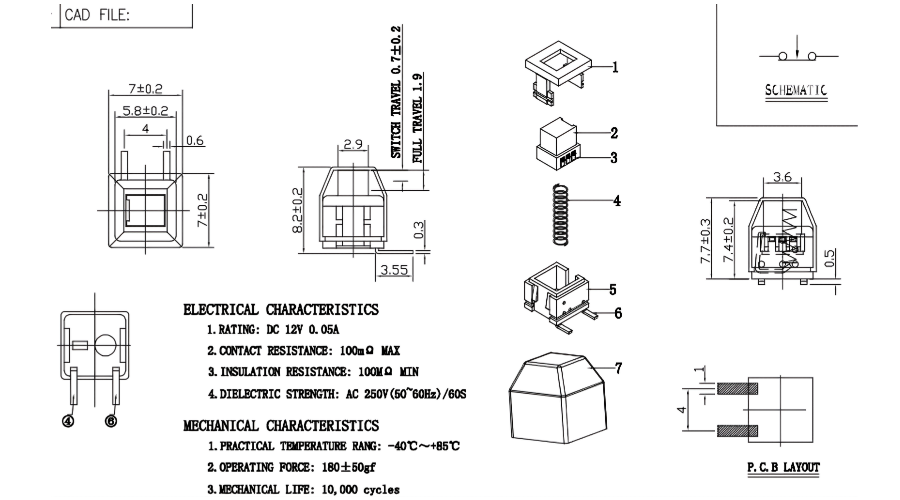

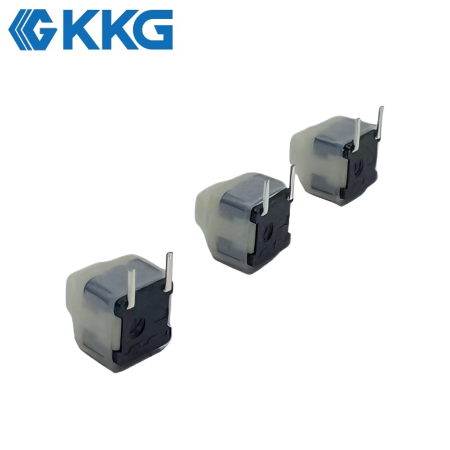

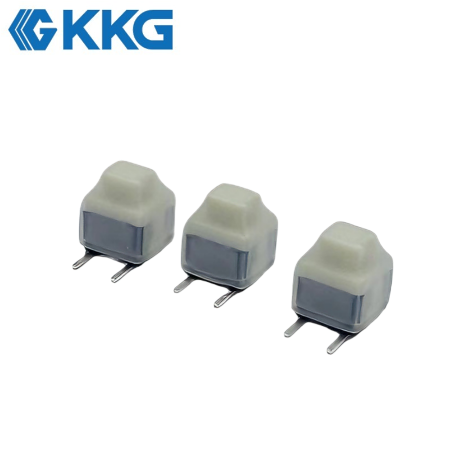

This is a 5.8×5.8mm 2P push switch (special edition) designed specifically for compact spaces. It comes with a matching keycap, features a clear structure, and is made of reliable materials, making it ideal for electronic devices where size and tactile feedback are critical.
ODM/OEM Service
Source Factory
Stable Daily Output
High Quality
Multiple Payment Methods
Pre/After Service

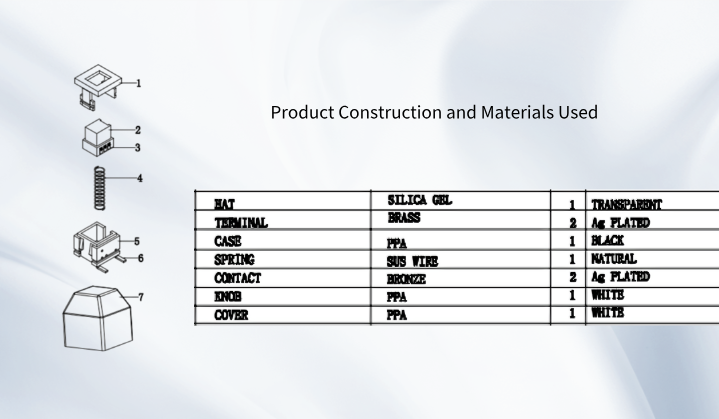

SMD Push Button Switch's Product Construction and Materials Used
| Part | Material Used | Surface Treatment / Color | Core Advantage |
| MAT | SILICA GEL | TRANSPARENT | Soft tactile feel, quiet operation, excellent aging resistance, and effective dust/water proofing. |
| TERMINAL | BRASS | Ag PLATED | Superior electrical conductivity, silver plating prevents oxidation, ensuring long-term signal stability. |
| CASE | PPA | BLACK | High temperature resistance (compatible with reflow soldering), high mechanical strength, and reliable component protection. |
| SPRING | SUS WIRE | NATURAL | Durable elasticity, corrosion resistance, guarantees consistent tactile feel over millions of presses. |
| CONTACT | BRONZE | Ag PLATED | Low contact resistance, high wear resistance, silver plating enhances conductivity and service life. |
| KNOB | PPA | WHITE | Material compatibility with the housing, clean white appearance, scratch resistance, and ready-to-use without custom molding. |
| COVER | PPA | WHITE | Material compatibility with the housing, clean white appearance, scratch resistance, and ready-to-use without custom molding. |
Key Product Advantages of 2P Push Button Switch
1. Ultra-compact: With an ultra-small size of 5.8 × 5.8 mm and a minimalist 2-pin design, it saves PCB space and is ideal for high-density integrated devices.
2. Tactile Feedback and Durability: The combination of a silicone pad and a stainless steel spring provides clear tactile feedback, while the silver-plated contact pads ensure long-lasting, high-cycle operation.
3. High Reliability: The PPA housing is heat-resistant and suitable for SMT reflow soldering; the stainless steel spring and silver-plated terminals/contact pads offer corrosion and oxidation resistance, making them suitable for harsh environments.
4. Complete Package: Includes a white PPA keycap, eliminating the need for additional customization and directly enhancing product aesthetics and user experience.
Typical Applications of Push Button Switch
- Consumer Electronics: Portable devices, smart wearables, small remote controls
- Industrial Control: Control panels, test instruments, small industrial control devices
- Automotive Electronics: In-vehicle buttons, in-vehicle electronics (customizable to meet automotive-grade requirements)
- Smart Home: Smart switches, sensor panels, small appliance controls
