6.35mm female Jack's Parameter

      1.Rating: 0.5A，30V

      2.Operating Force: 3~30N

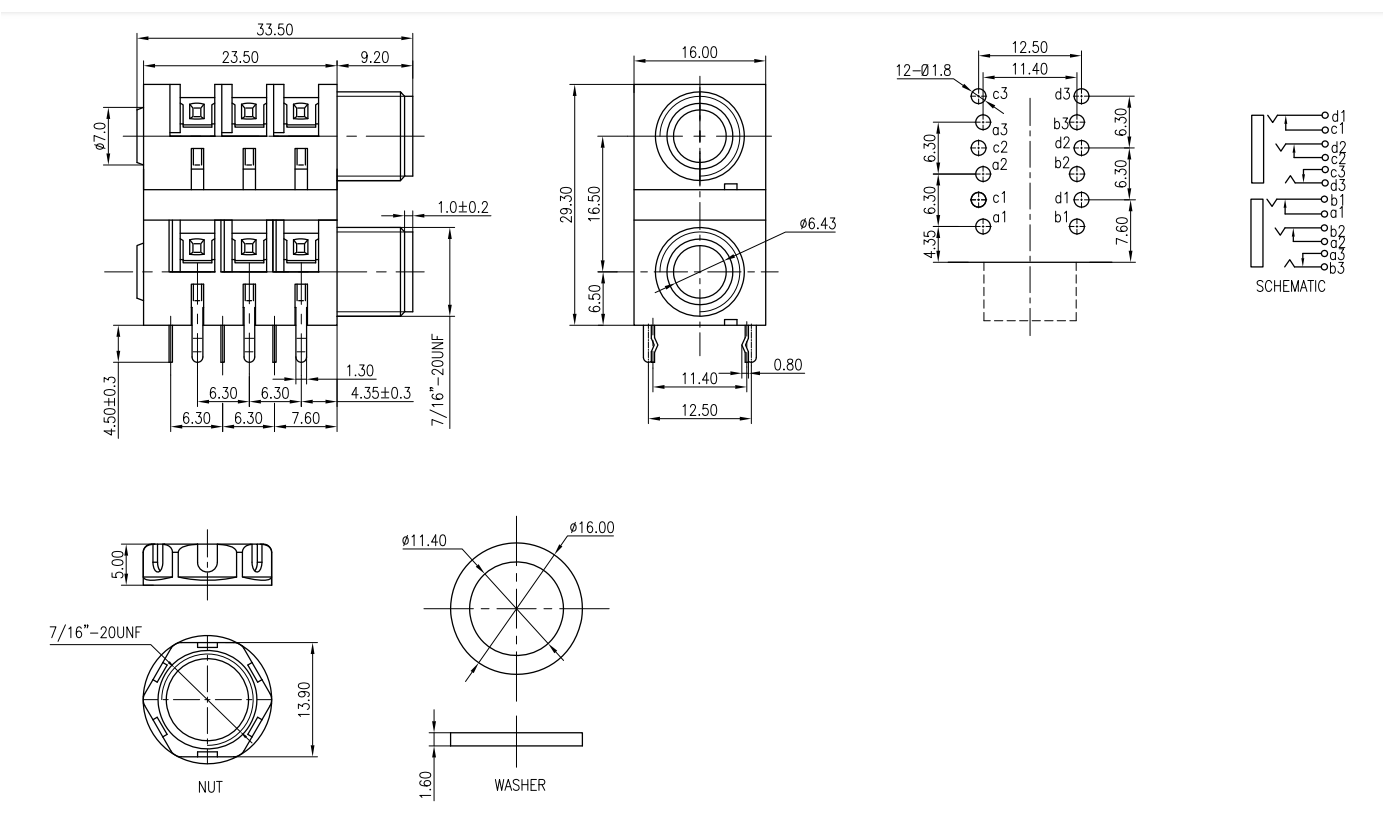

      3.Dimension: 29.30mm*16.00mm

      4.Electrical Life: 5,000 Cycles Min

      5.Dielectric Strength: AC500V

      6.Contact Resistance: 50mΩ Max

Earphone Female audio Jack's Product Operating Principle

The 6.35 mm female jack operates by providing a reliable electrical connection between an audio device and an audio cable. When a 6.35 mm male plug is inserted, the contacts inside the jack make a secure connection with the plug's corresponding contacts (tip, ring, and sleeve for TRS, or tip and sleeve for TS). This allows the transmission of electrical signals for audio applications, such as stereo sound or mono sound, depending on the type of plug used.

Headphone Female DC Jack's Product Functions

      1.Audio Signal Transmission: Carries audio signals between devices with minimal loss or interference.

      2.Stereo/Mono Support: Enables the connection of mono (TS) or stereo (TRS) audio cables for different audio setups.

      3.Signal Routing: Allows audio equipment to send and receive sound signals for mixing, amplifying, or recording.

      4.Durable Connection: Ensures secure and stable connections in both professional and consumer audio equipment.

Guitar audio Jack's Product Applications

      1.Musical Instruments: Commonly used in electric guitars, keyboards, and other instruments for connecting to amplifiers and audio processors.

      2.Audio Equipment: Found in mixers, amplifiers, and audio interfaces for professional sound systems.

      3.Recording Studios: Used in high-end recording equipment for reliable audio signal routing.

      4.Public Address Systems: For connecting microphones, mixers, and audio outputs.

      5.Home Automation Systems: Incorporated into smart home devices, such as light switches, thermostats, and security panels.

      6.Headphones and Audio Devices: Connecting high-quality headphones or speakers to audio output devices.
