6.35mm DIP Stereo Audio Jack丨PJ-6309
  • 6.35mm DIP Stereo Audio Jack丨PJ-6309

6.35mm DIP Stereo Audio Jack丨PJ-6309

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6309


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

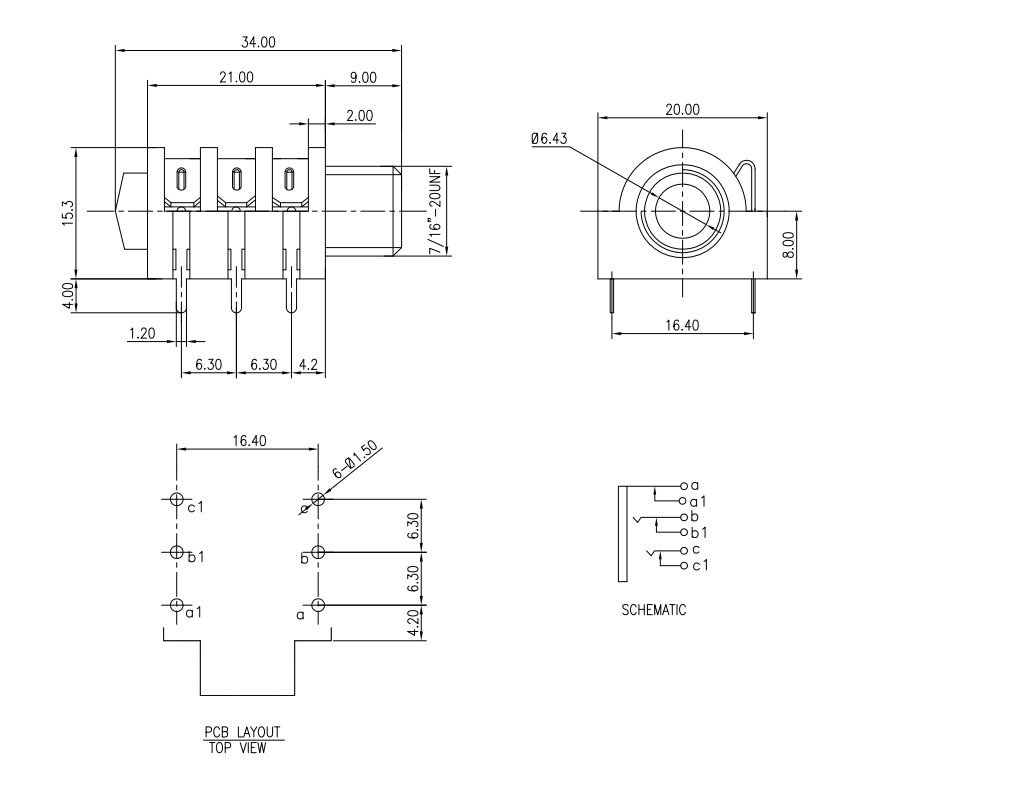

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension34.00mm*20.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Antelope Audio Zen Q Synergy Core Headphone Jack's Product Operating Principle



  1. Maximum Stability: The through-hole pins create an exceptionally strong solder joint, anchoring the component firmly to the circuit board and ensuring the durability of this 6.35 jack.

  2. Flawless Signal Path: The internal contacts are designed to provide a clean and reliable path for stereo audio signals, with a low contact resistance of 50mΩ (Max) for pristine sound.

  3. Consistent Performance: The mechanism is engineered for a long life of at least 5,000 cycles, providing a reliable and consistent connection every time.


Moog Matriarch Semi-Modular Analog Synthesizer Headphone Jack's Product Functions



  1. Professional Audio Connection: Provides a standard quarter-inch port for connecting high-end audio equipment, from musical instruments to studio monitors.

  2. Unmatched Durability: The DIP mounting style makes this 6.35 mm jack ideal for heavy-duty use in mixers, amplifiers, and audio interfaces.

  3. High-Fidelity Audio: Ensures a clean, stable signal path, making it the perfect choice for professional recording and playback systems.

  4. Secure Mating: A consistent operating force of 3-30N provides a secure and tactile connection, preventing accidental disconnections of this female audio jack


12MTK Analog Mixer Headphone Jack's Product Applications



  1. Studio Recording Interface: Serves as one of the main instrument inputs on the Antelope Audio Zen Q Synergy Core audio interface, where its robust build is essential for daily studio use.

  2. Analog Synthesizers: Used as a primary patch point on the Moog Matriarch Semi-Modular Analog Synthesizer, providing a durable connection that can withstand constant re-patching.

  3. Live Sound Mixing: Integrated into the Soundcraft Signature 12MTK Analog Mixer as a channel input, offering a reliable 6.35 jack that can handle the rigors of live performance.

PJ-6309

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

1759028495881710

Q1: Are you a direct manufacturer or a trading company?

A: KKG Electronics is a direct manufacturer with over 15 years of specialized expertise. We design and produce high-quality electronic components, including tact switches, micro switches, USB connectors, audio jacks, and more, directly from our own factory.



Q2: How can I request a sample or get a price quotation?

A: For an accurate quotation and the right samples, please provide us with details about your project. Key information includes technical specifications, intended application, and required functions. For the fastest service, providing artwork or a drawing (AI format is ideal) is highly recommended. We are happy to offer free samples for your evaluation.



Q3: How do you guarantee product quality and reliability?

A: Quality is our highest priority. Every component we manufacture undergoes a rigorous 100% electrical and mechanical testing process before shipment. This ensures that all our products meet the highest standards for performance, durability, and reliability.



Q4: What files are required for a PCB or PCBA quotation?

A: To provide an accurate quote, please supply the following:

For PCB Quotation: Gerber data/files along with any related technical requirements or special instructions.

For PCBA Quotation: Gerber data/files, a detailed Bill of Materials (BOM), and any testing procedures if functional testing is required.



Q5: How are the electronic components packaged for shipping?

A: We ensure our products are protected during transit. Components are packaged securely in anti-static bags or tape-and-reel formats, then cushioned with air bubble film inside a sturdy inner box and a durable outer shipping carton.
