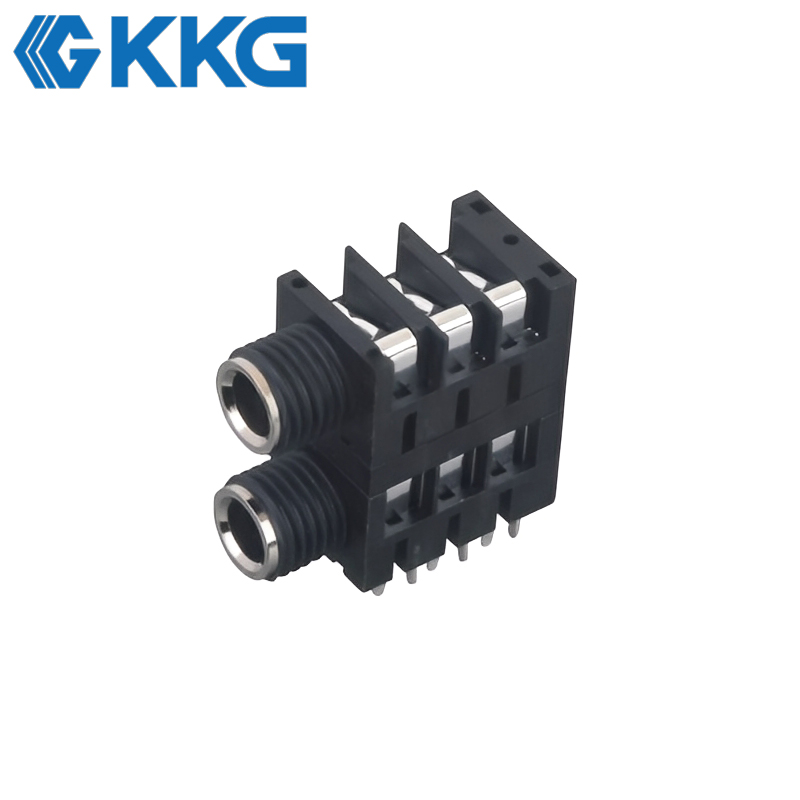

6.35mm Heavy-Duty DIP Audio Jack丨PJ-6310
  • 6.35mm Heavy-Duty DIP Audio Jack丨PJ-6310

6.35mm Heavy-Duty DIP Audio Jack丨PJ-6310

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6310


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

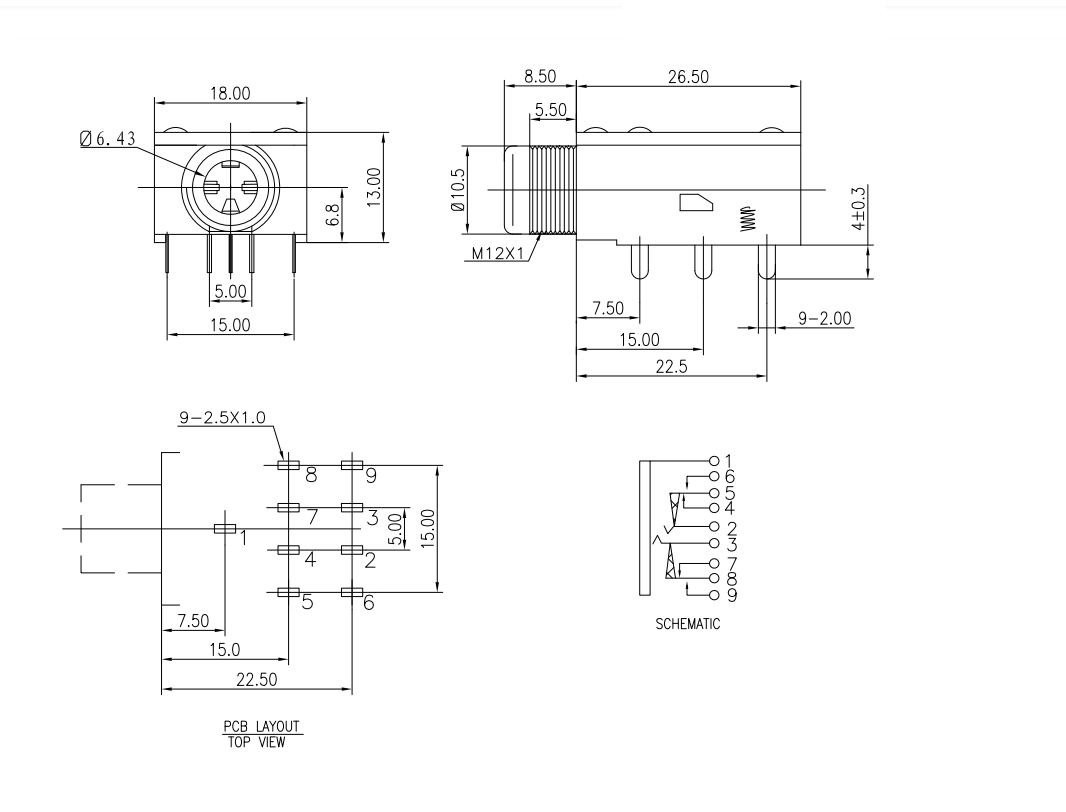

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension35.00mm*18.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Eventide H90 Harmonizer Multi-Effects Pedal Headphone Jack's Product Operating Principle



  1. Unyielding Mechanical Bond: The through-hole pins create an extremely strong solder connection to the PCB, ensuring this female audio jack remains securely in place even under heavy, repeated use.

  2. Pristine Signal Flow: The internal contacts are designed for a clean, low-resistance (50mΩ Max) connection, preserving the integrity and clarity of the stereo audio signal.

  3. Consistent Performance: The mechanism is built to withstand a minimum of 5,000 insertion and removal cycles, guaranteeing long-term reliability and consistent performance.


Neutrik NYS-SPP-L1 1/4 inch TRS Patch Bay Headphone Jack's Product Functions



  1. Professional-Grade Interface: Provides a standard quarter-inch port, making it a versatile 6.35 mm jack for connecting a wide range of professional audio devices.

  2. Extreme Durability: The DIP mounting style is ideal for equipment subjected to the rigors of touring, studio work, or live performance.

  3. High-Fidelity Audio: Ensures a clean and stable signal path, making it the perfect choice for high-resolution recording and playback systems.

  4. Secure Connection: A consistent operating force of 3-30N provides a firm, tactile connection that prevents accidental unplugging.

Yamaha MONTAGE M8x Synthesizer Headphone Jack's Product Applications



  1. High-End Effects Processing: Serves as an input/output connection on the Eventide H90 Harmonizer Multi-Effects Pedal, where its robust build is essential for stage and studio reliability.

  2. Studio Patch Bays: Used in the Neutrik NYS-SPP-L1 1/4 inch TRS Patch Bay, providing dozens of durable connection points that can withstand constant re-patching.

  3. Professional Synthesizers: Integrated as a main output on the Yamaha MONTAGE M8x Synthesizer, offering a reliable and high-quality female audio jack for professional keyboardists.

PJ-6310

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

1759028495881710

Q1: Is KKG Electronics the actual manufacturer of its components?

A: Yes, we are. KKG Electronics is an original equipment manufacturer (OEM) with a 15-year history of designing and producing electronic components. When you work with us, you are engaging directly with the factory that makes your tact switches, micro switches, connectors, and jacks. This ensures direct communication, production oversight, and factory-direct pricing.



Q2: What is the process for getting a price quote and samples?

A: To receive a fast and accurate quotation, please share the technical requirements for the component you need, including specifications and its end-application. For custom parts, an AI format artwork or technical drawing is best. We will review your request and are happy to provide free samples to validate fit and function in your design.



Q3: How quickly can I expect to receive a quotation?

A: Our team is committed to a swift response. After you provide the necessary product details, we aim to deliver a comprehensive quotation within 24 business hours.



Q4: What quality control measures do you have in place?

A: Our quality assurance is built on a zero-defect principle. Every single component manufactured at KKG, from switches to connectors, undergoes rigorous 100% testing for both electrical performance and mechanical durability before it is approved for delivery, ensuring it meets our high standards.



Q5: How are components packaged to ensure they arrive safely?

A: We use multi-layer protective packaging for all shipments. Components are placed in anti-static bags or on tape-and-reel (ideal for automated assembly), cushioned with protective film, and sealed in reinforced inner boxes and durable outer cartons for maximum protection.
