PJ-6335: 6.35mm Stereo PCB Mount Audio Jack

EarthQuaker Devices Astral Destiny Octal Octave Reverberation pedal Headphone Jack's Product Introduction

In the world of audio, the strength of your signal is only as reliable as your weakest link. A faulty connection can introduce noise, signal loss, or complete failure, compromising the entire user experience. This is where the KKG PJ-6335 shines as the definitive solution for uncompromising audio connectivity. As a cornerstone product from KKG Electronics Co., Ltd., a trusted manufacturer with over fifteen years of industry-leading experience, this 6.35 mm jack is the embodiment of precision engineering and unwavering reliability. It represents more than just a component; it's a guarantee of quality that you can build your reputation on.

The PJ-6335 is meticulously crafted from premium materials selected for their durability and electrical properties. The high-strength housing provides exceptional protection against physical stress and environmental factors, while the internal contacts are engineered for a minimum of 5,000 insertion and removal cycles. This incredible electrical life means the jack will outlast the competition, providing consistent, flawless performance year after year. The tactile feel of a plug seating into this female audio jack is firm and secure, with an operating force between 3 and 30N that gives users confidence in their connection.

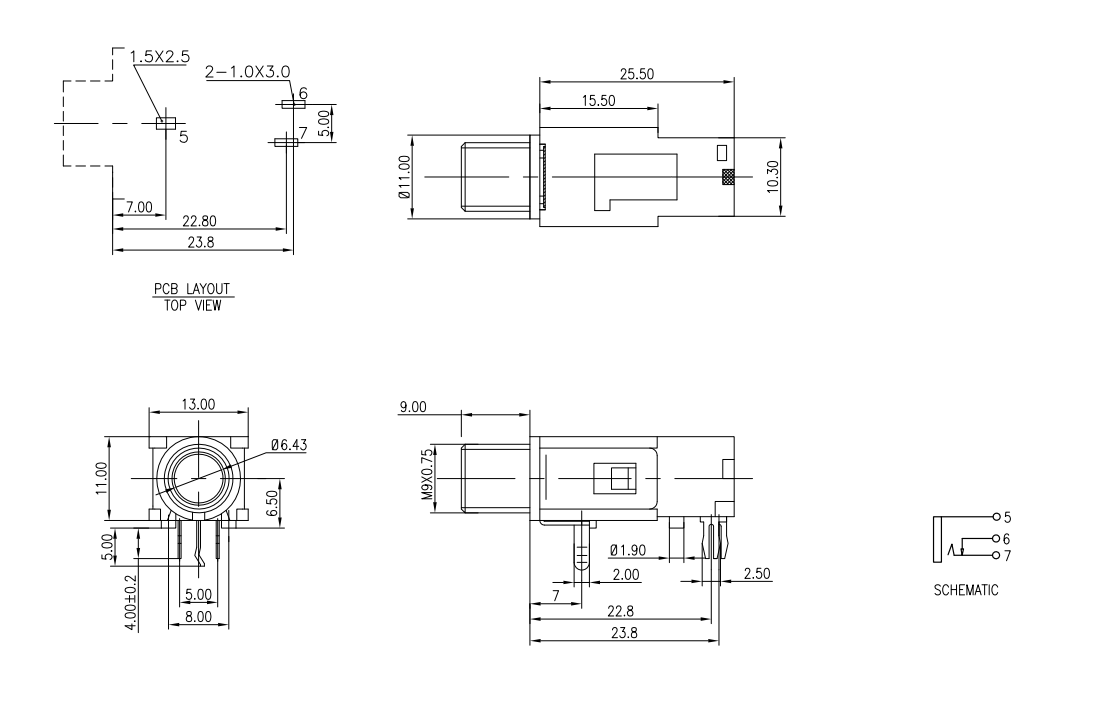

At its core, the PJ-6335 is designed for seamless integration into modern manufacturing workflows. Its DIP (Dual In-line Package) footprint is optimized for through-hole PCB mounting, creating a rock-solid mechanical anchor to the circuit board that can withstand the rigors of daily use. This design simplifies the assembly process, making it an ideal choice for both automated and manual soldering lines. Furthermore, its exceptionally low contact resistance of 50mΩ maximum ensures that the audio signal passes through with absolute transparency, preserving the purity and detail of the sound. This makes the 6.35 jack a perfect choice for high-fidelity applications where every nuance matters.

Whether you are designing a professional mixing console, a boutique guitar amplifier, a rugged medical device, or a consumer-grade home entertainment system, the versatility of the PJ-6335 is unmatched. It is the silent, reliable workhorse that empowers your products to perform at their best. By choosing the KKG PJ-6335, you are not just buying an audio connector; you are investing in peace of mind, backed by a legacy of manufacturing excellence. Elevate your products and deliver the crystal-clear, uninterrupted audio experience your customers demand.

Focusrite Scarlett 2i2 Headphone Jack's Product Operating Principle

1. Secure Connection: Upon inserting a 1/4 inch plug, the internal spring-loaded contacts securely grip the plug's tip, ring, and sleeve, establishing distinct electrical pathways.

2. Stable Mounting: The DIP pins provide a stable mechanical and electrical connection to the printed circuit board, ensuring signal integrity from the jack to the device's circuitry.

3. Signal Routing: The switching mechanism can re-route signals, such as muting internal speakers when headphones are connected, enhancing the device's user-friendly functionality.

Boss DS-1 Distortion Headphone Jack's Product Functions

1. Standard I/O Port: Provides a standard 1/4 inch I/O port for stereo audio signals on electronic devices.

2. Low-Noise Connectivity: Ensures reliable, low-noise connectivity for headphones, instruments, and microphones.

3. Efficient Assembly: The 6.35 jack design facilitates secure through-hole mounting for high-volume manufacturing.

4. Clear Transmission: Enables clear and consistent audio transmission critical for professional and consumer products.

1. Professional Audio: Integrated into the main headphone output of audio interfaces like the Focusrite Scarlett 2i2, providing a monitoring point for recording artists and engineers.

2. Musical Instruments: Used as the primary input jack on electric guitar effects pedals, such as the Boss DS-1 Distortion, connecting the instrument to the pedal's circuitry.

3. Consumer Electronics: Serves as the high-quality headphone port on home theater receivers ( Denon AVR-S760H), often used with a mini jack 3 5mm to 1/4 inch adapter for versatile headphone compatibility.

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.

Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5. What about the shipping cost?

A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
