12P 6.35mm DIP Audio Jack Socket丨PJ-6337
  • 12P 6.35mm DIP Audio Jack Socket丨PJ-6337

12P 6.35mm DIP Audio Jack Socket丨PJ-6337

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6337


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

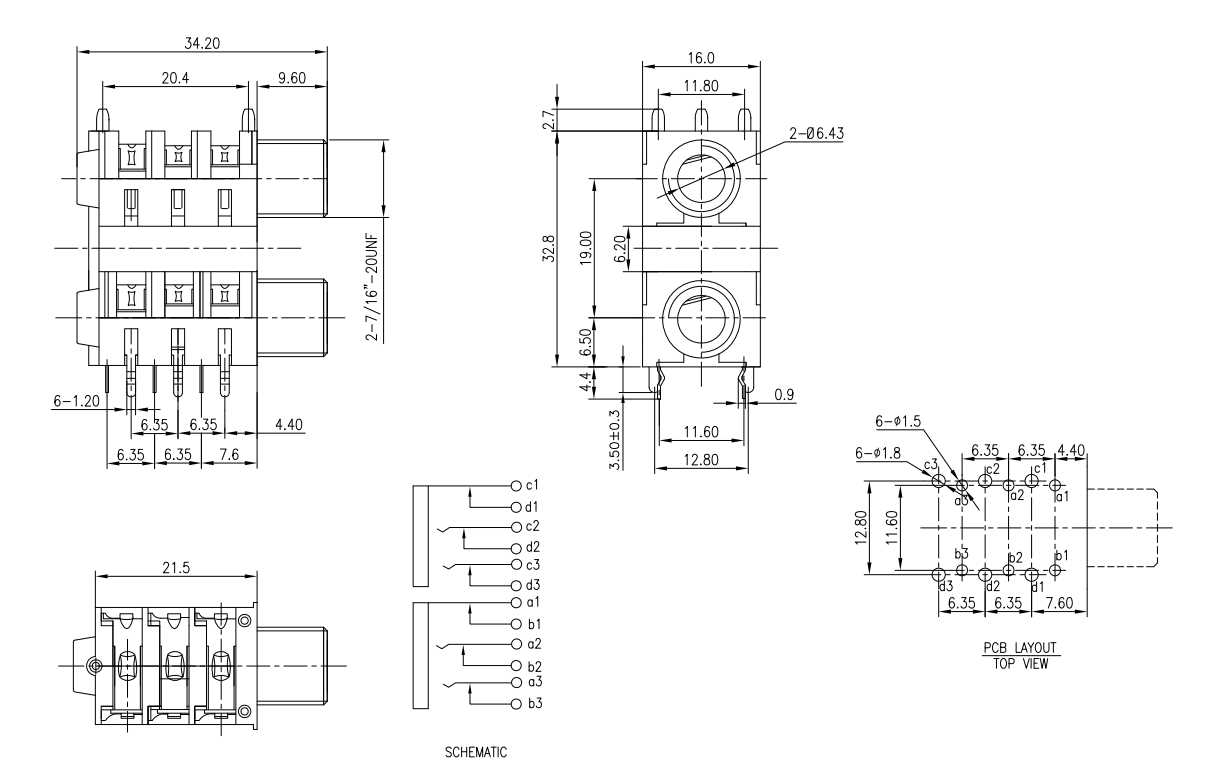

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension32.80mm*16.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Allen & Heath SQ-6 Digital Mixer Headphone Jack's Product Operating Principle



  1. Rock-Solid Mounting: The through-hole pins create a powerful solder bond to the PCB, ensuring this 6.35 mm jack remains stable and secure, even with frequent plugging and unplugging.

  2. High-Fidelity Signal Path: The internal contacts are designed to provide a clean and uninterrupted path for stereo audio, maintaining optimal signal integrity with low resistance.

  3. Enduring Performance: Built for a long service life, the mechanism of this female audio jack is rated for at least 5,000 cycles, guaranteeing consistent and reliable performance


Roland FANTOM-8 Synthesizer Keyboard Headphone Jack's Product Functions



  1. Professional Audio Connection: Provides an industry-standard quarter-inch port for connecting professional instruments, headphones, and studio gear.

  2. Exceptional Durability: The DIP mounting style makes this 6.35 jack the ideal choice for equipment that is subject to the rigors of touring and frequent use.

  3. Pristine Audio Quality: Ensures a clean and stable signal, making it a perfect component for high-fidelity recording and playback systems.

  4. Secure Mating: A consistent operating force of 3-30N provides a firm and tactile connection, preventing accidental disconnections from this female audio jack.


Empress Effects ZOIA Multi-Effects Pedal Headphone Jack's Product Applications



  1. Live Sound Mixing: Serves as a main output on the Allen & Heath SQ-6 Digital Mixer, where its robust construction is essential for reliable performance in live sound environments.

  2. Keyboard Workstations: Used as a primary audio output on the Roland FANTOM-8 Synthesizer Keyboard, providing a durable and high-quality connection for professional musicians.

  3. Modular Effects Units: Integrated into the Empress Effects ZOIA Multi-Effects Pedal, where the durability of the 6.35 mm jack is critical for withstanding constant re-patching by creative musicians.

PJ-6337

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature


We ensure high production efficiency and ship your order within 7 days after payment.

1759028495881710

Q1: Is KKG Electronics the actual manufacturer of its components?

A: Yes, we are. KKG Electronics is an original equipment manufacturer (OEM) with a 15-year history of designing and producing electronic components. When you work with us, you are engaging directly with the factory that makes your tact switches, micro switches, connectors, and jacks. This ensures direct communication, production oversight, and factory-direct pricing.



Q2: What is the process for getting a price quote and samples?

A: To receive a fast and accurate quotation, please share the technical requirements for the component you need, including specifications and its end-application. For custom parts, an AI format artwork or technical drawing is best. We will review your request and are happy to provide free samples to validate fit and function in your design.



Q3: How quickly can I expect to receive a quotation?

A: Our team is committed to a swift response. After you provide the necessary product details, we aim to deliver a comprehensive quotation within 24 business hours.



Q4: What quality control measures do you have in place?

A: Our quality assurance is built on a zero-defect principle. Every single component manufactured at KKG, from switches to connectors, undergoes rigorous 100% testing for both electrical performance and mechanical durability before it is approved for delivery, ensuring it meets our high standards.



Q5: How are components packaged to ensure they arrive safely?

A: We use multi-layer protective packaging for all shipments. Components are placed in anti-static bags or on tape-and-reel (ideal for automated assembly), cushioned with protective film, and sealed in reinforced inner boxes and durable outer cartons for maximum protection.
