Home > Products > 6.35 Headphone Jack > 6P 6.35mm DIP Stereo Audio Jack丨PJ-6346
6P 6.35mm DIP Stereo Audio Jack丨PJ-6346
  • 6P 6.35mm DIP Stereo Audio Jack丨PJ-6346

6P 6.35mm DIP Stereo Audio Jack丨PJ-6346

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6346


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

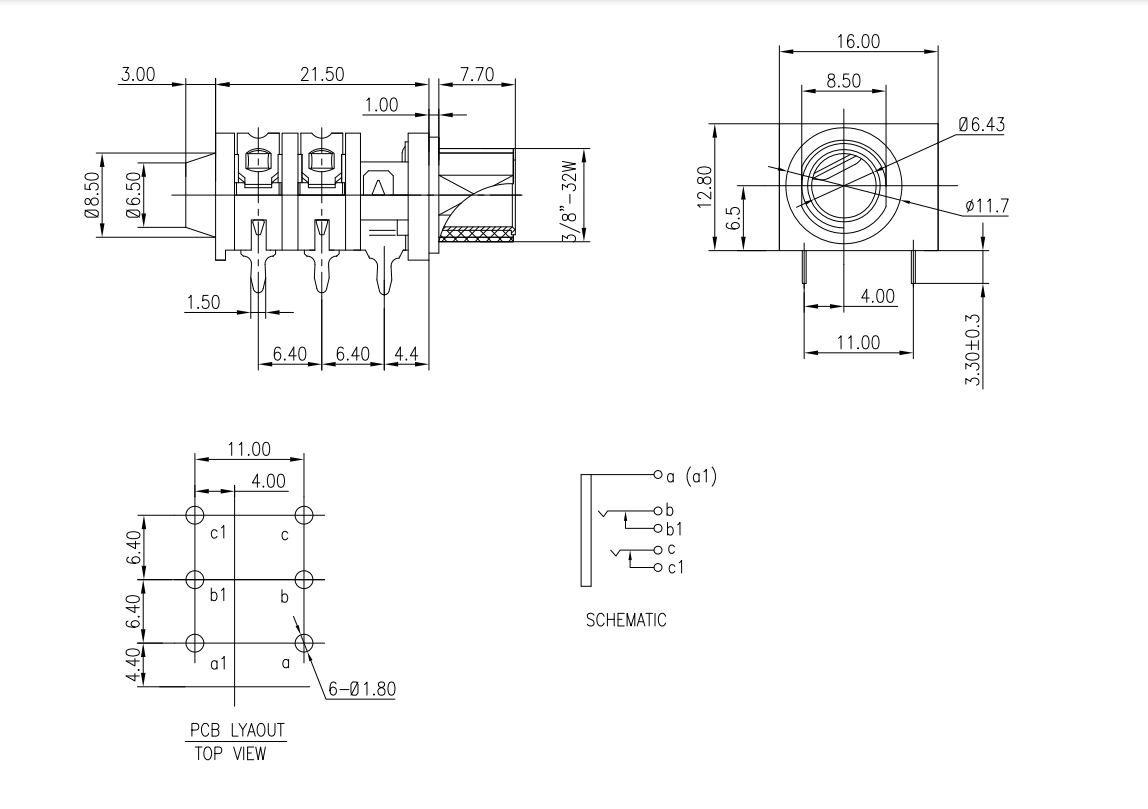

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension32.20mm*16.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Boss Katana-50 MkII Guitar Amplifier Headphone Jack's Product Operating Principle



  1. Secure Through-Hole Mounting: The DIP pins are soldered directly through the PCB, creating an exceptionally strong bond that withstands the rigors of repeated plugging and unplugging.

  2. Stereo Signal Path: This 6.35 jack is designed to route stereo audio signals (Tip, Ring, Sleeve) with high fidelity, ensuring a clean and clear signal path from input to output.

  3. Long-Life Mechanism: The internal contacts are engineered for a minimum of 5,000 cycles, guaranteeing a long and reliable operational life for the connection.


Mackie ProFX10v3 Professional Effects Mixer Headphone Jack's Product Functions



  1. Durable Audio Interface: Provides an industry-standard 1/4" port for connecting instruments, headphones, and other professional audio gear.

  2. Mechanical Stability: The through-hole design makes this female audio jack ideal for heavy-duty applications where physical durability is critical.

  3. High-Fidelity Connection: Ensures a clean audio signal with a low contact resistance of 50mΩ (Max) for pristine sound quality.

  4. Reliable Performance: Built to endure 5,000 cycles with a consistent operating force of 3-30N for a secure and tactile connection.


Audio Precision APx515 Audio Analyzer Headphone Jack's Product Applications



  1. Musical Instruments: Serves as the primary input on the Boss Katana-50 MkII Guitar Amplifier, providing a rugged and reliable connection for electric guitars.

  2. Professional Audio: Integrated into the Mackie ProFX10v3 Professional Effects Mixer as one of the main channel inputs, where its durability is essential for live sound applications.

  3. Industrial Audio Testing: Used in the Audio Precision APx515 Audio Analyzer, providing a stable and reliable connection point for testing professional audio equipment.

PJ-6346

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature




We ensure high production efficiency and ship your order within 7 days after payment.

Packaging
