Mono 6.35mm DIP Stereo Audio Jack丨PJ-6348
  • Mono 6.35mm DIP Stereo Audio Jack丨PJ-6348

Mono 6.35mm DIP Stereo Audio Jack丨PJ-6348

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6348


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

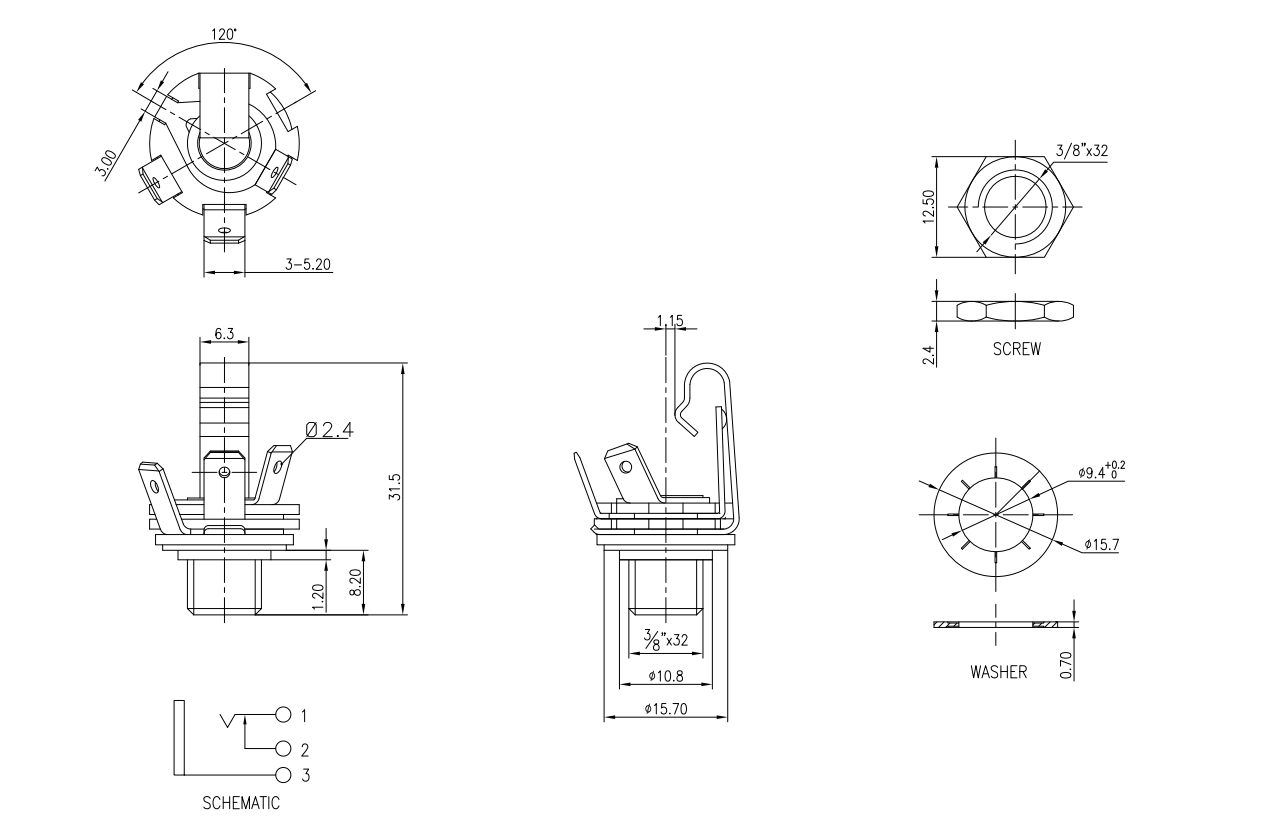

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension31.50mm*15.70mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Universal Audio Apollo Twin X Audio Interface Headphone Jack's Product Operating Principle



  1. Stable Through-Hole Connection: The DIP pins are soldered through the circuit board, creating a powerful physical bond that withstands heavy use and vibration.

  2. Clean Signal Transfer: This high-quality female audio jack is engineered to maintain signal integrity, routing stereo audio with minimal resistance (50mΩ Max).

  3. Enduring Mechanism: The internal contacts are designed for a minimum of 5,000 insertion and removal cycles, ensuring this 6.35 mm jack offers exceptional longevity


QSC TouchMix-8 Digital Mixer Headphone Jack's Product Functions



  1. Professional Audio Interface: Provides a standard 1/4-inch port for connecting professional-grade headphones, instruments, and studio equipment.

  2. Superior Durability: The through-hole mounting design makes this component exceptionally resistant to physical stress and wear.

  3. High-Quality Sound: Ensures a pristine audio signal path, making it a reliable choice for high-fidelity audio applications.

  4. Consistent Performance: A steady operating force of 3-30N provides a secure and tactile connection with every use of this 6.35 jack


Korg Minilogue XD Synthesizer Headphone Jack's Product Applications



  1. Studio Recording: Serves as the main headphone output on the Universal Audio Apollo Twin X Audio Interface, providing a durable connection for critical monitoring.

  2. Live Sound Equipment: Integrated into the QSC TouchMix-8 Digital Mixer, where its robust build is essential for withstanding the demands of live performance environments.

  3. Musical Instruments: Used as the primary output on the Korg Minilogue XD Synthesizer, offering a reliable and high-quality female audio jack for musicians.

PJ-6348

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature




We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1. How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.



Q2: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

    For example, what are the functions you need? The specification of it and which finished products will be used with it?

    It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

    We could provide the free samples to you.



Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.



Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.



Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
    requirement.
    For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
    the test instruction/ procedure.
