Durable 6P 6.35mm DIP Audio Jack丨PJ-6351
  • Durable 6P 6.35mm DIP Audio Jack丨PJ-6351

Durable 6P 6.35mm DIP Audio Jack丨PJ-6351

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6351


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

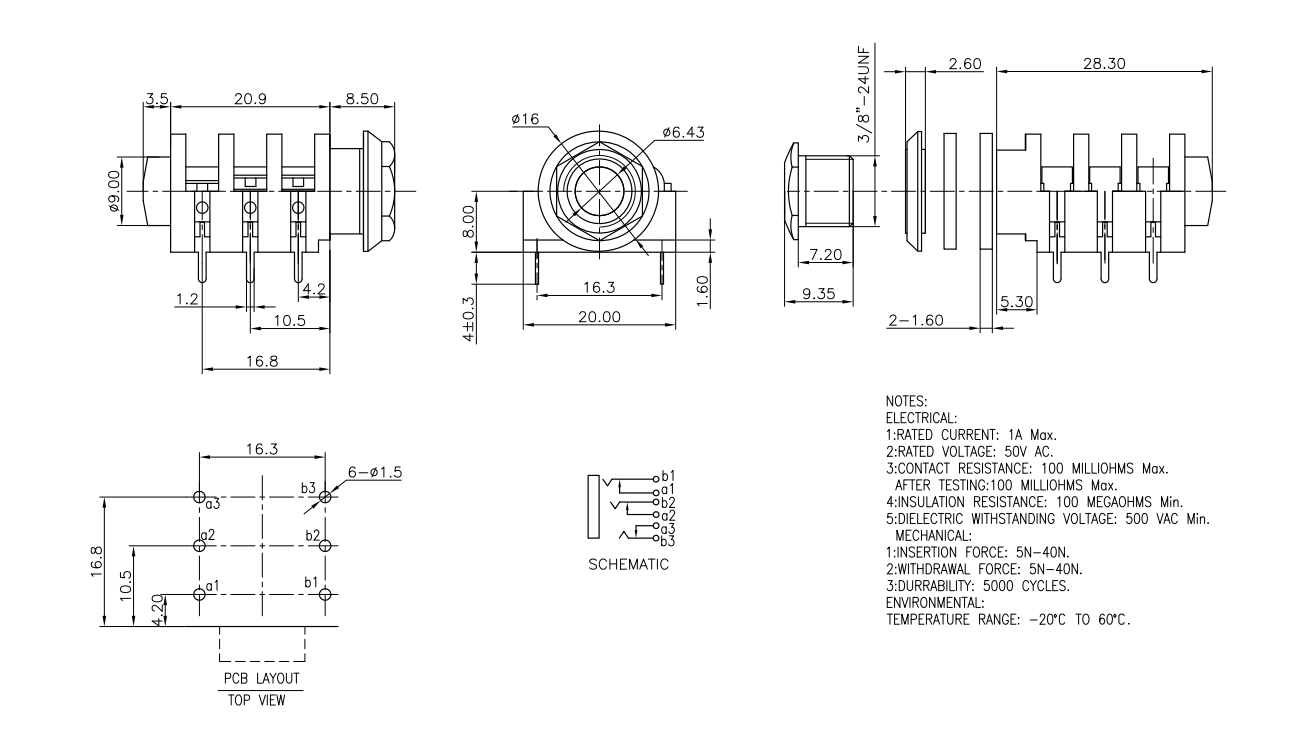

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension32.90mm*16.30mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Lexicon PCM92 Reverb and Effects Processor Headphone Jack's Product Operating Principle



  1. Mechanical Anchoring: The through-hole pins are soldered directly through the PCB, creating a robust physical bond that prevents the 6.35 jack from loosening under mechanical stress.

  2. Signal Path Integrity: This premium female audio jack routes stereo signals with high fidelity, ensuring a clean and low-resistance (50mΩ Max) path for optimal audio quality.

  3. Enduring Performance: The internal mechanism is built for a minimum of 5,000 insertion cycles, guaranteeing a reliable connection for the lifetime of the device.


Nord Stage 3 Performance Keyboard Headphone Jack's Product Functions



  1. Industry-Standard Interface: Provides a standard quarter-inch port for connecting professional headphones, musical instruments, and studio-grade audio gear.

  2. Maximum Durability: The DIP mounting style makes this 6.35 mm jack the perfect choice for high-use applications where physical robustness is essential.

  3. Pristine Audio Quality: Ensures a clean and stable signal, making it suitable for high-fidelity recording and playback systems.

  4. Secure Connection: A consistent operating force of 3-30N provides a secure and tactile mating with the plug, preventing accidental disconnections.


Keysight 33500B Series Waveform Generator Headphone Jack's Product Applications



  1. Professional Audio Processing: Serves as an input/output connection on the Lexicon PCM92 Reverb and Effects Processor, where its durability is critical in a professional studio rack.

  2. Musical Instruments: Used as the main headphone output on the Nord Stage 3 Performance Keyboard, providing musicians with a reliable monitoring point during live performance and practice.

  3. Test and Measurement: Integrated into the Keysight 33500B Series Waveform Generator as a monitor output, offering a dependable female audio jack for signal verification in a lab setting.

PJ-6351

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature





We ensure high production efficiency and ship your order within 7 days after payment.

1759028495881710

Q1:Are you a factory or trade company?

A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.



Q2: What is the turnaround time for rapid prototyping of modified designs?

A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.



Q3: How do you ensure long-term product availability for legacy systems?

A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.



Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.



Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
