Dual 6.35mm DIP Stereo Audio Jack丨PJ-6355
  • Dual 6.35mm DIP Stereo Audio Jack丨PJ-6355

Dual 6.35mm DIP Stereo Audio Jack丨PJ-6355

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-6355


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

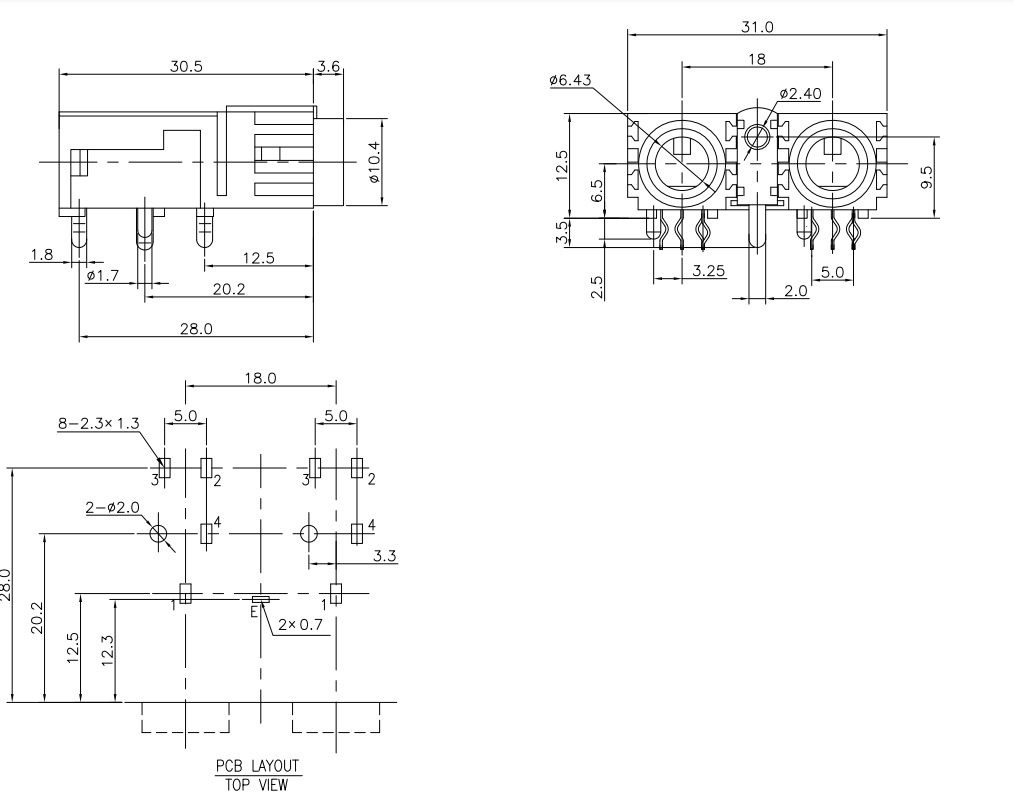

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension31.00mm*18.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


PreSonus HP4 Headphone Amplifier Headphone Jack's Product Operating Principle



  1. Dual Interface: This component houses two independent 1/4 Inch stereo jacks in a single footprint, allowing for compact and efficient PCB design without sacrificing connectivity.

  2. Mechanical Stability: The through-hole pins create a powerful solder bond to the circuit board, making this dual female audio jack extremely resistant to physical stress from repeated use.

  3. Signal Fidelity: Each port is designed to route audio signals with high clarity and minimal resistance (50mΩ Max), preserving the integrity of the sound.


Strymon BigSky Reverberator Pedal Headphone Jack's Product Functions



  1. Space-Saving Design: Provides two stereo 1/4 Inch connections in a compact form factor, ideal for devices with limited panel space.

  2. Unmatched Durability: The DIP mounting style ensures this 6.35 jack can withstand the rigors of studio, stage, and industrial environments.

  3. Versatile Connectivity: Suitable for a range of applications, including dual headphone outputs, stereo line-level inputs, or stereo effects loops.

  4. Long-Term Performance: Rated for a minimum of 5,000 insertion and removal cycles, guaranteeing a long and dependable service life.

Behringer Neutron Semi-Modular Analog Synthesizer Headphone Jack's Product Applications



  1. Professional Audio: Serves as the dual headphone outputs on the PreSonus HP4 Headphone Amplifier, allowing multiple users to monitor an audio source simultaneously.

  2. Musical Instruments: Used as the stereo L/R outputs on the Strymon BigSky Reverberator Pedal, providing a durable connection for routing stereo effects to an amplifier or mixer.

  3. Studio Equipment: Integrated into the Behringer Neutron Semi-Modular Analog Synthesizer as part of its patch bay, where its durability is essential for frequent re-patching.

PJ-6355

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature





We ensure high production efficiency and ship your order within 7 days after payment.

Packaging


Q1: How do you manage production delays caused by unforeseen supply chain disruptions?

A: Our risk-mitigation plan includes buffer stock for critical components and real-time supplier escalation. Clients receive weekly updates and adjusted timelines within 24 hours of disruption identification.



Q2: Are raw materials sourced from conflict-free or ethically certified suppliers?

A: Yes, we adhere to the Responsible Minerals Initiative (RMI) and provide SMETA-audited supply chain reports. All tantalum/tin suppliers are certified conflict-free via OECD Due Diligence.



Q3: How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.



Q4: Can you modify existing designs to reduce electromagnetic susceptibility (EMS) in high-noise environments?

A: Design revisions like shielded ferrite bead integration or ground plane optimization are available. Our engineers provide EMS simulation reports pre-production.



Q5: What logistics partners do you work with for global distribution?

A: We partner with DHL, FedEx, and regional specialists like SF Logistics (Asia). Customs clearance, HS code labeling, and door-to-door tracking are included.
