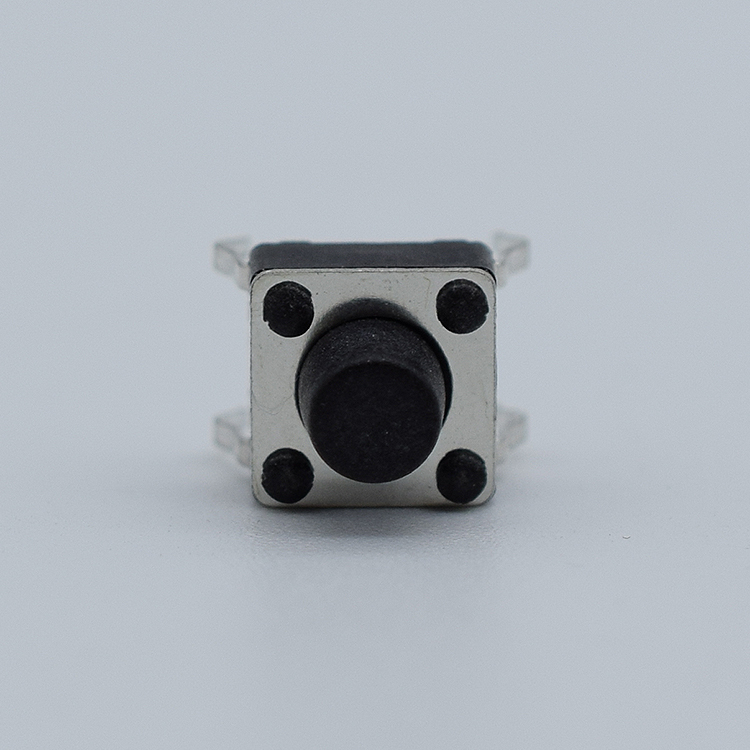

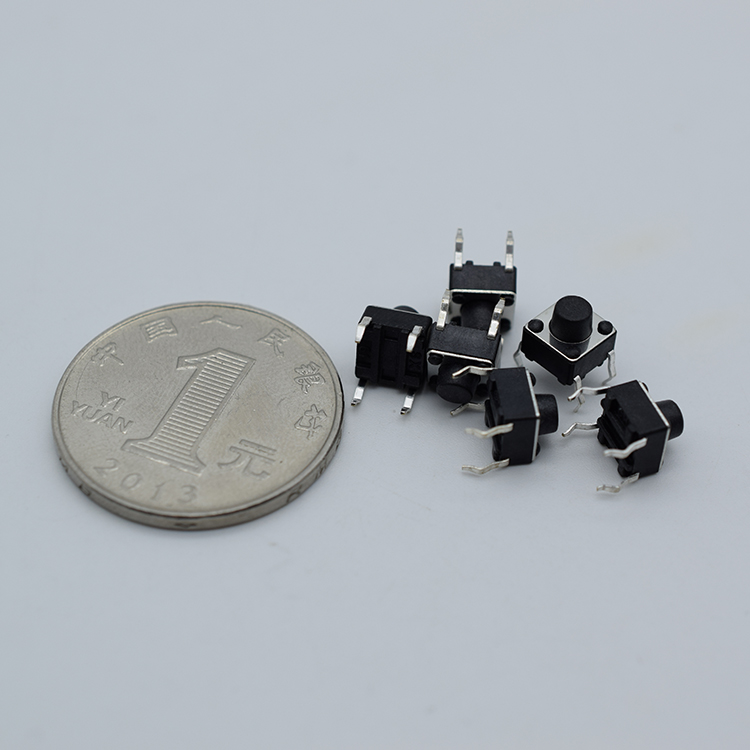

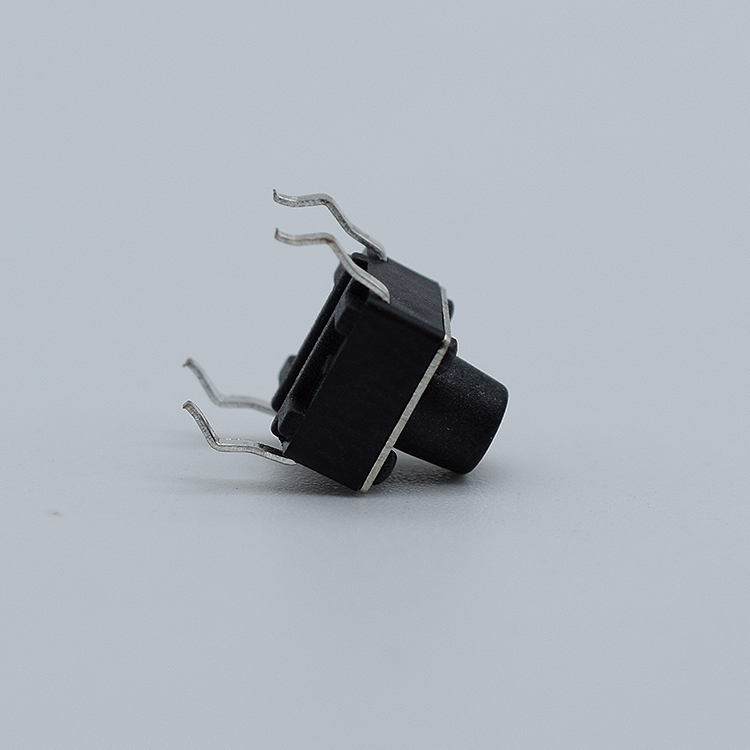

6*6 Light Touch Switch

6*6 DIP Tact Switches' Description

The light touch switch is a magnetic adsorption travel switch operated by a very small and very flexible spring. Light touch switch is a thin contact distance and fast moving arrangement, with the rule of travel and the rule of the force of the switch action contact arrangement, covered by the shell, its external drive rod of a switch, because the switch contact distance is relatively small, so the name of light touch switch, also called active switch. Electrical text symbol: SM

Use of the 6*6 tap switch

Touch switch in the need to repeatedly change the circuit of the equipment for automatic control and safety protection, widely used in electronic equipment, instrumentation, mining, power system, household appliances, electrical equipment, as well as aerospace, aviation, ships, missiles, tanks and other military fields, Wuxi City different switching electrical appliances Co., Ltd. variety is now widely used in the above fields, although the switch is small, But it has no substitute effect. Now the tap switch on the domestic market according to the different application requirements, the mechanical life of the switch is 3W to 1000W times, generally 10W, 20W, 50W, 100W times, 300W times, 500W times, 800W times, the domestic general use of beryllium bronze, tin bronze, stainless steel wire as a reed, Foreign ALPS can do up to 1000W, their reed is made of rare metal titanium.

Classification of light touch switches

The variety of light touch switch is complex, there are hundreds of internal structures, according to the volume of ordinary type, small, ultra-small; According to the protection function, there are waterproof, dustproof, explosion-proof type; According to the breaking method, there are single link type, double link type and multiple link type. Now there is a strong disconnect light touch switch (when the reed of the switch does not work, external force can also make the switch off); According to the breaking talent points, there are ordinary type, DC type, micro current type, large current type. According to the application environment, there are ordinary type, high temperature resistant type (250 ° C), ultra-high temperature resistant ceramic type (400 ° C) light touch switches generally take the root type without auxiliary pressing accessories, and derived small stroke type and large stroke type. According to the need to participate in different auxiliary press accessories, according to the different press auxiliary switch can be divided into button type, reed roller type, lever roller type, short boom type, long boom type and other methods.

Principle of light touch switch

External mechanical force through the transmission element (press the pin, button, lever, roller, etc.) the force effect on the action reed, when the action reed displacement to the critical point to produce instantaneous action, so that the end of the action reed and the fixed contact quickly connected or disconnected.

When the effect force on the transmission element is removed, the action reed produces reverse action force, and when the reverse stroke of the transmission element reaches the action critical point of the reed, the reverse action ends instantaneously. The contact distance of the tap switch is small, the action stroke is short, the power is small, and the network is activated on and off. The operating speed of the moving contact has nothing to do with the operating speed of the transmission element.

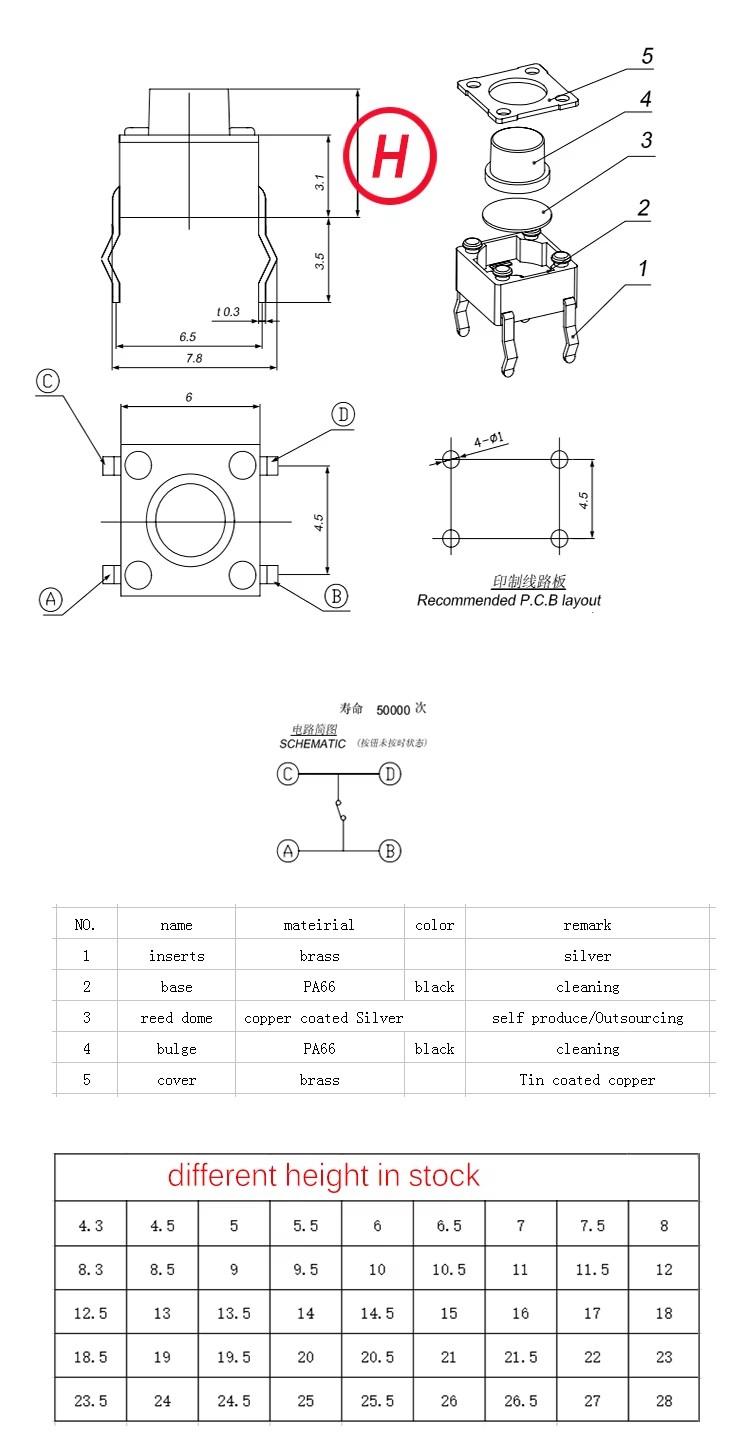

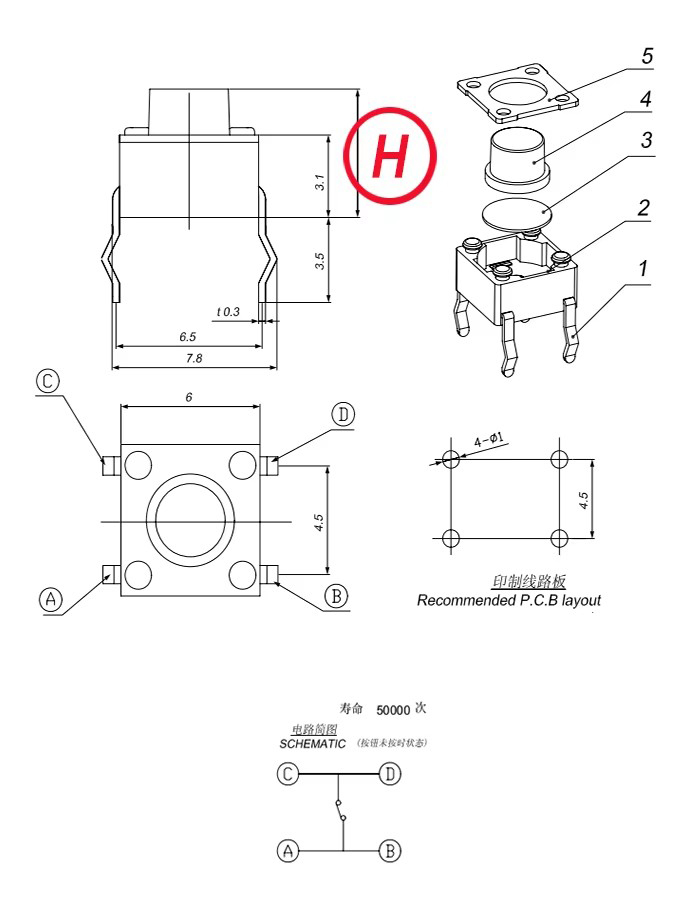

The light touch switch has a thin contact distance and quick action arrangement, and the contact arrangement of the switching action with a regular stroke and force is covered by the shell, and the external transmission is provided, and the shape is small. The following is an example of a typical tap switch structure. The touch switch is composed of five major components.

1. Automotive Industry

Light touch switches enable sleek, modern dashboards with haptic feedback. Their silent operation and customizable illumination enhance driver experience while providing reliable control for infotainment, climate, and window systems.

2. Medical Equipment

In medical devices, these switches offer easy-to-clean, seamless surfaces crucial for hygiene. Their low actuation force reduces user fatigue, while tactile response and LED indicators ensure precise operation in critical care environments.

3. Smart Home Systems

Modern home automation utilizes light touch switches for minimalist control panels. They provide silent operation with customizable RGB lighting, creating intuitive interfaces for lighting, security, and climate control systems.

4. Industrial Control Panels

Industrial applications benefit from their dust/water resistance (IP ratings) and durability. The instant response and clear visual feedback make them ideal for machinery control in manufacturing and processing facilities.

5. Consumer Electronics

From gaming peripherals to kitchen appliances, light touch switches deliver sophisticated user interfaces. Their slim profile enables sleek designs while providing responsive control with programmable functions.

These applications demonstrate how light touch switches combine aesthetic appeal with functional reliability across diverse sectors.

Q: What is a 6x6 Light Touch Switch?

A: A 6x6 Light Touch Switch is a compact, low-profile momentary switch, typically measuring 6mm x 6mm, that activates with a very gentle press, offering tactile or non-tactile feedback.

Q: What are its key advantages?

A: Its primary benefits are a sleek, modern design, space-saving size, and a quiet, satisfying actuation perfect for user interfaces in consumer electronics.

Q: Where is it commonly used?

A: You'll find these switches in applications like control panels, medical devices, automotive dashboards, and high-end home appliances where reliable, low-force input is needed.

Q: Is it different from a mechanical keyboard switch?

A: Yes. While both are tactile, a 6x6 light touch switch is designed for a much lighter actuation force and is often sealed to be dust and water-resistant for panel use.

Q: What does the "Light Touch" mean?

A: "Light Touch" refers to the minimal physical pressure required to activate the switch, providing a smooth, effortless user experience without a heavy "click."
