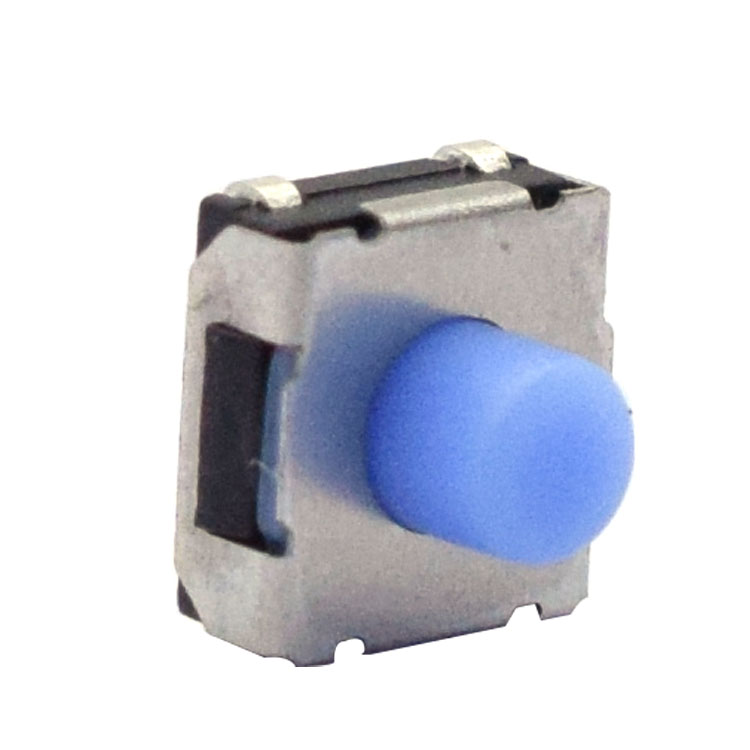

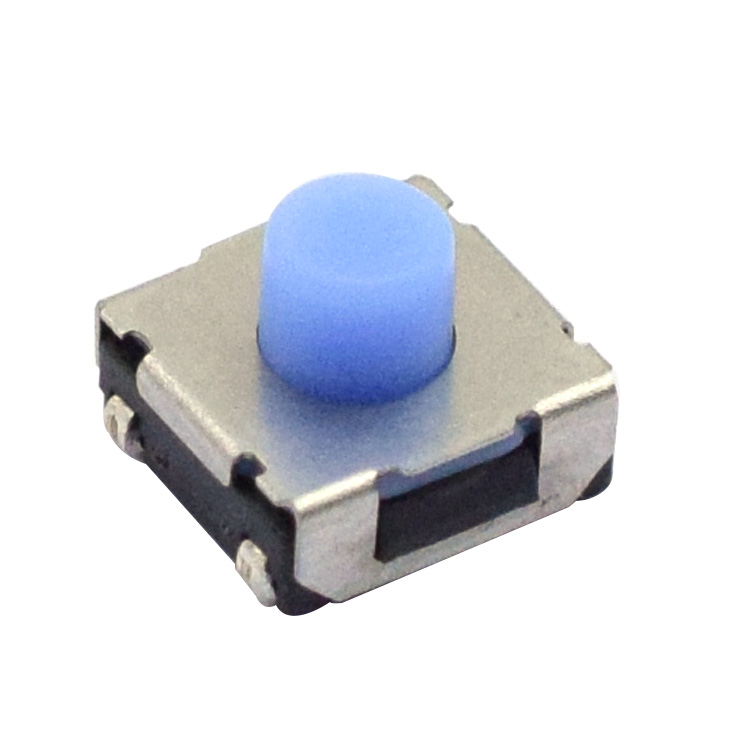

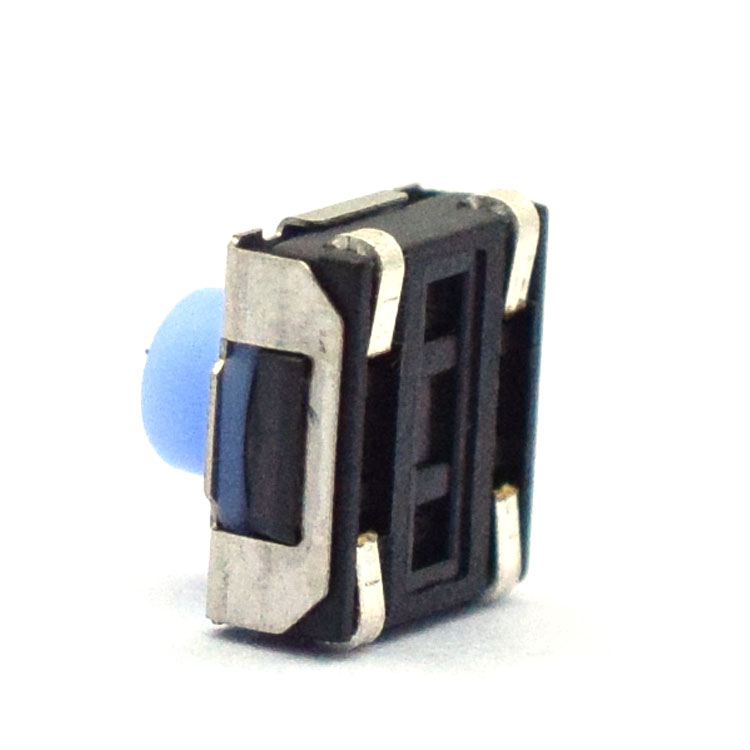

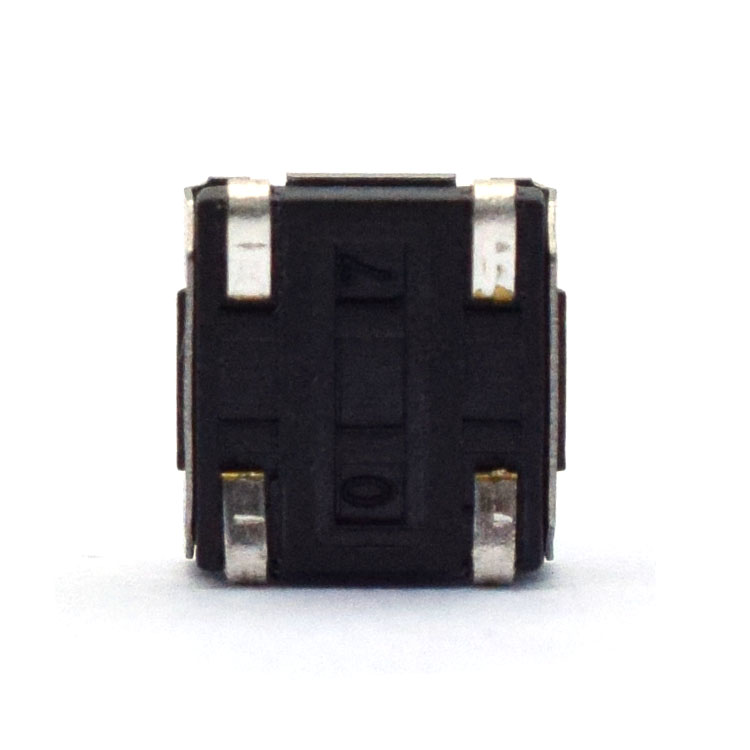

6.2*6.2 U-Foot Silicone Tactile Switch

Product Information

Name:6.2*6.2 U-Foot Silicone Tactile Switch

Model:TK-1062U

U-foot 6.2*6.2 silicone tact switches' Technical Parameters

1.Rated current:50mA.12V DC

2. Insulation resistance: 100m2 min.100V DC

3. Dielectric strength: 250V AC for 1min

4. Contact resistance: 50mΩ max

5. Operating temperature: -30℃~+85℃℃.

6. Key life: 50,000 Cycles min

7.Operating force:260gf+30gf

8.Operating stroke:0.25±0.1mm

Pack- foot 6.2*6.2 silicone tact switches' Features

1.Improve the mounting density of PCB components.

2. Contacts are completely sealed to improve reliability.

3. Adapt to reflow soldering.

All materials meet ROHS requirements

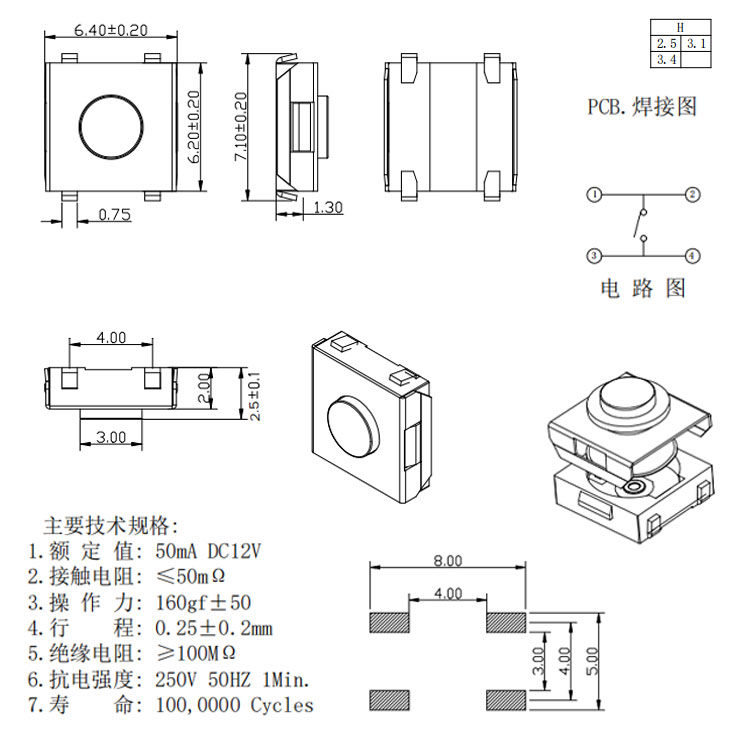

Cross feet 6.2*6.2 silicone tact switches' drawing

Main technical specifications:

1. Rated Current: 50mA DC12V

2. Contact Resistance: <50mΩ

3. Operating Force: 160gf±50

4. Stroke: 0.25±0.2mm

5. Insulation Resistance: ≥100MΩ

6. Dielectric Strength: 250V 50Hz 1min

7. Lifespan: 1,000,000 cycles

Consumer Electronics: These 6.2x6.2mm switches are ideal for compact devices like gaming controllers, remote controls, and smartwatches. Their silicone construction provides a quiet, tactile response and reliable performance for frequent user interaction.

Medical Equipment: The sealed, durable nature of U-foot silicone switches makes them perfect for medical devices. They resist moisture, chemicals, and repeated sterilization, ensuring hygiene and reliability in critical environments like hospital beds and diagnostic tools.

Automotive Controls: Used in dashboards, steering wheels, and infotainment systems, these tactile switches offer excellent feedback to drivers. Their robust design withstands temperature variations and vibrations, crucial for the demanding automotive interior environment.

Industrial Control Panels: In factories and machinery, these switches provide a dependable interface for operators. The tactile bump confirms input, even when wearing gloves, while the silicone material offers resistance against dust, oils, and harsh conditions.

Home Appliances: From microwave ovens and washing machines to smart home panels, these compact switches enhance user interface design. They deliver a satisfying click feel and long-term durability for everyday household use.

Telecommunications & Networking: Routers, servers, and communication devices utilize these switches for reset buttons, mode selection, and other control functions. Their stability and precise actuation are essential for maintaining consistent network performance.

Q: What is the actuation force of 6.2x6.2mm U-Foot silicone tactile switches?

A: These switches typically feature a light to medium actuation force, commonly ranging from 160gf to 250gf, providing a crisp, tactile feedback.

Q: Are these switches suitable for surface-mount technology (SMT) assembly?

A: Yes, the 6.2x6.2mm U-Foot design is specifically engineered for compatibility with standard SMT processes and reflow soldering.

Q: What is the expected lifespan of a silicone tactile switch?

A: High-quality silicone tactile switches can endure over 1,000,000 actuations, ensuring long-term reliability for consumer electronics.

Q: Do they offer dust or water resistance?

A: Many variants feature a sealed silicone rubber cover, offering protection against dust, moisture, and other contaminants.
