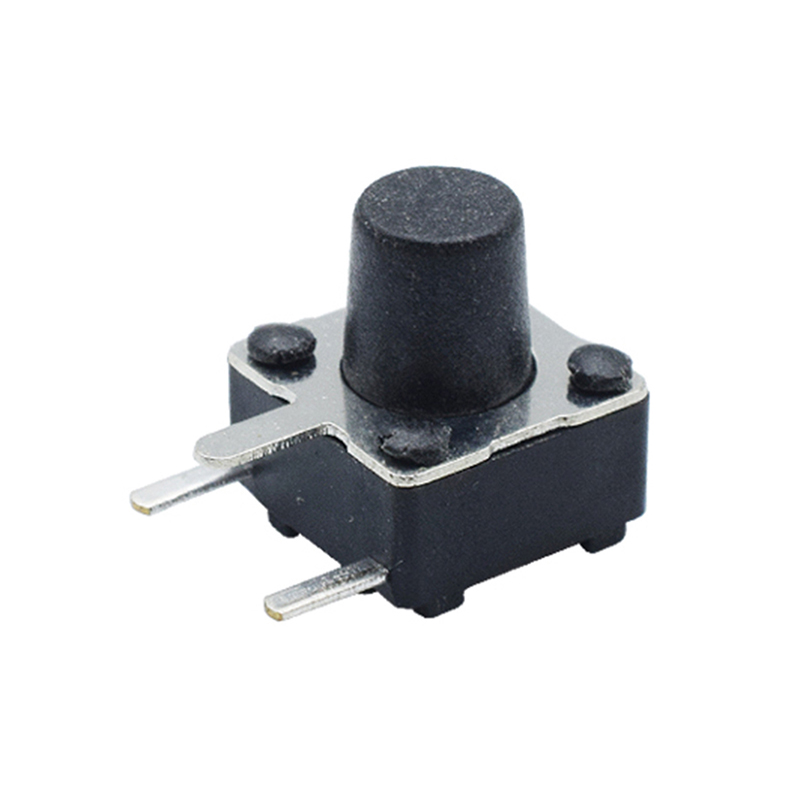

3P 6*6 Tact Switch

3P 6*6 Tact Switches' Wiring

Connect the wires to the corresponding terminals of the light touch switch.

Generally speaking, the 3 legs of the light-touch switch may represent the power wire (L), the zero wire (N) and the ground wire (PE) respectively. However, the specific wiring should also refer to the specification or wiring diagram given by the manufacturer.

When wiring, make sure that the wires are tightly connected to the pins and not easily loosened.

Soldering (if required):

If soldering is required, please use a soldering station for soldering to ensure the quality of soldering.

During soldering, avoid adding loads to the terminals to avoid loosening, deformation or deterioration of electrical characteristics.

6*6 3P flick switches' Application

Medical equipment: such as thermometers, sphygmomanometers, hospital call systems, etc., light touch switches play a key role as buttons in these devices, which are easy to be operated by medical staff and patients.

Digital products: such as digital SLR, digital video camera, etc., the light touch switch is often used to control the switch, shooting, focusing and other functions of these devices.

Computer products: such as voice recorder, camera, etc., touch switch in these devices used to control the switch, recording, photography and other functions.

Communication products: such as building equipment, cell phones, telephones, car phone, home phone, PDA, etc., touch switch used to control the call, hang up, volume adjustment and other functions.

Fitness equipment: such as massage chairs, treadmills, fat-reducing motorcycles, etc., touch switches are used in these devices to control the start, stop, speed adjustment and other functions.

Security products: such as monitors, visual intercoms, monitors, etc., the light touch switch is used to control the switch of the equipment, screen switching and other functions.

Audio-visual products: such as VCD, MP3/4, DVD, stereo, etc., the flick switch is used to control the play, pause, volume adjustment and other functions.

Household appliances: such as electronic fat scale, electronic body scale, television sets, rice cookers, electric fans, electronic kitchen scales, microwave ovens, etc., the light touch switch in these devices play a role in controlling the switch, adjusting the mode and so on.

Electronic toys: Flick switches are also commonly used in electronic toys to control the switch, sound, light and other functions of the toy.

Remote control: such as point roll-up door remote control, vehicle remote control, home security merchandise remote control, etc., the flick switch is used to control the remote switch, operation and other functions of the equipment.

6*6 3P light touch switch is widely used in many fields due to its small size, light weight, easy operation and other characteristics. At the same time, the performance requirements of light touch switches for equipment in different fields are also different, so they need to be considered according to specific application scenarios when choosing and using them.

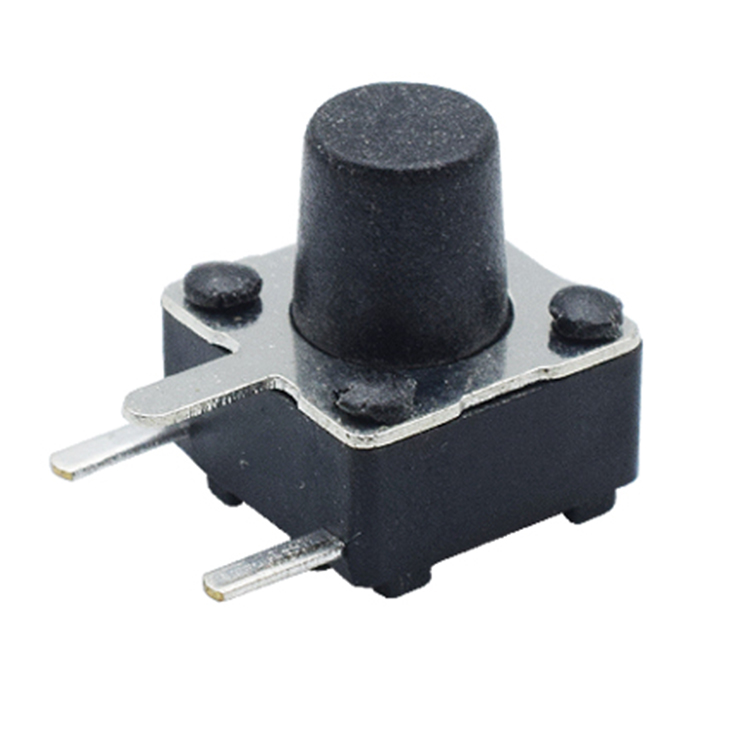

3P 6*6 Tactile Switches' Display
