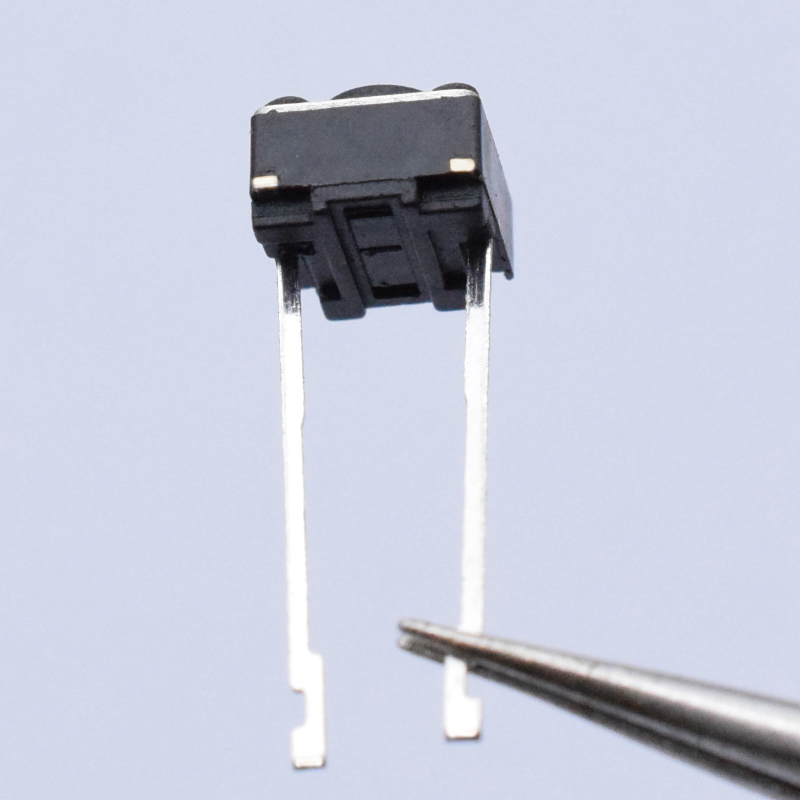

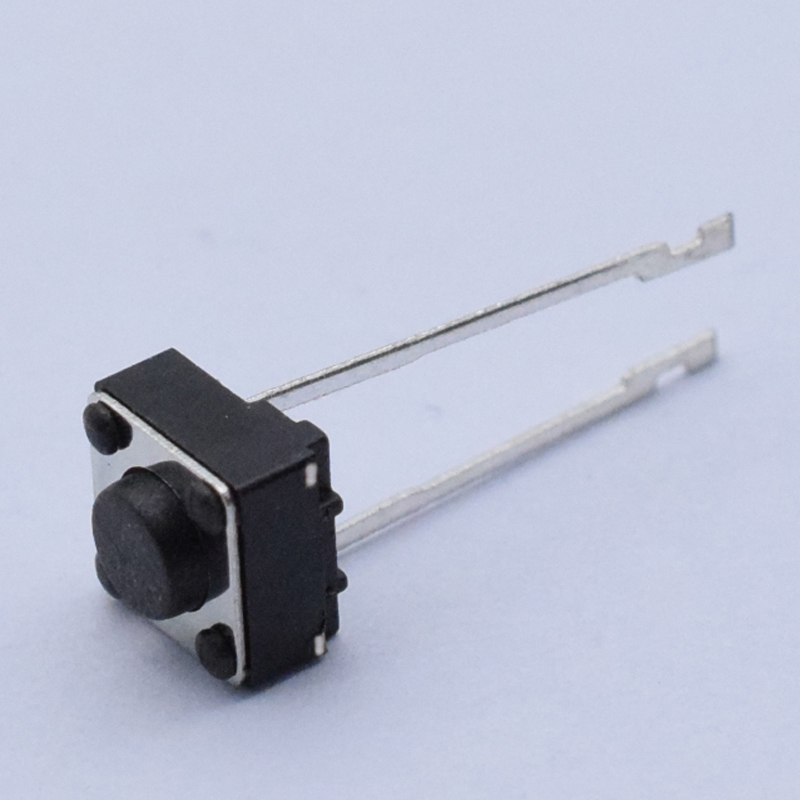

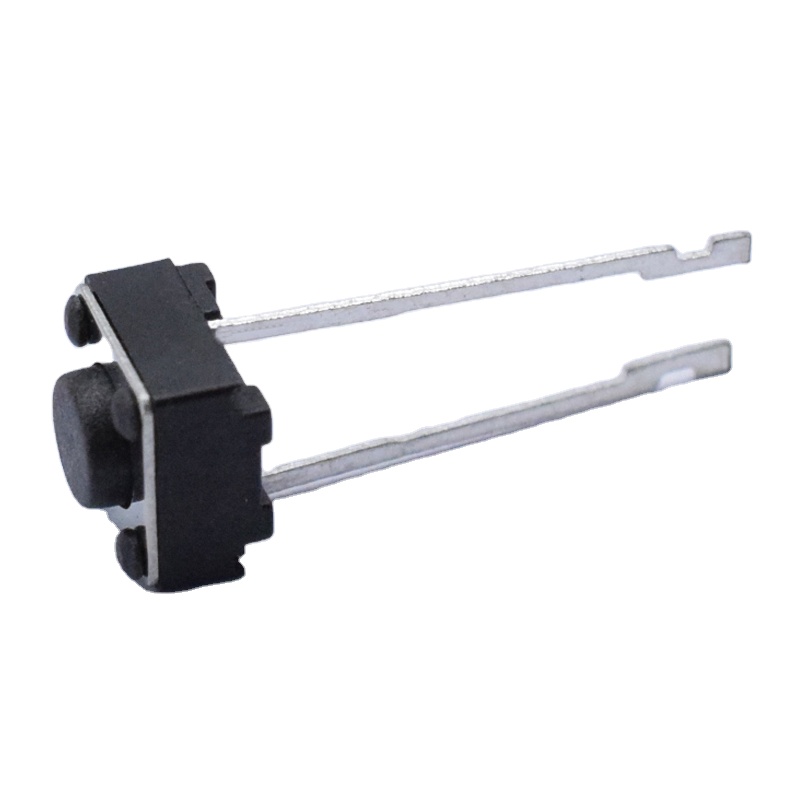

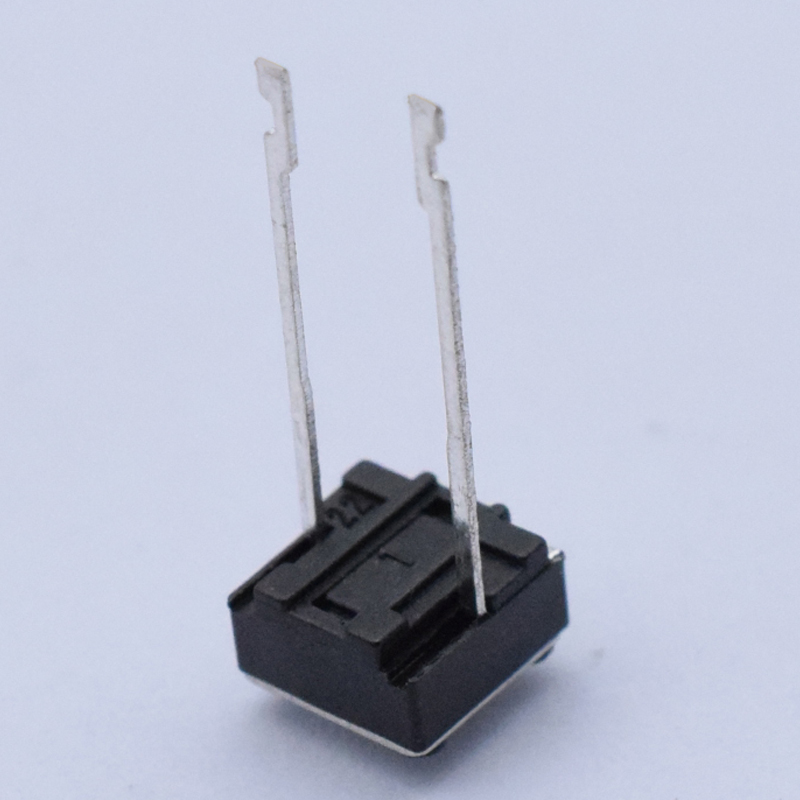

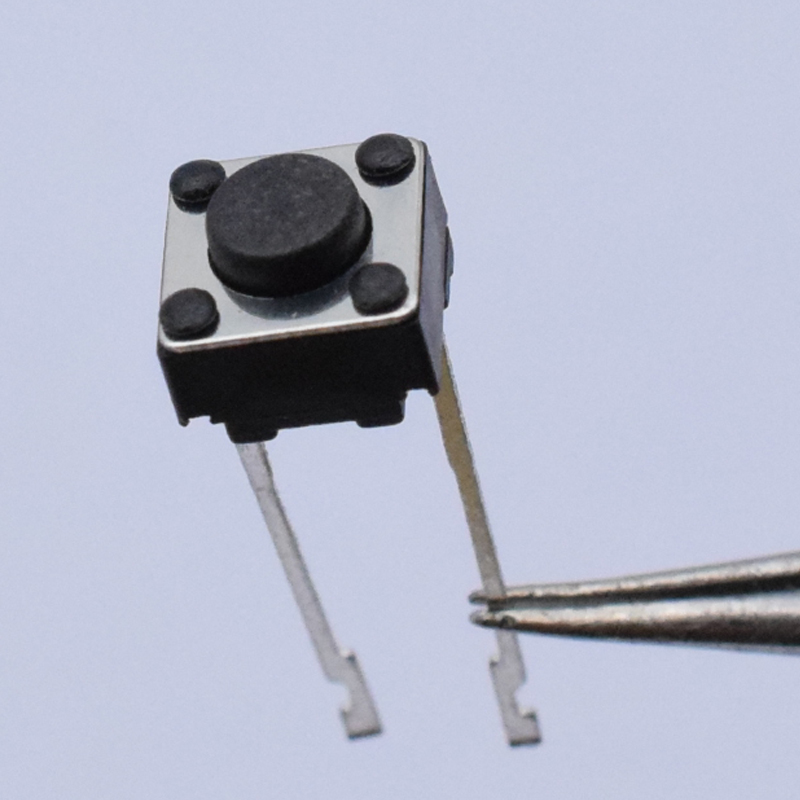

2 Pin DIP Tact Switch is an electronic Switch, belonging to the class of electronic components. 2P 6*6 light touch switch is widely used in various electronic equipment because of its small size, light weight and easy operation
2P DIP Tact Switches' Operating Principle

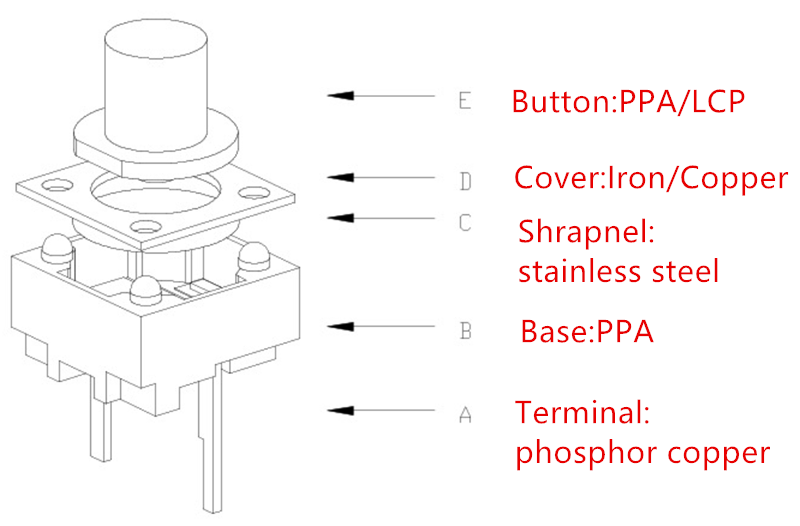

1. Basic composition: 2P 6*6 touch switch is usually composed of insert, base, shrapnel, button, cover plate and other components.
2.Working principle: Its internal structure depends on the force of the metal shrapnel to achieve the opening and closing. When in use, gently press the switch button to make the switch on, release the hand when the switch is disconnected.
2P 6*6 Touch Switches' Features
Excellent contact: the terminal is made of phosphor copper, sufficient material, good conduction performance
Selection materials: From the terminal base shrapnel cover to the keys, each part of the material is strictly selected
Non-standard customization: The shape, height and color of the keys can be customized
The number and height of the terminals can be customized
The materials used in each part can be customized as required
Simple and safe operation
Superior performance: This touch switch is cold resistant and high temperature resistant

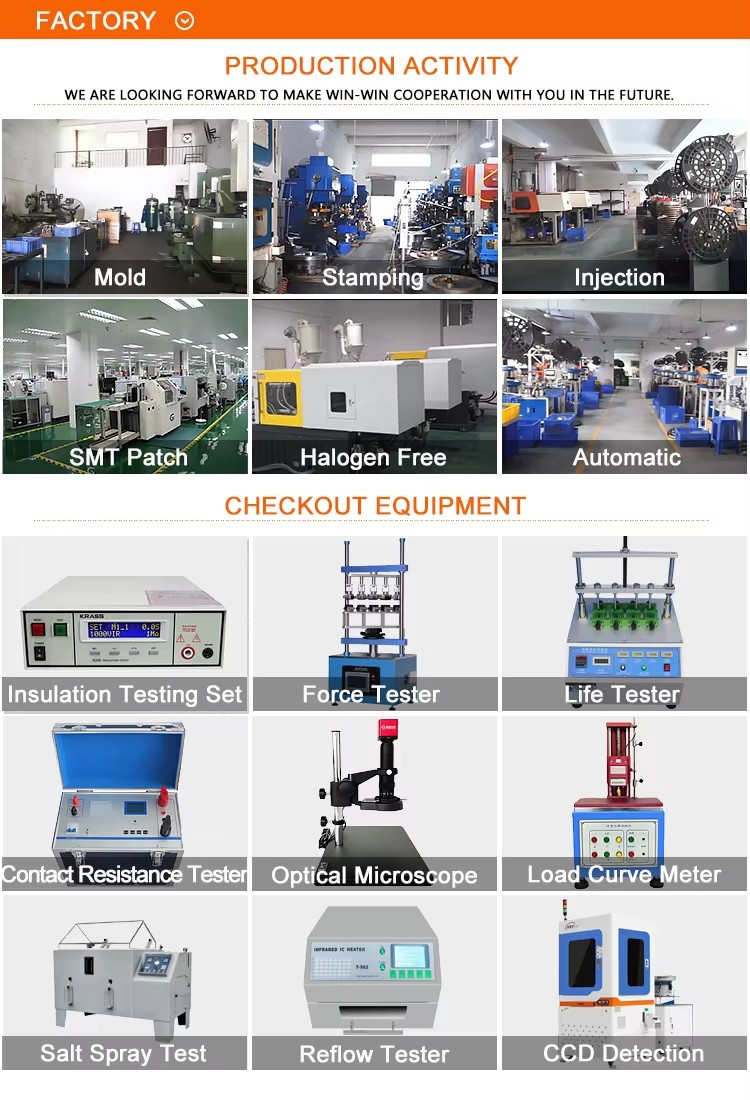

Tact Switches' Workshop and Tester
We have a complete production line and perfect product testing system, complete production and testing equipment to ensure product quality
| Name | 6*6*5.5mm Micro Switch |
| Package | 1000pcs/bag |
| Pin Length | 13.5mm |
| Color | Black |
| Temperature | -10 --60℃ |
| Withstand Voltage | AC250V (50Hz)/min |
| Rated Load | DC 12V 0.5A |
| Actuating Force | 100-300gf |
| Contact Resistance | ≤0.03Ω |
| Insulation Resistance | ≥200Ω |
The 2P 6*6 Tactile Switches' Drawing

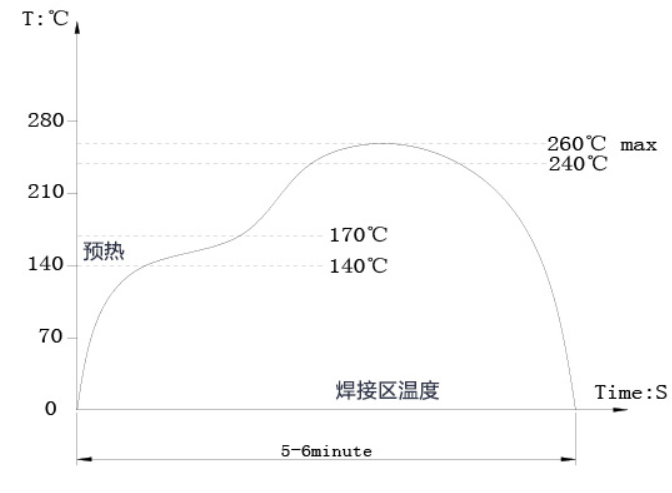

The 2P 6*6 Tact Switches' Temperature Curve
