Switch Series Product Collection KKG Developing with the Green Planet
Language
SMT Silicone Tact Switches' Paramater
Contact Rating:50mA, 12V DC
Contact Resistance:100mΩ max.
InsulationResistance:100MΩ min. 100V DC
Dielectric Strength:100V AC/1 minute
Operating Force :100gf ± 50gf; 160gf± 50gf; 260gf ± 50gf
Travel :0.20 ± 0.1mm
Operating Life:≥100,000 Cycles

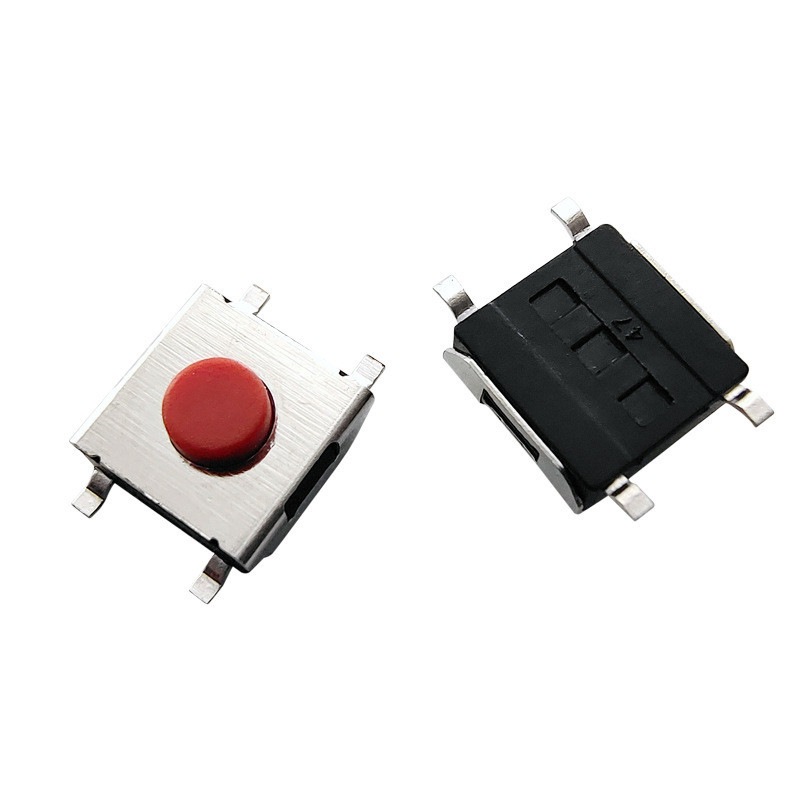

6.2x6.2mm On Off Tactile Switches' Characteristic
High operating force of 4N
A long operational life of 500,000 cycles.
Ultra-Thin Tactile Switches
Surface mount switches with sealed construction
Meets the IP67 rating
High contact reliability in dusty environments
As the innovative use of metal contacts,Both quiet operation and excellent operating feel are achieved
6*6 Silicone Tact Switches' Application
The TACT Switch is designed for use in automotive applications such as steering wheels and audio systems.
The series is suitable for other uses such as industrial equipment and metrology instruments.
Previous: dip push button tact tactile switch
Next: DIP 6.2*6.2 Tact Switch
