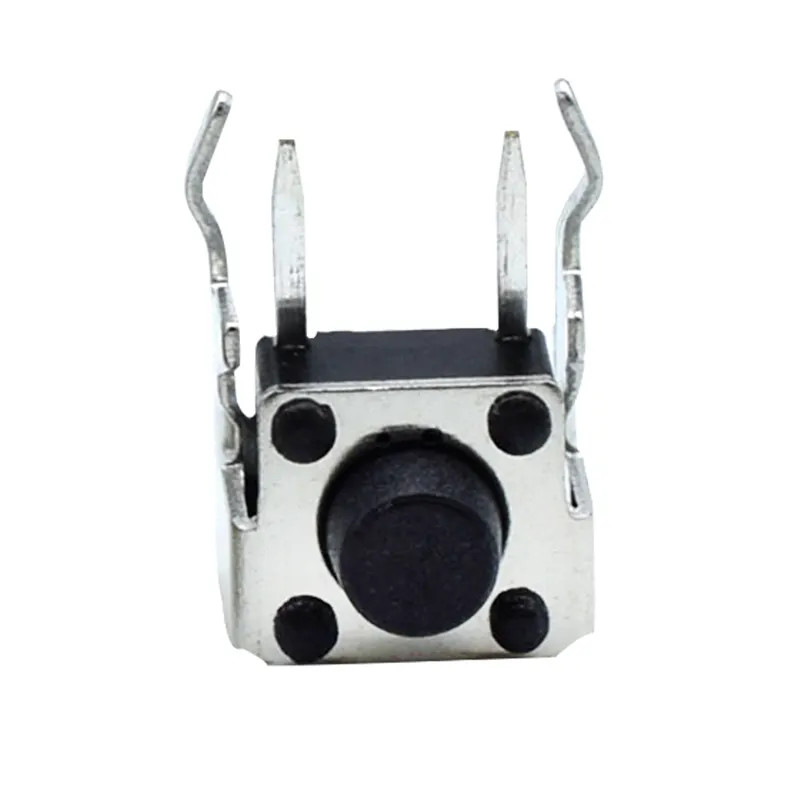

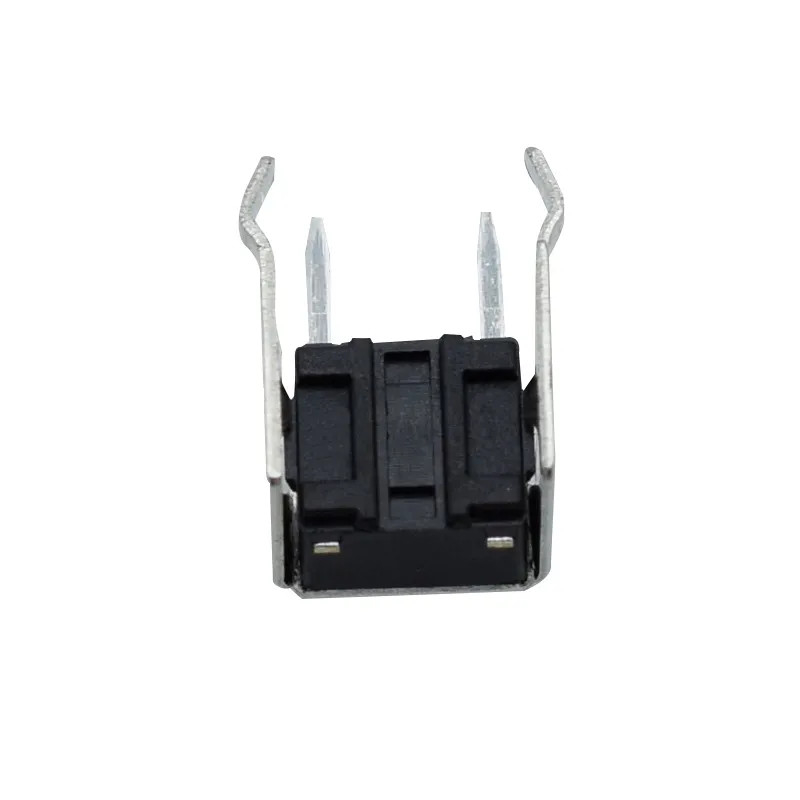

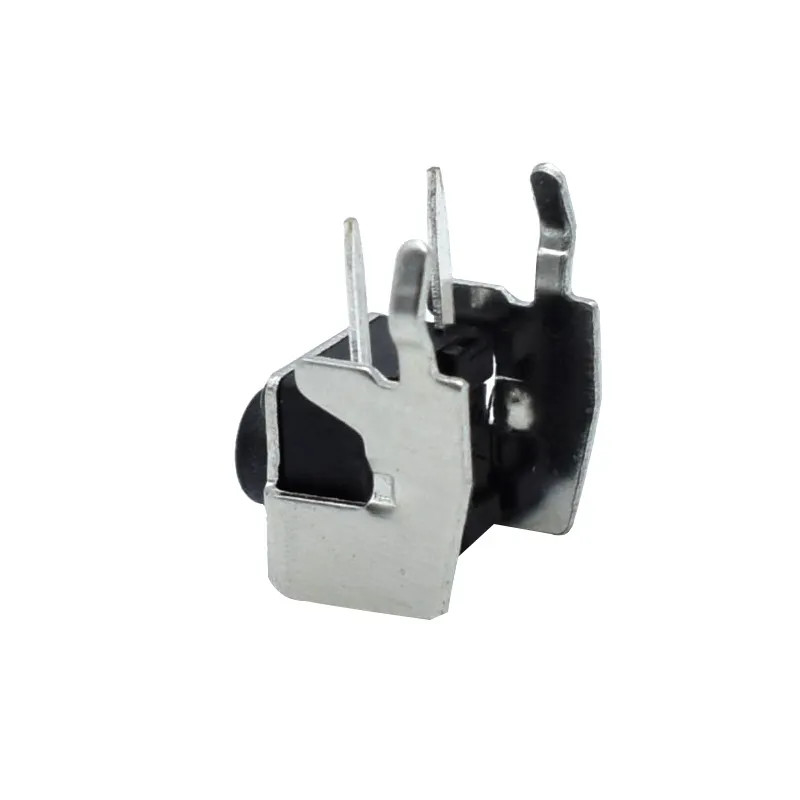

6*6 Bracket Tact Switch

Usually we will have a touch Switch with four pins, which is named the stand. The bracket Tact Switch, as the name suggests, is used for stabilizing, so this switch is also called the bracket tap switch.

Why do we need the Bracket Touch Switch?

Most of its protruding bracket parts are used to play a very stable and stable role in the installation process. To prevent him from moving around in the process of making the product, in the process of contact between the switch and its shell, if the switch becomes a phenomenon that is very easy to move, it is very easy to lead to the phenomenon of the switch of the product, so the existence of this bracket is also very necessary.

The reason why this kind of bracket tap switch can be welcomed by people is precisely because he has these roles to make people accept and use it more.

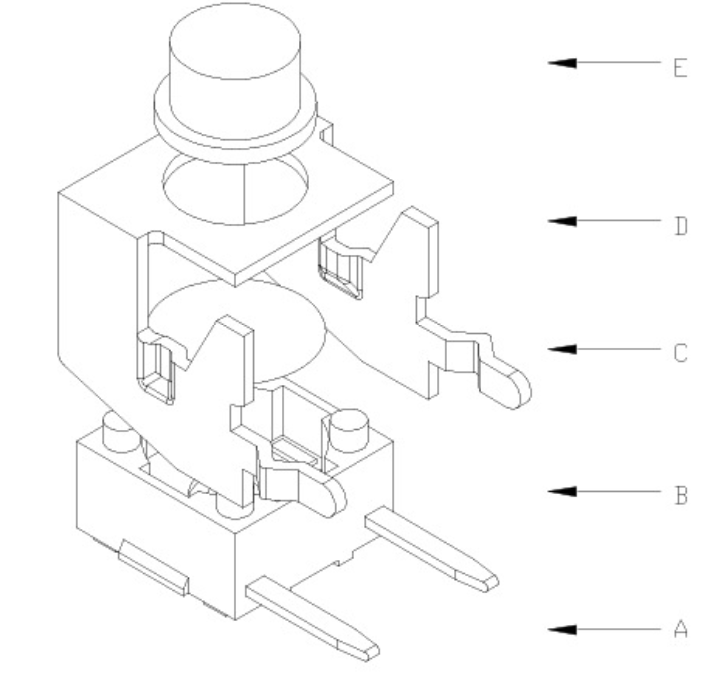

The 6*6 Tact Switches' Structure

The Button of the bracket tact switches' material is PPA/LCP.

The material of bracket is Silver-plated copper.

The shrapnel that touches the switch is made of stainless steel

The bracket 6*6 tap switches' material is PPA.

The terminal material of the tap switch is phosphor copper.
