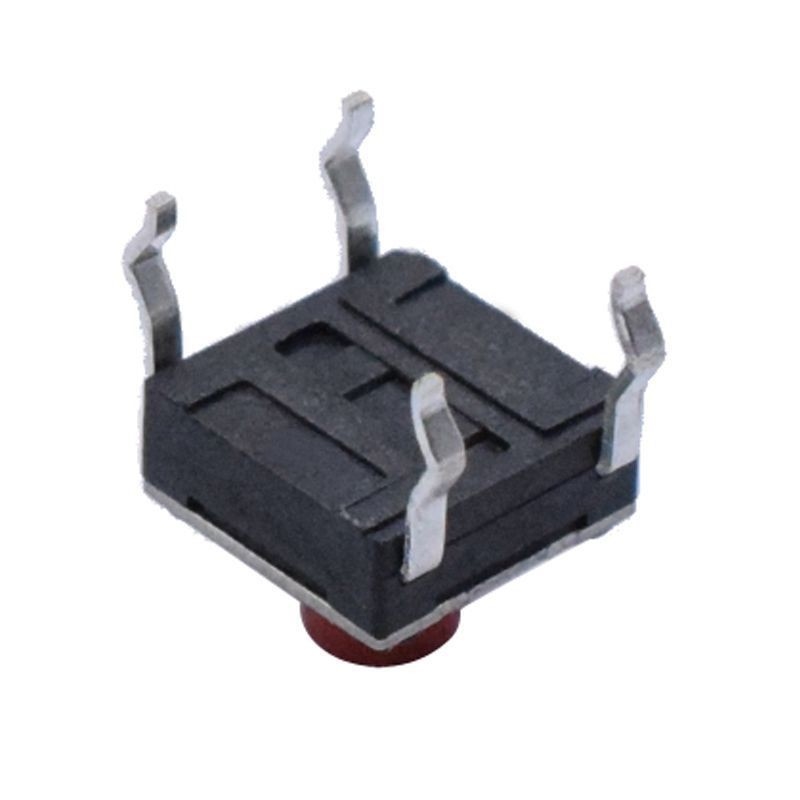

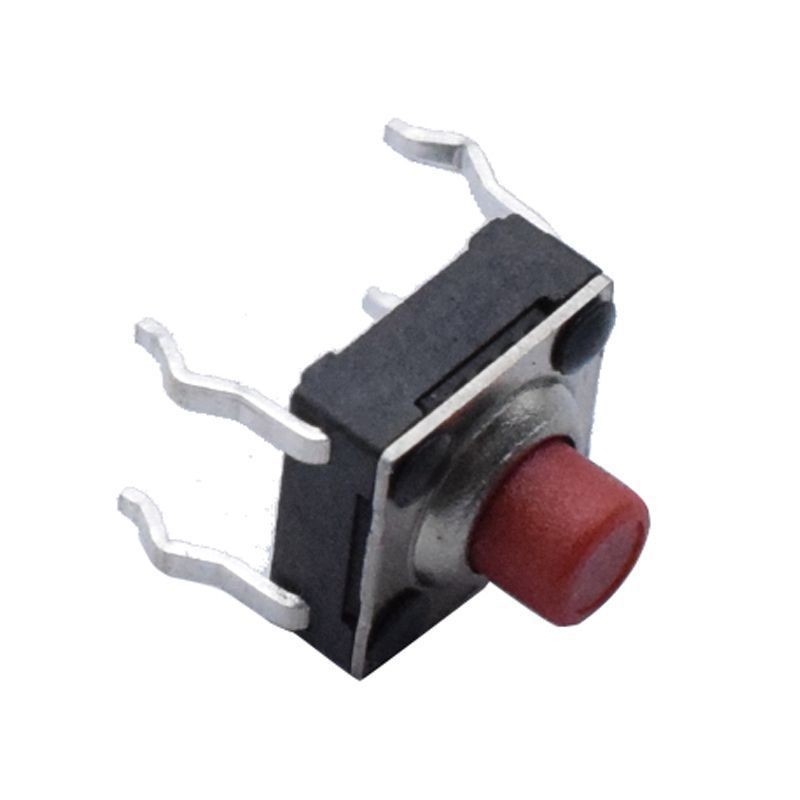

Waterproof Red Button Switch

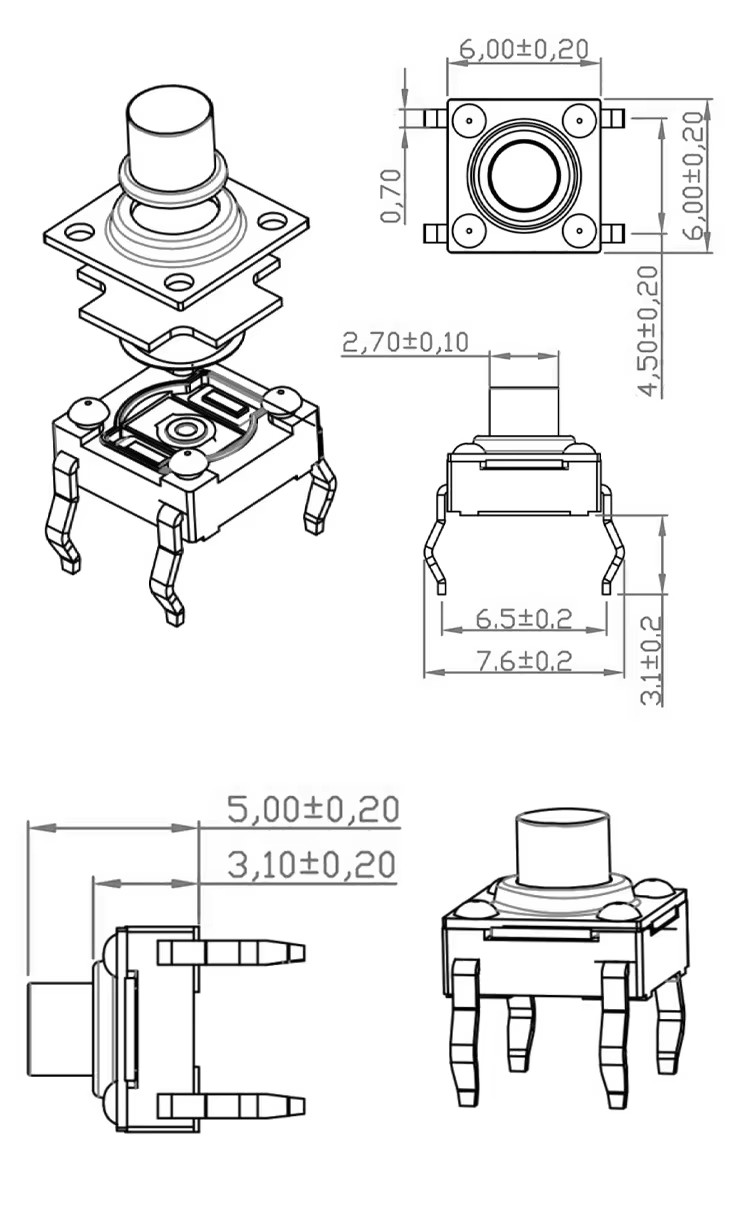

product name:DIP 6x6x4.3mm Tact Switch

model number :TS6643  SKHWAQA010

rating: 50mA DC12V

Contact resistance :≤50MΩ

Operating force :100/160/250±30gf

stroke :0.30±0.1mm

Insulation resistance: ≥100MΩ

Electric strength: 250V 50HZ 1M in.

Life span: ≥100000 times

Waterproofing class:IP67

2.IP67 Red Button Switches'

The latest small-size waterproof touch switch K2-6615UP is produced in mass. The product conforms to IP67 dustproof and waterproof standard, small size 6.15mm×6.1mm, 300,000 times life, surface mount type, soft feeling, high temperature resistant material, stable contact performance and other advantages. And product diversification, flexible selection. And can be selected according to customer needs a variety of press strength.

3.Waterproof Red Button tact switches' Feature

a Dustproof and waterproof design with stretched shell

b Strict selection of materials, sufficient materials, product quality is guaranteed

c Installation mode:DIP and SMD

d Button Color:red black green blue

4.Stretch Cover tact switches' Application

The 6*6 waterproof red button switches are widely used in automobiles, digital products, smart homes, drones, robots and so on.

Smart watches and fitness devices, such as the Apple Watch and Fitbit Charge series, have waterproof button switches that ensure their reliability in humid environments, allowing users to swim, shower, or engage in high-intensity exercise without worrying about sweat damage to the devices.

Outdoor cameras: For example, GoPro Hero series, waterproof key switches enable cameras to operate normally in rainstorm, mud and other harsh environments, meeting the needs of extreme sports enthusiasts and outdoor photographers.

Portable medical devices, such as Omron's portable blood pressure monitor, have waterproof button switches that enable the device to accurately measure blood pressure even in high humidity environments, improving the reliability and accuracy of medical equipment.

Medical disinfection equipment: such as Steris' medical disinfection equipment, waterproof button switches ensure that the equipment operates normally in high-pressure steam and disinfectant environments, improving the safety and hygiene standards of the medical environment.

Outdoor and entertainment equipment:

Outdoor sound system: such as JBL's outdoor sound system, waterproof button switches enable the sound system to function normally in humid and rainy environments, meeting the needs of outdoor enthusiasts.

Marine equipment: such as Garmin's marine navigation system, waterproof button switches ensure that the equipment operates normally in salt spray and seawater environments, ensuring safe navigation.
