Are you a factory or a trading company?
Answer: We are a factory, we can guarantee our price is first hand, very cheap and competitive.
How is the quality control in your factory?
Answer: All products will be 100% checked before shipment.
How to contact us?
Tel: 86-13377785035
Wechat: kkg-vivian
Email: xyy@kkg.tw
WhatsApp: +8613377785035
2P 6*6 Tzctile Switches' Specification
| 6x6mm Middle 2pin ( Pin Lenght 3.5mm) | |||||||||
| 4.3 | 4.5 | 4.7 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 |
| 8.5 | 9 | 9.3 | 9.4 | 9.5 | 10 | 10.5 | 11 | 11.5 | 12 |
| 6x6mm Middle 2pin Round( Pin Lenght 13.5mm) | |||||||||
| 4.3 | 4.5 | 5 | 5.5 | 6 | 7 | 7.3 | 8 | 9 | 10 |
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | |||
| 6x6mm Middle 2pin ( Pin Lenght 13.5mm) | |||||||||
| 4.3 | 5 | ||||||||
| 6x6mm Middle 2pin ( Pin Lenght 8.7mm) | |||||||||
| 5 | |||||||||
| 6x6mm Middle 2pin ( Pin Lenght 7mm) | |||||||||
| 5 | |||||||||
| 8 Kind Color | |||||||||
| Red | Orange | Yellow | Green | Browm | Blue | White | Black | ||
2P Tap Switches' Feature
1.2 foot design, and foot length position and length can be customized
2.Waterproof film: IP67 waterproof rating is not afraid of rain moisture

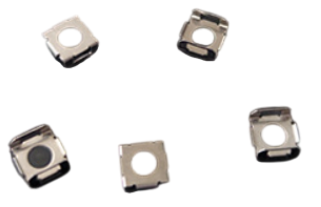

3.Metal cover plate: preferred material, mirror-grade smooth nickel-plated surface durable corrosion resistance

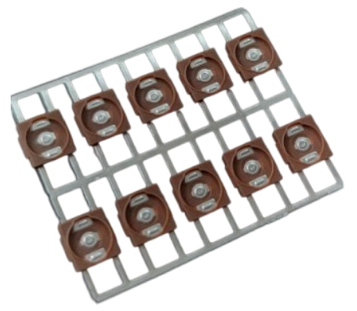

4.Boutique base: boutique PPAPA material is optional, high strength size is stable without deformation, can be sustained above 200℃ temperature resistance

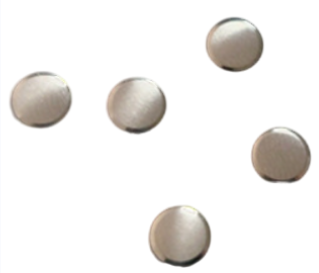

5.Durable shrapnel: High quality stainless steel/silver-coated copper shrapnel, strong resilience and good contact
6.Keycap: Suitable for fine handling according to the details of the hat
6*6 Tact Switches' Description
| Protection Level | IP40 |
| Max. Current | 50mA |
| Max. Voltage | 12V DC |
| Place of Origin | Guangdong, China |
| Brand Name | KG |
| Model Number | 6*6 |
| LED | NO |
| Whether the smart | NO |
| Material | high temperature resistance |
| typel | waterproof tactile switch |
| Certificate | RoHS |
| Product type | 2 pin |
| contact | mechanical connection |
| Rated voltage | 12V DC |
| Rated current | 0.5A |
| Key path | 0.5±0.1mm |
| Operating force | 2.3±0.3gf |
| Contact resistance | MAX30Ω |
| Operating Life | 100000 times |

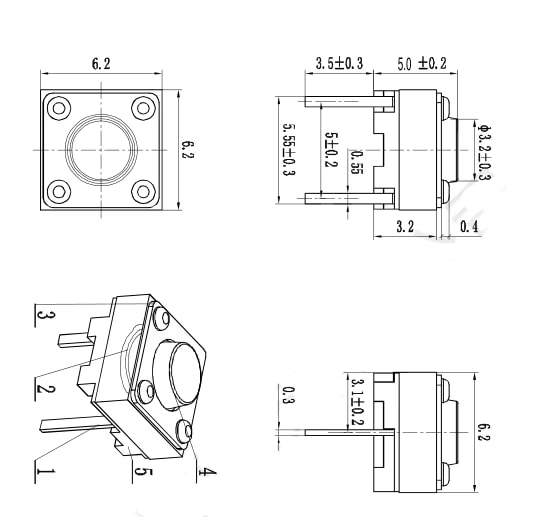

The 2P 6*6 Touch Switches' drawing.
15 Years Professional Supplier.
2000 square meter warehouse.Own Global Supply System.
Drop shipping service;
Fast and safe way by EMS/DHL/SF-express/Fedex,etc.We will choose the best and cheapest way.
Full category customization platform and have 9 years of supplier exprience;
New styles updating everyday and piece MOQ for all the styles;
Goods can be delievered to the world;
The DIP 6*6 Tact switches are normally loaded into bags and boxes.
1, Q : Could you provide me the spec data sheet for further reference ?
A: Of course. Please contact us via Whatsapp , we will send you PDF format sheet as soon as possible
2, Q : Do you customize material of switch as buy's requirement ?
A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement
3, Q : Could I get a sample to test ?
A: Sure, we provide you free sample, but shipping cost should be paid by buyer
4, Q : How quick could you deliver a order ?
A: For custom order, it takes about 2-7 days normally. It depends on quantities of your order.
