Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: TK-037
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Export package
Delivery Time: Negotiate
Payment Terms: T/T, L/C, Western Union

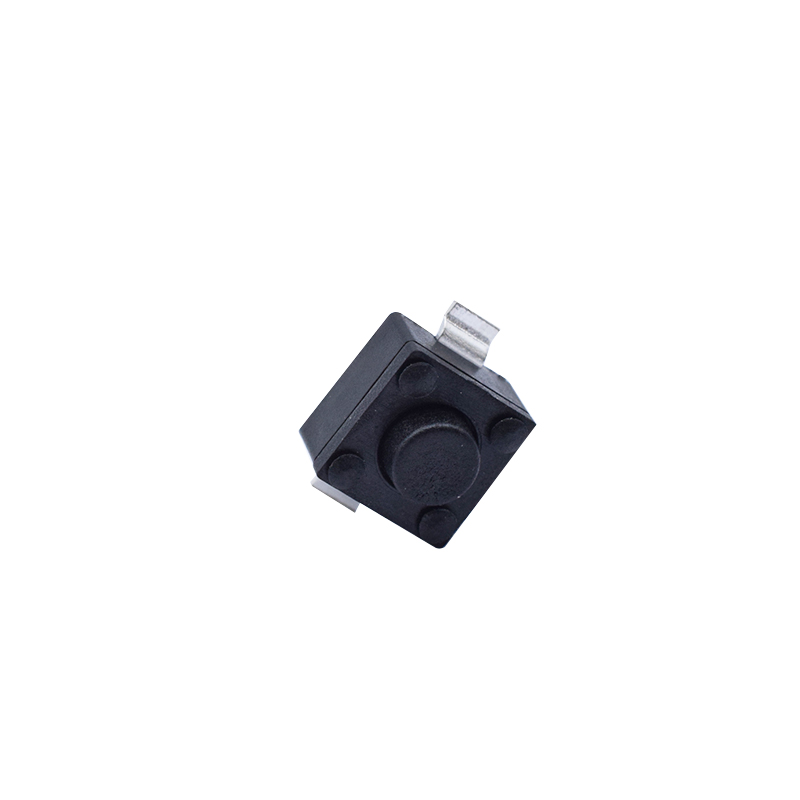

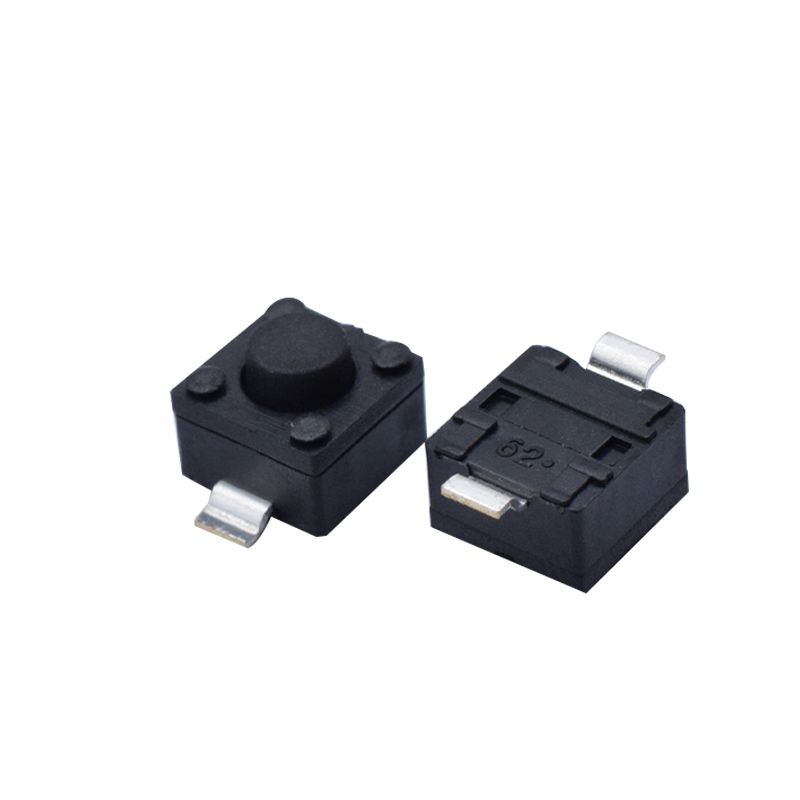

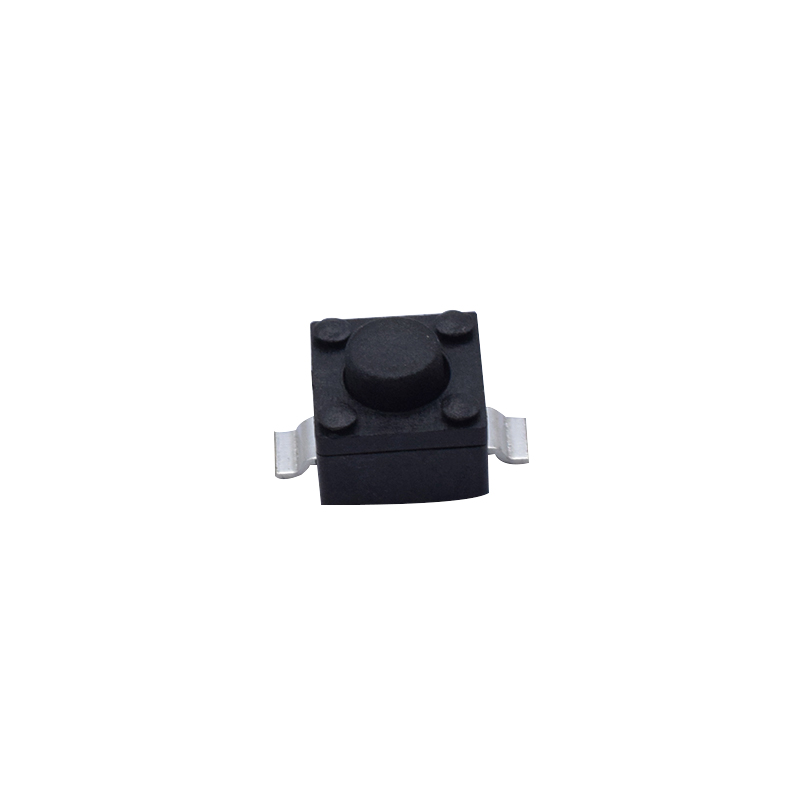

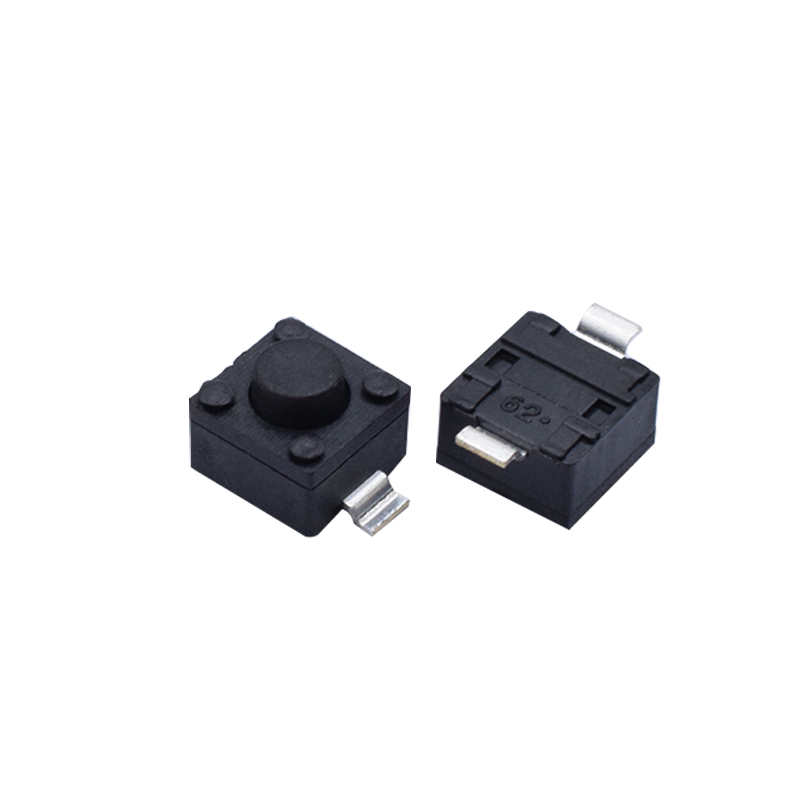

The 2P 6x6 Waterproof Tactile Switch is a compact, momentary push-button component. Featuring a 6.0mm x 6.0mm footprint and a 2-pin (2P) configuration, it provides a reliable tactile response and audible click. Its key feature is an IP67-rated waterproof seal, protecting against dust and temporary immersion, making it ideal for outdoor equipment, automotive interfaces, and industrial controls that require durability and environmental resistance.
The cover Made from high quality PA66 material to incretin loading performance，Sealed structure, waterproof performance is stronger
Dome contact：Select nice stainless steel/silver coatedcopper dome contact, high rebound lifeand good contact performance, makingthe product more durable
Switch cap：The suitable switch cap with smooth surface,perfect hand-feeling
100% Copper terminal:Select good copper and never replaceit with iron materials,quality promise
High temperatureresistance film:The film can stand for 260℃ high temperature reflow sold
The foundation byexquisite craftsmanship：Hi-tech foundation is basis for quality
Make semi-finished good：Fully automatic assembly film,Rethe rate of defective traditional crCost saving
| Rating | 50mA DC12V |
| Contact resistance | < 50mΩ |
| Operating force | 250+50gf |
| Line length | 0.25±0.1mm |
| Insulation resistance | >100MQ |
| Electrical strength | 250V 50HZ 1M n |
| Life expectancy | 100.000Cycles |

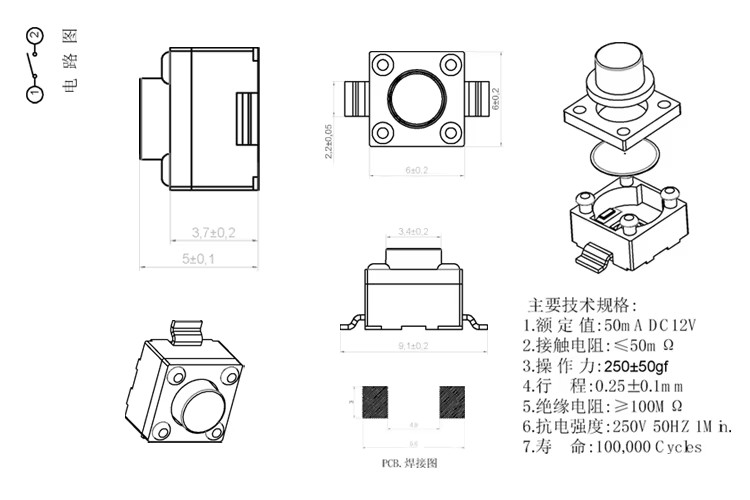

The size is 6*6.The product consists of 6 parts: key, cover plate, shrapnel, waterproof film, base and terminal
| Press | PA66 |
| Cover plate | PA66 |
| Dust and waterproof layer 1 | silicone |
| Waterproof layer 2 | Tape |
| Raised dot hat: | PA66 |
| Shrapnel | stainless steel |
| Base | PA66 |
| Terminal | phosphor copper |
Outdoor & Marine Electronics:
These waterproof switches are ideal for marine equipment, GPS units, and outdoor communication devices, providing reliable control in wet, humid, and splash-prone environments where standard switches would fail.
Industrial Control Systems:
Essential for industrial panels, machinery controls, and factory automation equipment, they ensure safe and consistent operation despite exposure to moisture, dust, oils, and frequent cleaning with liquids.
Medical & Laboratory Equipment:
Perfect for devices requiring strict hygiene protocols, such as diagnostic instruments, surgical tools, and lab consoles. Their sealed design withstands chemical spills and sterilization processes.
Automotive & Transportation:
Used in vehicle dashboards, agricultural machinery, and heavy-duty transport controls. They offer durability against rain, vibration, and temperature fluctuations, ensuring long-term performance.
Consumer Appliances:
Integrated into kitchen appliances (e.g., blenders, coffee makers), fitness equipment, and outdoor gadgets where resistance to spills, humidity, and frequent washing is critical for user safety.
Public Kiosks & Vending Machines:
Deployed in self-service terminals, ticket machines, and outdoor payment systems. The waterproof rating protects against weather elements and accidental liquid spills in high-traffic public areas.
Q: What is a 2P 6x6 waterproof tact switch?
A: It is a dual-pin (2P), 6mm x 6mm tactile switch designed to resist water ingress, ideal for harsh environments.
Q: Where are these switches commonly used?
A: They are used in outdoor electronics, automotive controls, medical devices, and industrial equipment requiring moisture resistance.
Q: How does the waterproofing work?
A: A sealed membrane or housing prevents water from contacting internal components, often rated IP67 or higher.
Q: Are they durable?
A: Yes, they offer high mechanical life (e.g., 100,000+ cycles) and reliability under wet or dusty conditions.
Q: What electrical ratings do they have?
A: Typically low voltage/current (e.g., 12V 50mA), suitable for PCBs and compact digital interfaces.
Q: Can they be customized?
A: Many suppliers offer options for actuation force, terminal shape, and sealing levels to match specific needs.
