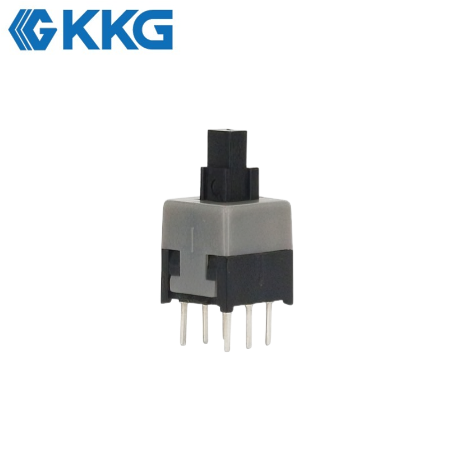

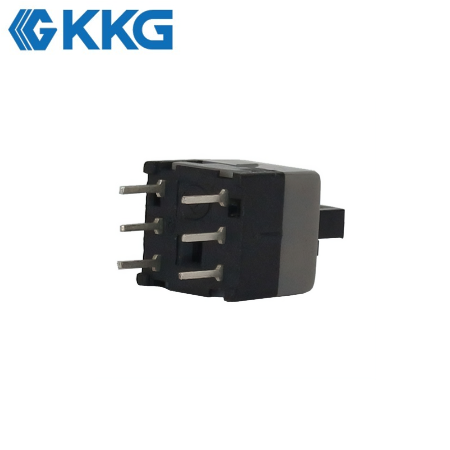

Push Button Switch 8.5*8.5

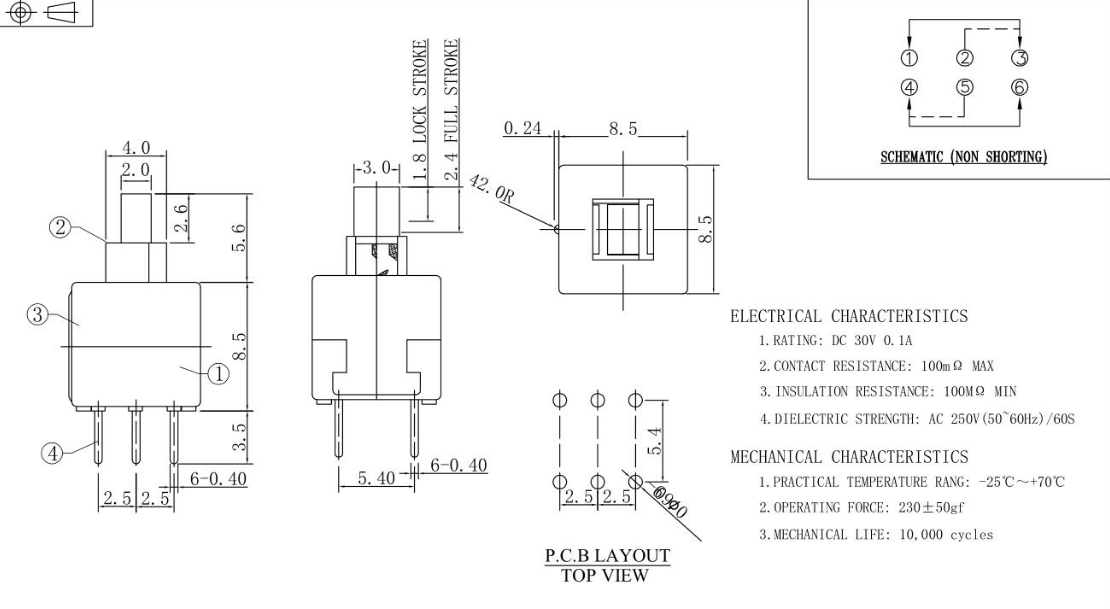

This self-locking pushbutton switch measures 8.5 × 8.5 mm and features a 6-pin through-hole design. Its key advantages include a compact size, distinct tactile feedback, and strong pin compatibility,

 making it widely adopted in applications requiring small-form-factor, high-reliability pushbuttons.

I. Push Button Used in Consumer Electronics & DIY Makers

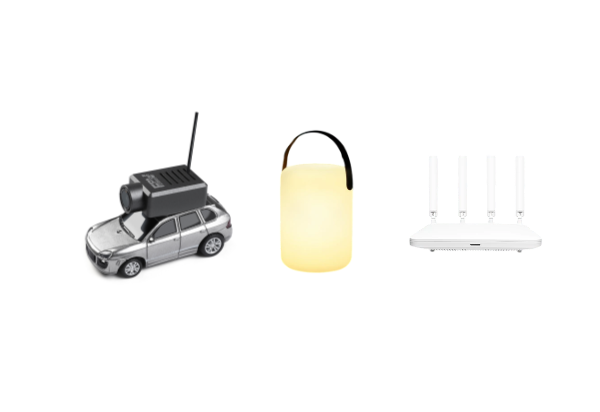

1. Bluetooth-Controlled Cars / Smart Robots

Example: A DIY Bluetooth-controlled car project uses an 8.5×8.5 self-locking switch as the main power control button: Press once to lock and power on, allowing the car to run continuously; press again

to unlock and cut power—no need to hold the button down, solving the pain point of standard momentary switches that “stop as soon as you release them” and making operation more convenient.

Compatibility Advantages: Compact size saves PCB space; 6-pin through-hole design fits breadboards and development boards, ideal for student projects and maker competition entries.

2. Smart Home Night Lights / Ambient Lights

Example: DIY bedside mood light using a latching switch as a mode selector: Press once to lock in “constant-on mode”; press again to switch to “breathing light mode.” No external relay is required—

it directly controls the circuit’s on/off state and fits a compact 8.5×8.5mm panel design.

Extended Applications: Power and speed control for desktop smart fans and USB portable humidifiers.

3. Router / Network Device Reset / Function Buttons

Case Study: Reset button / WPS function button for home wireless routers and switches. An 8.5×8.5mm latching switch enables “press and hold to trigger, then press again to reset,” preventing

accidental reboots while fitting the device’s compact internal space.

II. Button Push Used in Smart Home & Small Appliances (Mass-Production Mainstream Scenarios)

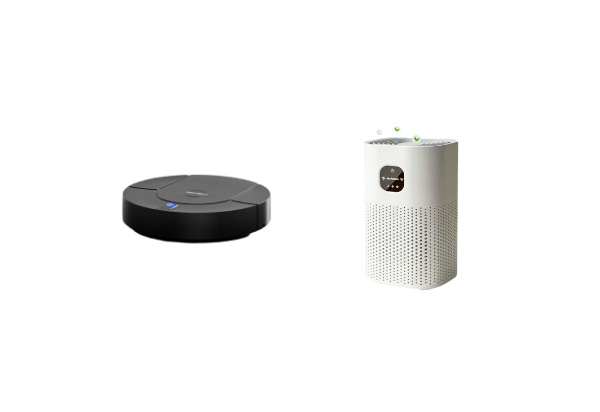

1. Smart Robotic Vacuum Cleaners / Air Purifiers

Case Study: Main power control button / mode switch on robotic vacuum cleaner bodies. A latching switch is used to achieve “press once to power on and lock operation, press again to power off and

unlock,” fitting the 8.5×8.5mm button cutout on the device body, meeting a lifespan requirement of over 10,000 cycles, and complying with mass production standards for home appliances.

Extended Applications: Function and speed selection buttons for smart ovens, rice cookers, and high-speed blenders.

2. Smart Control Panels for Hotels / Apartments

Case Study: Smart panels in hotel guest rooms, using multiple 8.5×8.5 self-locking switches for lighting, air conditioning, and curtain controls: Press once to lock and power the corresponding circuit,

allowing the device to continue running; press again to unlock and cut power, enabling single-button control of a single circuit with a compact and aesthetically pleasing panel layout.

III. Button Push Button Used in Industrial Control & Automation (High-Reliability Applications)

1. Small Industrial Control Cabinets / Test Instrument Panels

Case Study: Power and range selection buttons on laboratory test instruments such as signal generators and multimeters. Latching switches enable “press to lock and power on, with the instrument

continuing to operate,” preventing accidental power loss that could lead to data loss. These switches meet industrial-grade requirements for high durability and stability.

Extended Applications: Start/stop and reset buttons for PLC control cabinets and automated production lines, as well as mode selection switches for small devices.

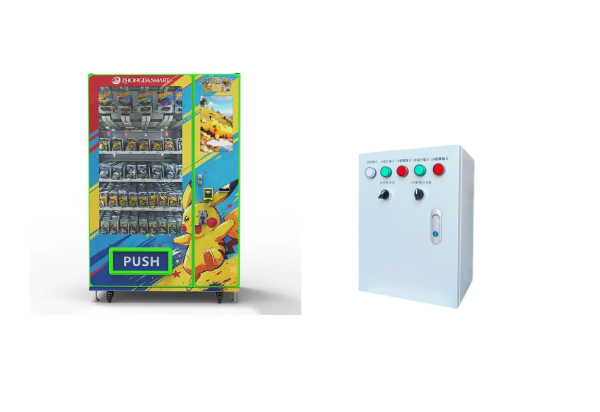

2. Vending Machines / Terminal Devices

Case Study: Function control buttons for vending machines and parcel lockers. 8.5×8.5 self-locking switches are used for “select/confirm” controls, locking the corresponding circuit with a single

press to trigger the function. Designed for high-frequency use scenarios, they offer long service life and low failure rates.

IV. Automotive Electronics & Vehicle Modifications (Outdoor Scenarios)

1. Control of In-Vehicle Modification Equipment

Case Study: Power control buttons for in-vehicle ambient lighting, car refrigerators, and heated motorcycle handlebars. Utilize waterproof 8.5×8.5 latching switches: a single press locks the circuit

to maintain power and keep the device running; another press unlocks it to cut power. Designed for automotive 12V circuits, these switches withstand extreme temperatures and vibrations, making

them ideal for in-vehicle outdoor environments.

Extended Applications: Function selection buttons for in-car audio-visual equipment and dashcams.

V. Button Push Switch Used in Medical & Personal Care (Precision Applications)

1. Home Therapy Devices / Beauty Devices

Case Study: Power and mode selection buttons for home-use medium-frequency therapy devices and beauty infusion devices. Latch switches enable “press once to power on and lock operation,

press again to power off.” Their compact size fits the sleek design of portable devices, meeting medical-grade requirements for high reliability and long service life while preventing accidental activation

that could cause abnormal operation.

Extended Applications: Function control for personal care small appliances such as electric toothbrushes and water flossers.

VI. Push Button Button Used in Toys & Educational Electronics (Low-Cost Mass Production Applications)

1. Children’s Electronic Toys / Remote-Control Cars

Case Study: Power/transmission buttons for children’s remote-controlled cars and electric toy guns. An 8.5×8.5 self-locking switch serves as the master control: one press locks the power on for

continuous operation; another press unlocks and cuts the power. This solution offers low cost and a simple structure, making it suitable for toy mass production while preventing children from

accidentally holding the button down.

Extended Applications: Circuit control switches for electronic building blocks and student experiment kits.
