Black Push Button Switch

Product Structure of Black Pushbutton Switch

A. Operating and Sealing Components

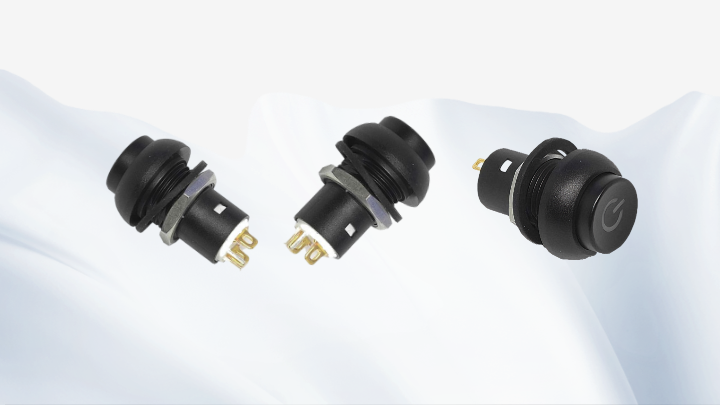

1. Button Cap: User-operated component, typically made of ABS/POM plastic or rubber. The illustrated black waterproof cap features a power symbol and provides IP65/67 dust and water resistance.

2. Waterproof Seal: Installed between the panel and switch to block water, oil, and dust.

3. Mounting Nut and Washer: Securely fasten the switch to the equipment panel.

B. Internal Mechanical Structure

1. Drive Rod / Slider: Connects the button cap to the contacts, transmitting the pressing force.

2. Self-Locking Mechanism (Heart-Shaped Slot + Detent Pin): Core component. The detent pin slides within the slot, achieving a mechanical memory function: “Press once to lock, press again to release.”

3. Reset Spring: Provides return force, pushing the button and contacts back to their original positions upon release.

C. Electrical Contact System

1. Moving Contact: A silver alloy conductor that moves with the drive rod, ensuring low contact resistance.

2. Stationary Contact: A conductive plate fixed to the base, working with the moving contact to complete the circuit.

3. Pins / Terminal Connectors: Connect to external circuits. Shown here are gold-plated pins for enhanced conductivity and corrosion resistance.

4. Insulating Base: Made of high-temperature-resistant engineering plastic, it supports and isolates the internal electrical components.

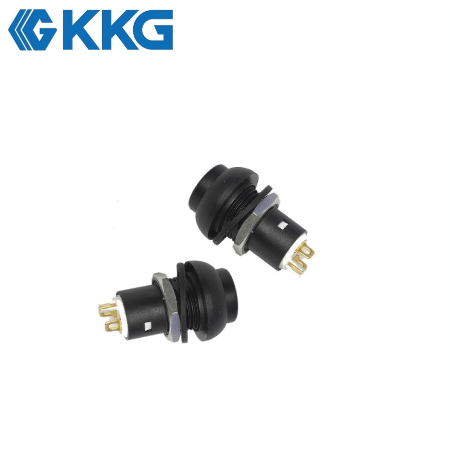

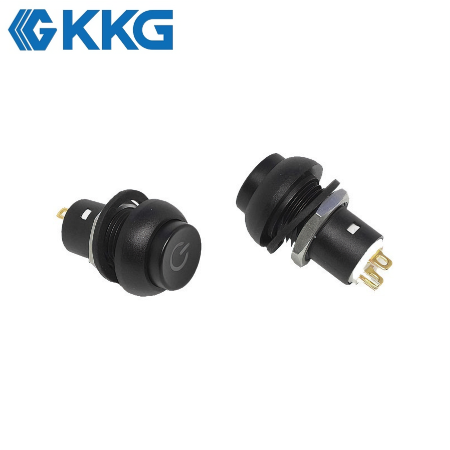

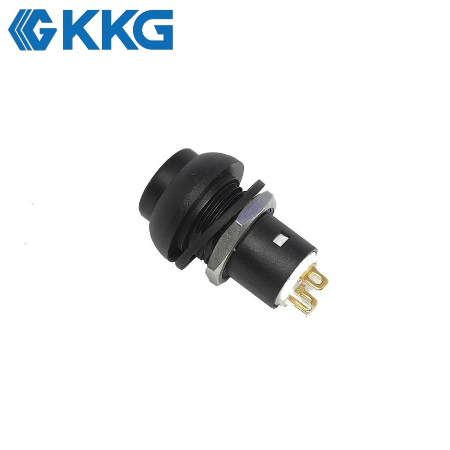

Black Pushbutton Switch Product

The button cap of this pushbutton switch is made from materials such as ABS, POM, or rubber, offering excellent waterproofing, dustproofing, and oil resistance. It also features high impact resistance and wear resistance, capable of withstanding tens of thousands of presses without fracturing or wearing down. Its surface finish is smooth, with a distinct actuation travel and good colorability, allowing production in various colors including black. Power symbols and other markings can be printed on the surface.

The push switch base employs engineering plastics like PA66, PBT, or phenolic resin, delivering outstanding thermal stability and UL94 V-0 flame retardancy. This prevents melting, deformation, and fire propagation during short circuits or high-temperature conditions. Its high volume resistivity and dielectric strength reliably isolate internal contacts from external metal components, preventing short circuits and leakage. It also exhibits excellent resistance to chemicals like engine oil and cleaning agents, resisting corrosion and swelling.

Product Application of Self-locking Switch

1. Portable Handheld Devices:

Flashlights, headlamps, juicers, electric shavers, Bluetooth earbuds, smart bracelets, etc., featuring one-touch start/stop operation with waterproofing and accidental-touch prevention.

2. Transportation & Outdoor Equipment:

Electric bikes, motorcycles, scooters, boats, agricultural machinery, camping lights, emergency power supplies, etc., designed for dusty and humid outdoor environments.

3. Home Appliances & Smart Devices:

Desk lamps, night lights, smart door locks, motorized curtains, electric kettles, coffee makers, etc., serving as power or function switches.

4. Industrial and DIY Equipment:

Small machine tools, instruments, automation control cabinets, electronic DIY projects, robots, etc., for controlling start/stop and mode switching.

5. Automotive Electronics:

Modification and control switches for car ambient lighting, refrigerators, audio systems, dashcams, etc.
