Double Dip Switch
  • Double Dip Switch

Double Dip Switch

FEATURE

 ‧ 2.54mm

 ‧ Vertical DIP

 ‧ Double Dip

 APPLICATIONS

 ‧ Data processing, communication, remote control, anti-theft automatic alarm system, air shower room, air conditioning control panel, train model, etc.

  • Product Details

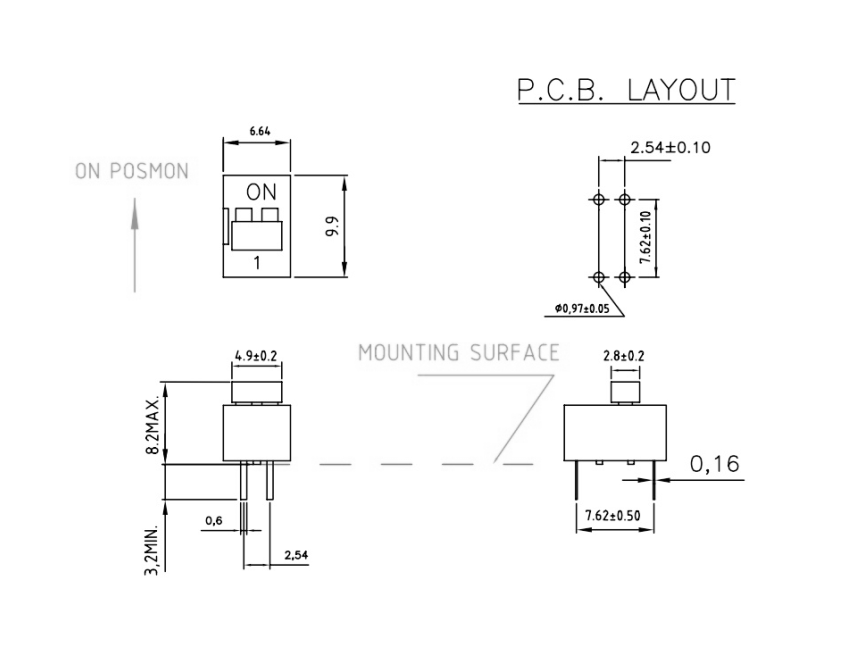

  • DIMENSIONS

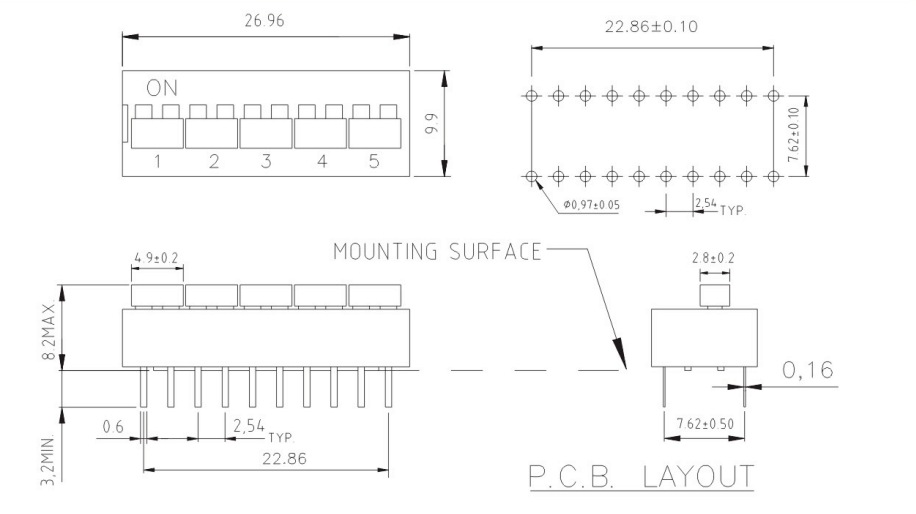

  • IMENSIONS 2

Double Dip Switch

The Double Dip Switch is a compact, dual-in-line package (DIP) switch designed for configuring circuit settings in electronic devices. It features multiple independent switches arranged in a single housing, enabling precise control over binary or multi-state configurations.


Features

Dual-Row Configuration: Two parallel switch arrays enabling high-density circuit programming

Standardized Pitch: 2.54mm spacing ensures seamless PCB integration

Multiple Actuation Styles: Available in slide, rotary, and piano-type mechanisms

Enhanced Durability: Gold-plated contacts rated for 1,000+ actuation cycles

Surface Mount & Through-Hole Options: Flexible mounting solutions for various PCB designs



Application Overview of Double DIP Switch

Industrial Automation

Double DIP switches offer reliable hardware-level control in automated systems:

  • Machine control panel mode selection

  • PLC address configuration for field devices

  • On-site adjustment of production parameters

Telecommunications

Ideal for configuring network and communication equipment:

  • Manual setup of router and switch operating modes

  • Base station signal and frequency configuration

  • Signal routing and channel selection

Consumer Electronics

Compact design makes them suitable for internal configuration tasks:

  • Mode selection in smart home appliances

  • Audio/video input-output customization

  • Custom behavior settings for gaming peripherals

Automotive Electronics

Built for stability in vibration-prone environments:

  • Dashboard feature toggling and diagnostics

  • Infotainment system configuration

  • ECU (Electronic Control Unit) parameter setup


CharacteristicsSpecification
Operating temperature range-20°C to 70°C
Spacing2.54mm
Mechanical Life2000 operations per swith
Contact Resistance50MΩmax
Sroke2.0mm



Advantages

1. Compact Dual-Switch Design

Integrates two independent switch poles in a single compact unit, saving PCB space while enabling multi-channel control or configuration.

2. High Durability and Reliability

Engineered for up to 100,000 mechanical cycles, ensuring stable performance in demanding environments and long-term applications.

3. Low Contact Resistance

Provides consistent electrical performance with ≤50mΩ contact resistance, minimizing power loss and signal interference.

4. IP67 Waterproof Protection

Fully sealed construction allows usage in harsh or outdoor environments, with protection against dust and temporary immersion in water.

5. Tactile and Responsive Actuation

Features an operating force of 250±40gf and travel of 0.25±0.1mm, offering crisp, accurate feedback for reliable manual control.
