A Vertical SMD HDMI Jack is a surface-mount connector designed for perpendicular (90-degree) board attachment. Its compact, low-profile design saves valuable PCB space in modern, slim devices like laptops, set-top boxes, and gaming consoles. The SMD (Surface-Mount Device) termination allows for high-speed, automated assembly, ensuring reliable electrical connections for high-definition audio and video signals. This jack is engineered for robust mechanical stability and optimal signal integrity in space-constrained applications.
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: HDMI27-0215-161081
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag/Reel for goods+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union

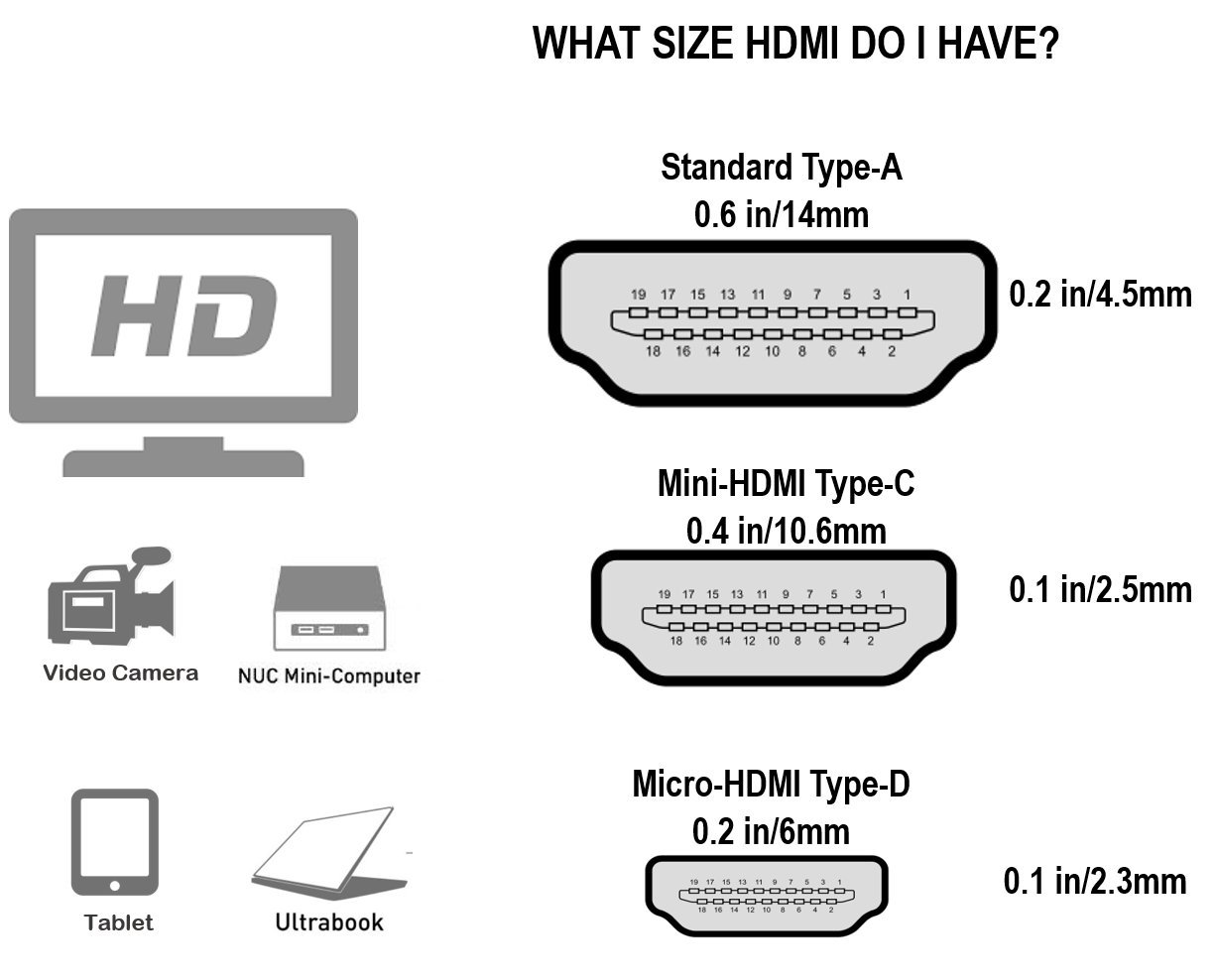

The Mini HDMI jack employs high-speed differential signal transmission technology, utilizing 19 precisely engineered metal pins to simultaneously transmit digital video, audio, and control signals. This design ensures stable output of high-definition data, enabling seamless interconnection between devices.
Signal Transmission: High-speed transmission of digital video, audio, and control signals ensures lossless data output.
Device Interconnectivity: Facilitates seamless connections between digital cameras, tablets, and portable devices with large-screen displays.
Intelligent Expansion: Supports intelligent features like Consumer Electronics Control (CEC) and Audio Return Channel (ARC), enabling multi-device interactive control.
| Characteristics | Specification |
|---|---|
| Rated Voltage | 30V AC |
| Current | 0.5A |
| Contact Resistance | 30MΩ MAX |
| Insulation Resistance | 100MΩ MIN |
| Operating Life | 5000 cycles |
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
Example: GoPro HERO series cameras equipped with Mini HDMI output.
Transmit high-definition sports footage in real-time to portable monitors, enabling live broadcasts and event recordings.
Example: FLIR portable thermal imagers featuring Mini HDMI interfaces.
Real-time transmission of thermal imaging videos ensures precise monitoring data, providing reliable visual support for on-site inspections.
Example: ASUS interactive flat panels connecting portable devices via Mini HDMI.
High-definition image transmission with low-latency signal interaction enhances classroom engagement and remote teaching experiences.
A: A Vertical SMD HDMI Jack is a surface-mount connector designed for vertical PCB mounting, saving horizontal space in compact devices like TVs or gaming consoles.
A: Unlike horizontal HDMI ports, the vertical SMD version installs perpendicular to the PCB, ideal for slim-profile designs where board space is limited.
A: Proper reflow soldering is critical. Ensure alignment pins and SMD pads are accurately placed to avoid mechanical stress or signal issues.
A: Yes, many vertical SMD jacks support HDMI 2.1 bandwidth (up to 48Gbps), but verify the manufacturer’s datasheet for certified performance.
A: These jacks are robust but require secure PCB anchoring. Strain relief features help prevent port damage from frequent cable insertion.
A: Used in space-constrained electronics: set-top boxes, VR headsets, digital signage, and portable media players.
