FEATURE

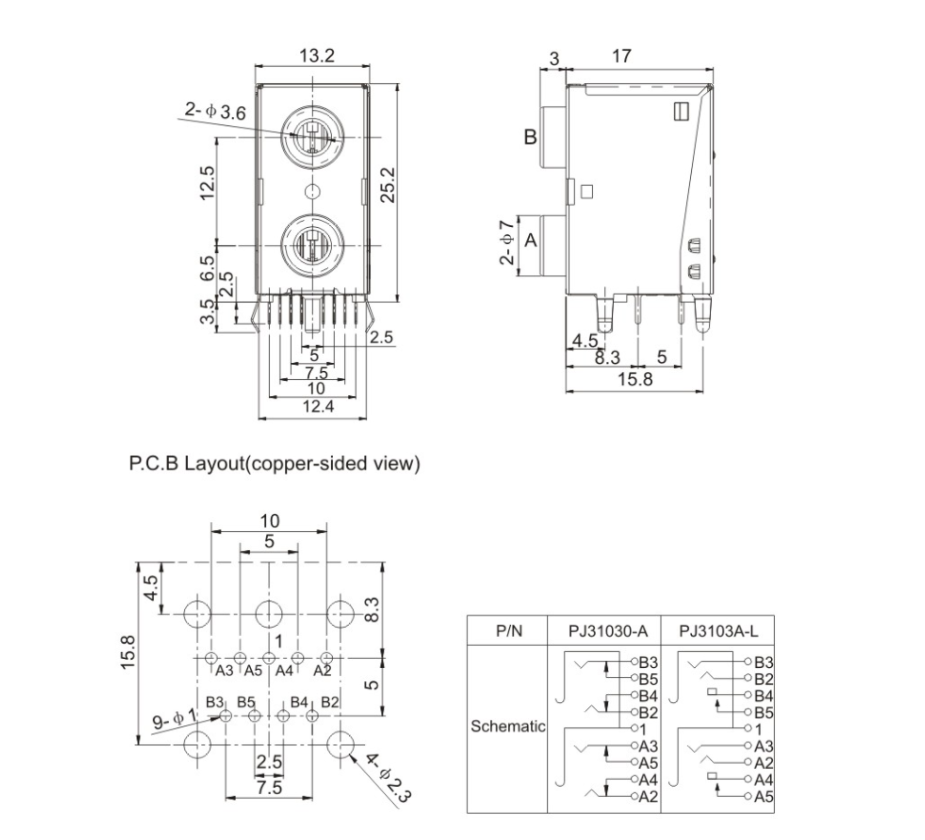

‧ 25.20mm*13.20mm H=20.00mm
‧ Horizontal DIP
‧ Reflow soldering
APPLICATIONS
‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...
| Characteristics | Specification |
| Rating | 0.5A，30V |
| Operating Force | 3~30N |
| Dimension | 25.20mm*13.20mm |
| Electrical Life | 5,000 Cycles Min |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
