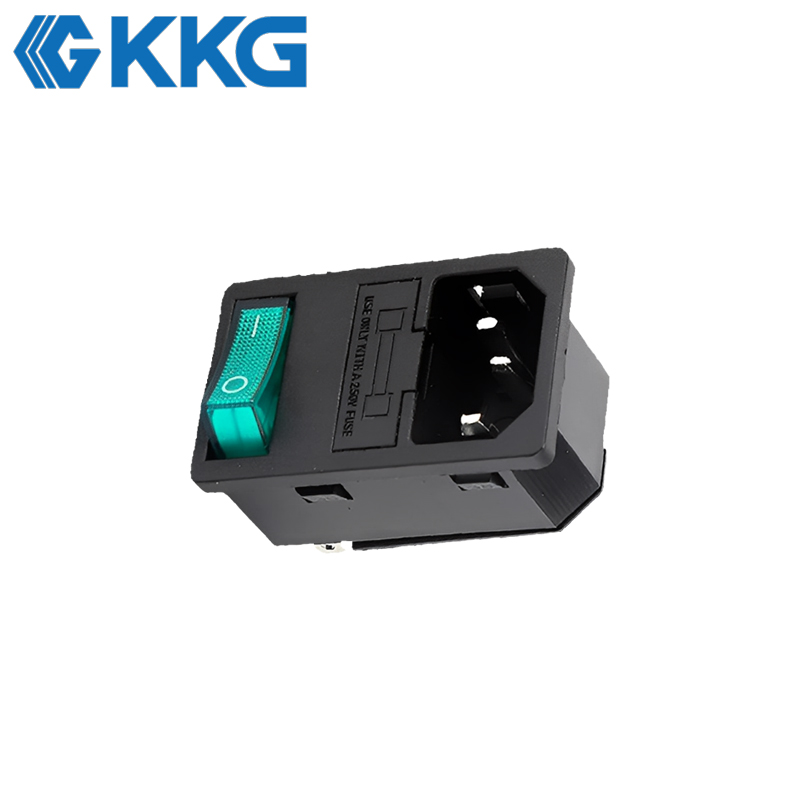

KKG AC-14-F19: Integrated Power Socket with Switch and Fuse

JBL Professional IEC Power Socket's Product Introduction

As a premier Power Socket Fuse Switch factory, KKG is proud to offer the AC-14-F19, an all-in-one power component engineered for superior performance and ease of integration. This module consolidates the three essential functions of a power inlet, a master switch, and overcurrent protection into one compact and robust housing. The screw-mount design of this iec power socket ensures a solid, vibration-resistant connection to the equipment chassis, making it an excellent choice for industrial, commercial, and high-use applications where durability is key.

The AC-14-F19 stands out among iec power connectors for its focus on safety and reliability. The integrated fuse holder offers crucial protection for sensitive electronics, preventing damage from power surges or short circuits. The 4-pin illuminated rocker switch provides clear, unambiguous visual feedback of the device's power status, enhancing operator safety. By choosing this integrated module, manufacturers can simplify their panel layouts, reduce wiring complexity, and accelerate assembly, resulting in a more professional and reliable end product.

Ultimaker S5 IEC Power Socket's Product Operating Principle

Secure Fastening: The module is designed to be securely attached to a panel or chassis using screws, creating a stable and durable mechanical bond.

Master Power Control: The 4-pin rocker switch provides a single point of control to safely connect or disconnect the entire device from the mains power source.

Automatic Circuit Protection: The fuse is engineered to instantly break the electrical circuit if the current load exceeds the fuse's safety rating, protecting the equipment from damage.

Tektronix TBS1000C Digital Storage Oscilloscope IEC Power Socket's Product Functions

All-in-One Solution: Integrates an iec outlet, a lighted switch, and a fuse into a single component to streamline product design and assembly.

Durable Installation: The screw-mount design provides a secure and lasting fit, ideal for equipment subject to movement or vibration.

Enhanced Safety Features: Combines fused overcurrent protection with a clear, illuminated power status indicator for safe operation.

Efficient Manufacturing: Reduces the need for multiple panel cutouts and simplifies the wiring process, improving production efficiency.

Test and Measurement: Used as the power entry module on benchtop equipment like the Tektronix TBS1000C Digital Storage Oscilloscope, where reliable power and safety are crucial.

3D Printing and Prototyping: Serves as the main power socket for professional-grade 3D printers, such as the Ultimaker S5, providing integrated protection for the control systems.

Commercial Audio: Integrated into powered subwoofers and PA systems from brands like JBL Professional, where a durable power connection and fusing are essential.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1. How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.

Q2: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

    For example, what are the functions you need? The specification of it and which finished products will be used with it?

    It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

    We could provide the free samples to you.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
    requirement.
    For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
    the test instruction/ procedure.
