Product Brief Description
The KKG DB-14-F5 is a comprehensive, all-in-one power entry module that combines a C14
ODM/OEM Service
Source Factory
Stable Daily Output
High Quality
Multiple Payment Methods
Pre/After Service

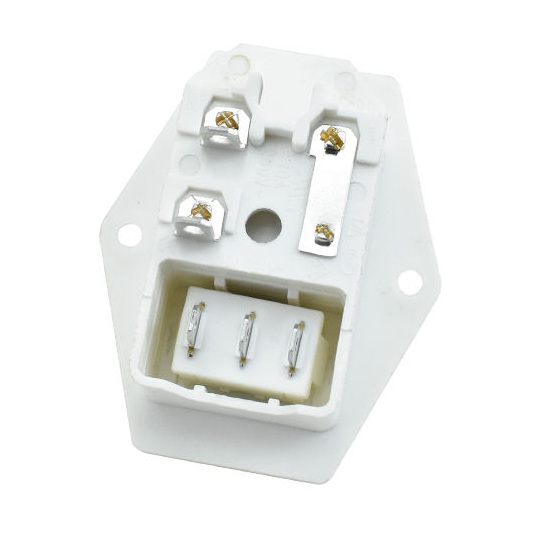

The Power Socket (Model: DB-14-F5) is a high-performance, integrated power solution designed for safety, durability, and ease of installation. This advanced power socket combines a mains inlet, Illuminated Switch, and fuse protection into one compact module, making it ideal for modern electrical systems requiring reliability and efficiency.
Engineered by KKG, this product supports multiple electrical outlet types and is suitable for both fixed installations and adaptable systems such as portable power socket setups. It can also be integrated into smart power outlet systems and paired with plug in light switch configurations for enhanced control.
With options such as electrical outlet with USB, battery powered plug socket, and dc socket compatibility in extended designs, this product line meets the growing demand for flexible and intelligent power management.
| Characteristics | Specification |
|---|---|
| Rating | 10A 250V (CCC, VDE) / 15A 250VAC (UL, CUL) |
| Type | Electrical Plug / Power Socket |
| Operating Temperature | -25℃ ~ 85℃ |
| Shell Material | Copper Alloy |
| Dielectric Strength | AC2000V 0.5mA for 1 Minute |
| Contact Resistance | ≤100mΩ |
Integrated Multi-Function Design
Combines power input, switch, and fuse into one power socket, reducing system complexity
Wide Compatibility
Supports various electrical outlet types and can be adapted to portable plug socket or portable power socket systems
Enhanced Safety Protection
Built-in fuse system ensures safe operation, similar to a battery powered plug socket with protection features
USB Charging Capability (Optional Models)
Available as an electrical outlet with USB for direct device charging
Smart Control Ready
Compatible with smart power outlet integration for remote operation and automation
DC Output Support
Optional dc socket for low-voltage applications
Durable Construction
Copper alloy housing ensures long-term stability and excellent conductivity
Illuminated Switch Design
Functions like a plug in light switch, providing clear power status indication
This power socket integrates multiple functions, eliminating the need for separate components and simplifying product design.
With built-in fuse protection and high dielectric strength, it ensures safe operation even under demanding conditions.
Supports configurations such as portable plug socket, battery powered plug socket, and portable power socket setups.
Features like electrical outlet with USB and illuminated switch enhance convenience and usability.
Low contact resistance and high-quality materials ensure stable and long-lasting performance.
Can be used in smart power outlet systems for intelligent energy management.
CNC machines
Control panels
Automation systems
Diagnostic equipment
Laboratory instruments
Audio-visual equipment
Smart home systems using smart power outlet
Integrated into portable power socket or battery powered plug socket systems
Outdoor and emergency power setups
Office equipment
Retail systems
Lighting systems with plug in light switch
A: A power socket is an electrical interface that allows devices to connect to a power source safely and efficiently.
A: Yes, it can be integrated into portable plug socket or portable power socket systems for mobile applications.
A: Optional versions include electrical outlet with USB for convenient device charging.
A: A smart power outlet allows remote control, scheduling, and energy monitoring, improving efficiency and convenience.
A: Yes, it can be adapted into battery powered plug socket configurations depending on system design.
A: It supports multiple electrical outlet types depending on regional standards and customization.
A: Yes, versions with a dc socket can support low-voltage electronic devices.
A: Yes, it features an illuminated switch similar to a plug in light switch, providing clear power status indication.
The KKG DB-14-F5 Power Socket is a versatile, safe, and efficient solution for modern electrical applications. With its integrated design, support for multiple configurations such as portable power socket, smart power outlet, and electrical outlet with USB, it delivers superior performance and flexibility.
Whether used in industrial machinery, consumer electronics, or portable systems, this power socket ensures reliability, safety, and ease of use—making it an ideal choice for manufacturers and engineers worldwide.
Industrial Machinery: Used as the main power inlet on industrial CNC controllers like the Haas CNC Control, where secure power input and safety are critical.
KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.
The product's appearance does not change when tested at 260°C for 5 minutes!
We ensure high production efficiency and ship your order within 7 days after payment.
