Gold Plating Terminal Illuminated Tactile Switches parameter
Current: | 50mA (maximum) | Voltage: | V DC (maximum) |
LED: | Yes | Life Expectancy: | 25,000Times |
Operation Type: | SPST,OFF-(ON),Momentary | Contact Resistance: | ≤50mΩ |
Insulation Resistance: | ≥100MΩ At 250VDC For 1 Min | Dielectric Strength: | 250VAC For 1 Min |
Operating Temperature: | -25°C To +75°C | Relative Humidity: | 45% To 85% |
Salt Spray Test.: | NSS 48hrs Or Customized | Operating Force: | 450±100gf |
Travel: | 0.25±0.10mm | Protection Level: | IP40 |
Lamp Switches' FEATURE

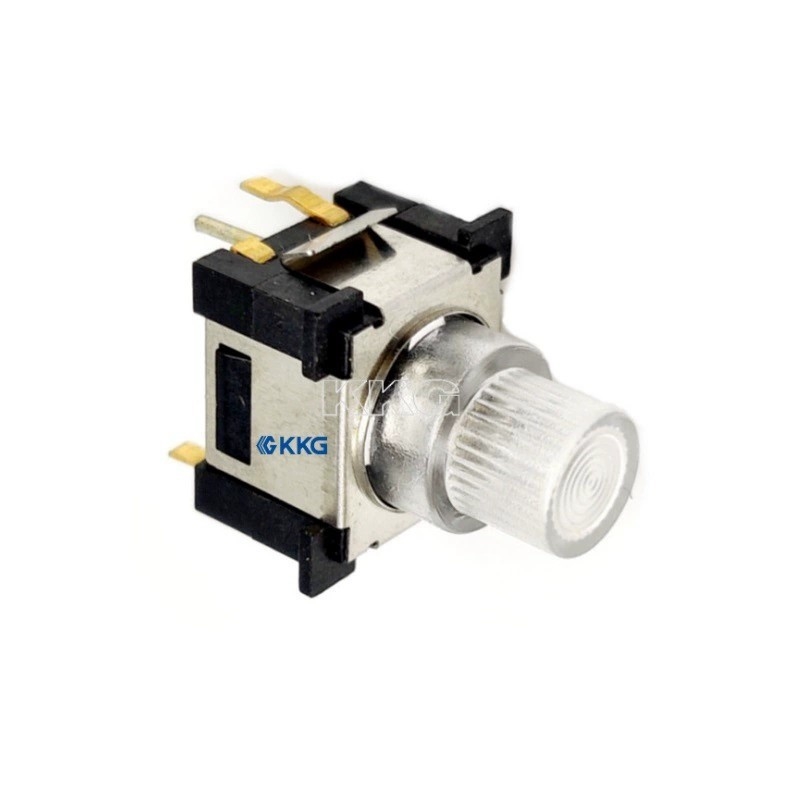

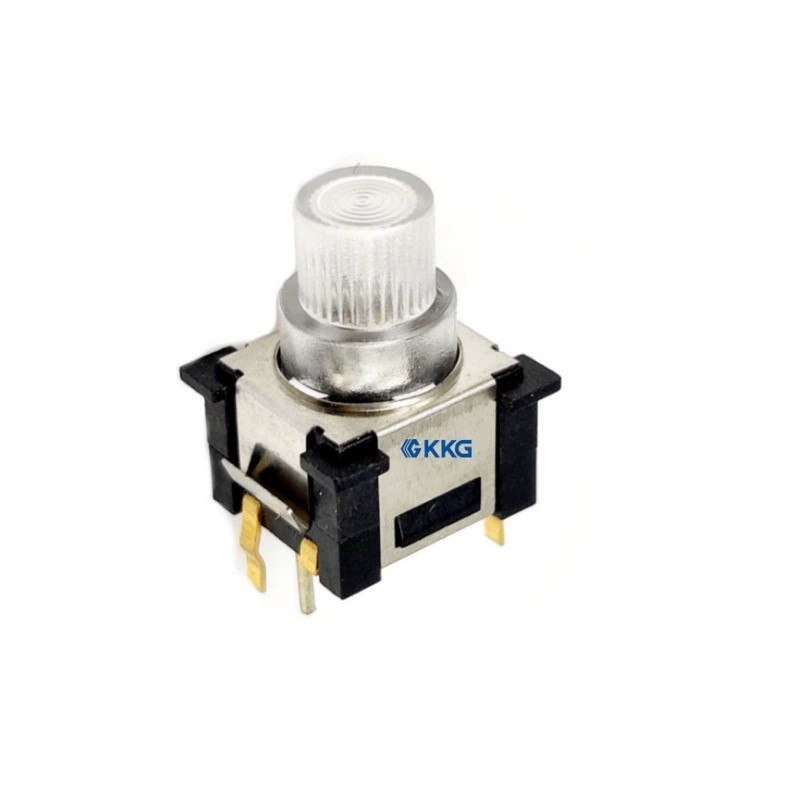

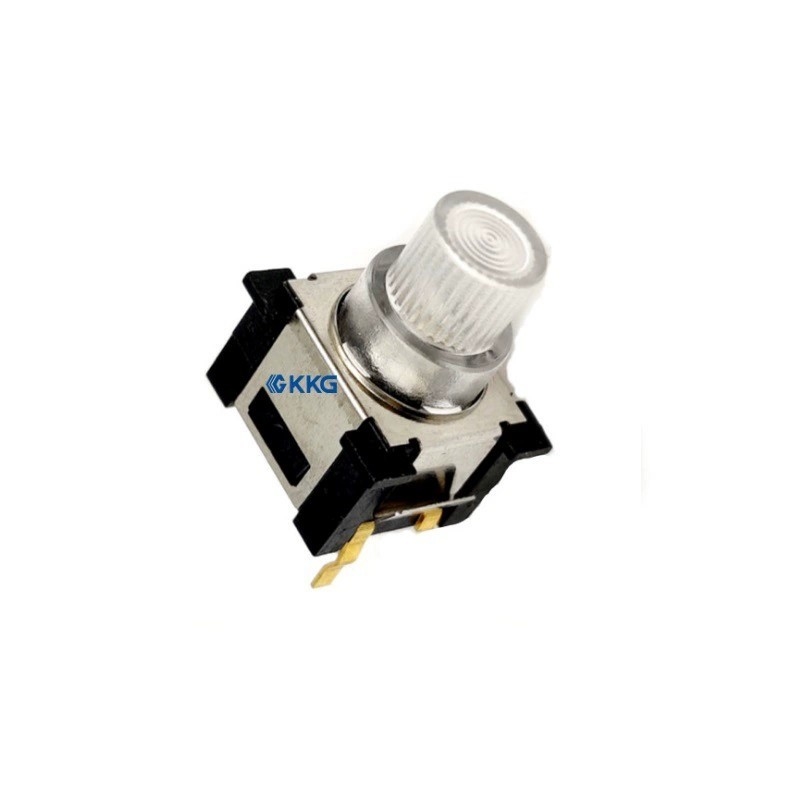

DIP Type, 10.50mm*9.85mm*13.35mm.Gold Plating Terminal Illuminated Tactile Switches
‧Super bright LED.
‧Various LED colors.
Tact switch with LED'APPLICATIONS
‧ For operating various electronic equipment such as audio devices、office equipment、communication devices、measuring instruments、TVs、video recorders .
‧ Server、Laptop、IPC、Set-top box etc.

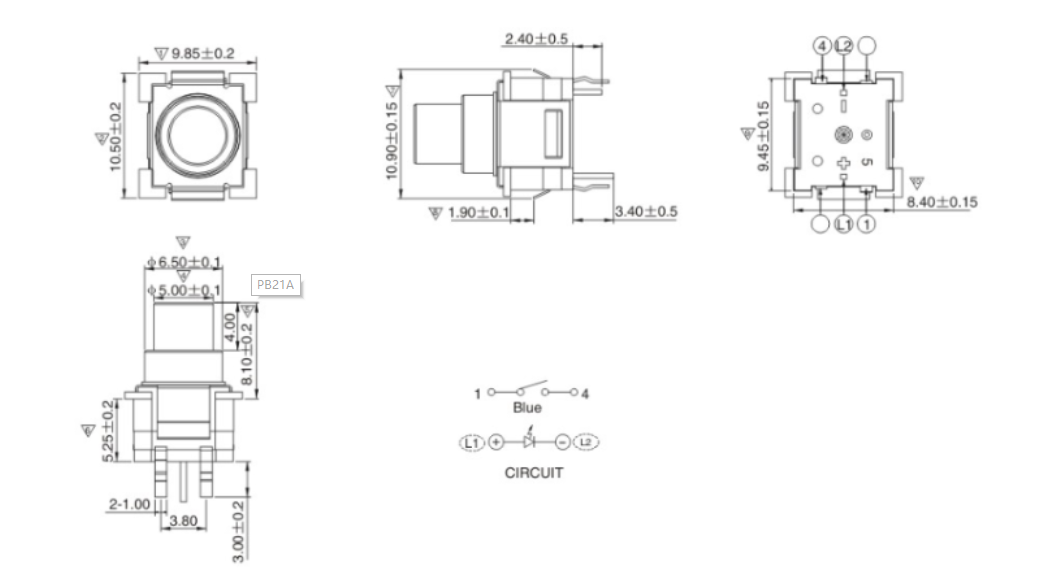

The drawing of multi led tact switch
1.15+ years' industry experience with over 10 billion switches sold in 2020.
2.High end materials and equipments imported from Europe and Japan.
3.One-Stop service, we have professional R&D engineers with more than 15 years experience.
4.OEM and ODM service are welcome.
5.Dust free workshop,VDE CQC certified.
6.100% QC checked before shipment to gurantee the products 100% good.
7.Lead time 2~15days, on time delivery.
8.15pcs free samples will be sent for your evaluation.
9.Supplier of many well known-enterprise，such as Bosch, Huawei, Dell, Steelseries......etc.
