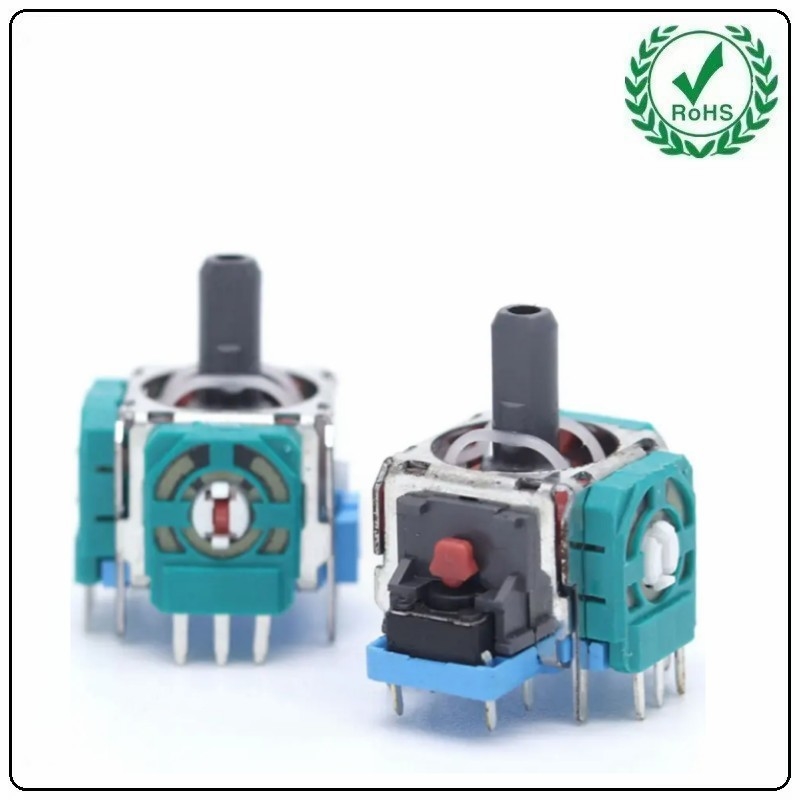

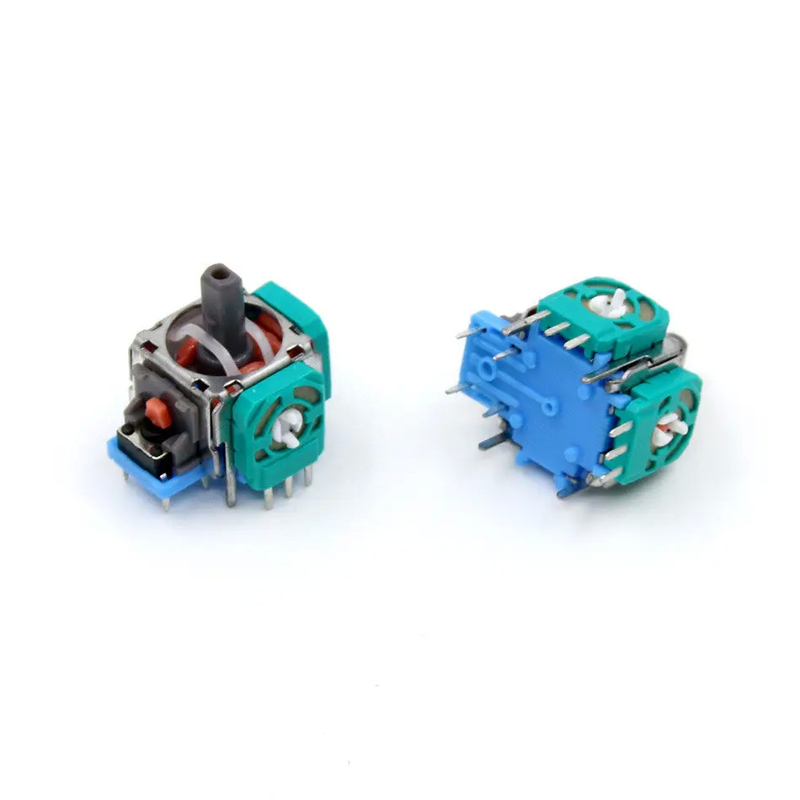

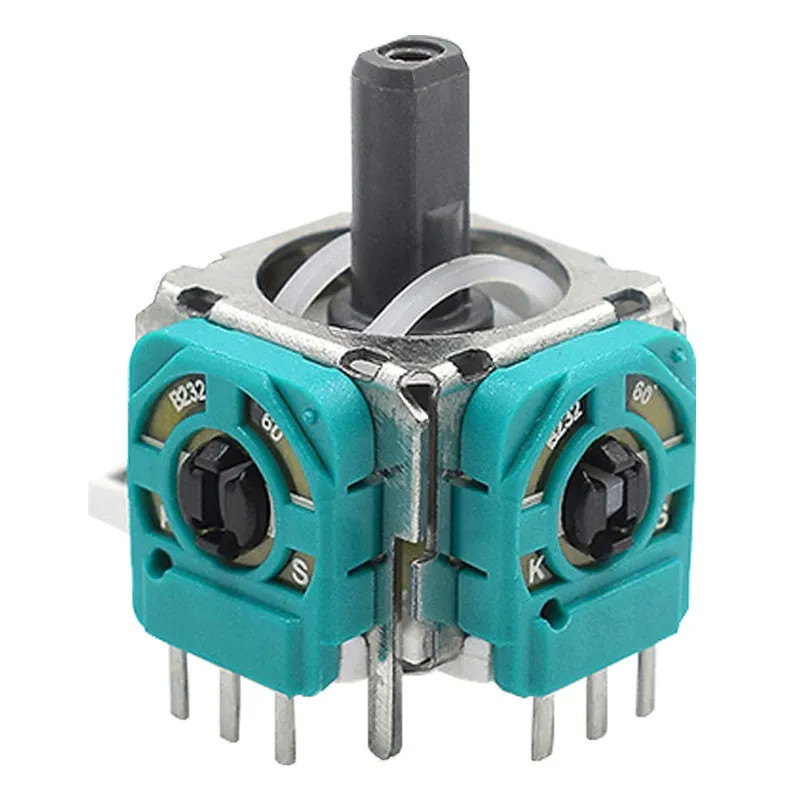

3D rocker potentiometer

3D Rocker Potentiometer is an electronic component used to adjust the current or voltage in a circuit, usually by physical rotation or tilting to achieve continuous adjustment. Compared with traditional rotary potentiometers, it has three-dimensional operation capabilities, that is, it can be adjusted in three directions: front and back, left and right, and rotation. This design makes the 3D rocker potentiometer very suitable for use in scenarios that require precise and detailed control, such as game controllers, virtual reality (VR) devices, industrial automation control panels, etc. Its biggest advantage is that it provides multi-dimensional control capabilities, allowing users to more accurately adjust functions during operation.

1. Three-dimensional operation function:

The biggest feature of the 3D rocker potentiometer is that it can support three-dimensional adjustment. This allows it to adjust voltage or current in three directions: front and back, left and right, and rotation, thereby providing a more precise control method. Unlike traditional two-dimensional rotary potentiometers, 3D rocker potentiometers can greatly improve the accuracy and efficiency of users when operating equipment.

Feature analysis:

Front and back, left and right adjustment: The operation of the 3D rocker potentiometer is not limited to simple rotation. Users can achieve different electrical parameter control by tilting back and forth and left and right. For example, forward and backward adjustment can be used to adjust the volume, while left and right adjustment can be used to adjust other functions such as brightness, speed, etc.

Rotation function: Traditional rotary potentiometers only support single rotation adjustment, while 3D rocker potentiometers add a tilt function on the basis of rotation, making their operation more flexible. Through rotation, users can precisely control increments and make fine adjustments.

2. High-precision and low-friction design:

3D rocker potentiometers usually adopt high-precision electrical contact design and low-friction mechanical structure to ensure that they can maintain stable performance during long-term use. High-precision electrical contact can ensure that there will be no error when the potentiometer is adjusted, greatly improving the accuracy and reliability of control.

Feature analysis:

High-precision adjustment: 3D rocker potentiometers use advanced electrical contact technology and have extremely low contact resistance (usually less than 50Ω), thereby ensuring that users will not experience delays or inaccuracies when adjusting. This is especially important for application scenarios that require precise adjustment.

Low friction and smooth operation: Potentiometers are usually designed with high-quality bearings and sliding devices to reduce friction, thereby ensuring smoothness and stability during operation. This low-friction design not only improves the comfort of operation, but also reduces mechanical wear, thereby extending the service life of the product.

3. Durability and anti-interference ability:

Since 3D rocker potentiometers are often used in some devices with high requirements for stability and reliability, their design usually pays special attention to durability and anti-interference ability. They usually use metal materials, reinforced plastics and sealed structures to ensure that they can still maintain stable performance in harsh environments.

Feature analysis:

Anti-interference ability: 3D rocker potentiometers use anti-electromagnetic interference (EMI) and anti-static designs to ensure stable operation in places with complex electromagnetic environments. For example, in industrial automation equipment or automotive electronic systems, electrical interference often leads to unstable signals, and anti-interference design effectively avoids this problem.

High temperature resistance and corrosion resistance: The shells of many 3D rocker potentiometers are made of high temperature and corrosion resistant materials, such as aluminum alloy or engineering plastics, which enables them to work reliably in high temperature, high humidity or chemical environments, and adapt to more industrial and outdoor application scenarios.

4. Multiple output modes: 3D rocker potentiometers usually have multiple output modes, such as analog output, digital output, and pulse output. This makes it more widely used in various electronic devices and compatible with various types of control systems. The type of output signal can usually be customized as needed to meet specific control needs.

Feature analysis:

Analog output: Analog output is usually used in application scenarios that require continuously changing signals, such as audio control, brightness adjustment, etc. In these scenarios, 3D rocker potentiometers can provide precise continuous changes, allowing users to achieve ideal results through subtle adjustments.

Digital output: Digital output is mainly used in scenarios that require discrete control, such as switch control, incremental adjustment, etc. Digital output can convert user operations into discrete digital signals, which is convenient for compatibility with digital control systems (such as microcontrollers, PLCs, etc.).

Pulse output: Pulse output is often used to accurately control devices such as motors and stepper motors that require precise position control. Through pulse signals, 3D rocker potentiometers can achieve more sophisticated control with motion control systems.

5. Volume and design flexibility:

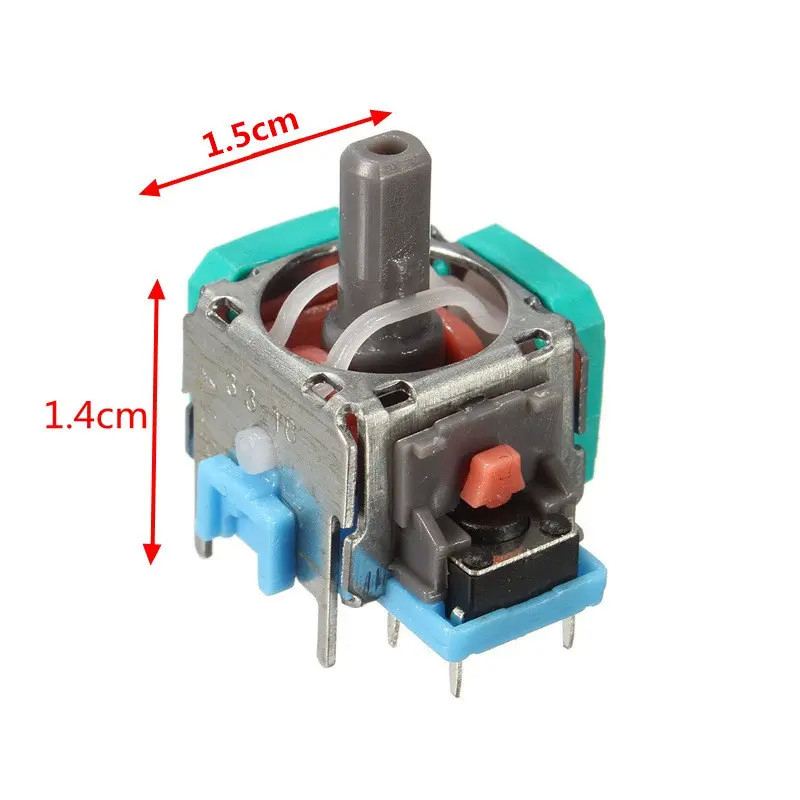

3D rocker potentiometers are usually small in size and suitable for use in devices with limited space. Its design is flexible and the shape, size and installation method can be customized as needed. This flexibility allows 3D rocker potentiometers to be widely used in different fields and meet the needs of various equipment designs.

Feature analysis:

Small and exquisite: 3D rocker potentiometers are usually small in size and suitable for compact devices. For example, many embedded devices, smartphones, portable audio and other devices use small 3D rocker potentiometers to save space.

Customized design: According to the needs of different application scenarios, 3D rocker potentiometers can provide a variety of customized options, including button shape, shell color, installation method, etc. This allows designers to choose the right potentiometer according to the specific appearance and operation requirements of the device.

6. Application scenarios:

3D rocker potentiometers are widely used in many fields due to their multi-dimensional adjustment, precise control, and strong anti-interference ability. Here are some typical application scenarios:

Game controllers and virtual reality (VR) devices: In game controllers and virtual reality devices, 3D rocker potentiometers can provide precise direction control and signal adjustment to enhance the user's immersive experience. By shaking and rotating the controller, users can achieve more precise control, such as controlling the direction and speed of the game character's movement.

Audio and video equipment: In audio equipment (such as speakers, mixers, etc.), 3D rocker potentiometers are often used for fine adjustment of volume, frequency, sound effects, etc. Users can achieve comprehensive control of audio signals through three operation modes: front and back, left and right, and rotation.

Automotive electronics: In the control panels of modern cars, 3D rocker potentiometers are widely used to control the adjustment of in-vehicle entertainment systems, air conditioners, lights and other equipment. Due to its three-dimensional control characteristics, it allows drivers to easily adjust multiple systems in a short time, improving driving convenience.

Industrial automation: In the field of industrial control, 3D rocker potentiometers are often used in the control panels of various machines and equipment to adjust parameters such as speed, pressure, and temperature. Its precise control capabilities and high durability make it widely used in industrial environments.

Medical equipment: 3D rocker potentiometers are used as control and adjustment components in some medical equipment, especially in precision medical instruments and monitoring equipment, and provide high-precision adjustment functions. They can help doctors and operators achieve more accurate parameter settings and ensure the normal operation of the equipment.
