Joystick Potentiometer
  • Joystick Potentiometer

Joystick Potentiometer

Are you a factory or a trading company?

Answer: We are a factory, we can guarantee our price is first hand, very cheap and competitive.


How is the quality control in your factory?

Answer: All products will be 100% checked before shipment.


How to contact us?

Tel: 86-13377785035

Wechat: kkg-vivian

Email: xyy@kkg.tw

WhatsApp: +8613377785035


  • Product Details
  • More Products
Product Details
Highlight:

UAV Rotary Potentiometer

DC5.0V Rotary Potentiometer

B10K Replacement Analog Stick Sensor

Place Of Origin:
Guangdong, China
Model Number:
KKG-rj16
Brand Name:
KKG
Certificate:
ROHS ISO9001
Technology:
Carbon Film
Resistance Tolerance:
±20%
Rotation:
360°
Type:
Rotary Potentiometer
Resistance:
10KΩ~ 100kΩ
Rated Power:
Liner Taper B:0.0125W
Max. Operating Voltage:
AC50V DC5.0V
Resistive Material:
Carbon
Product Description

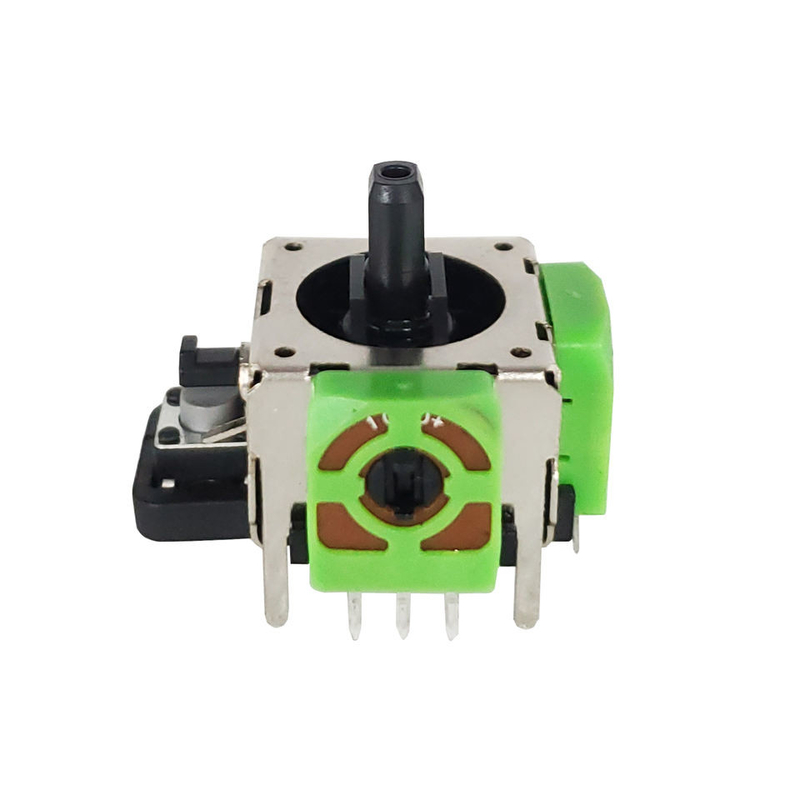

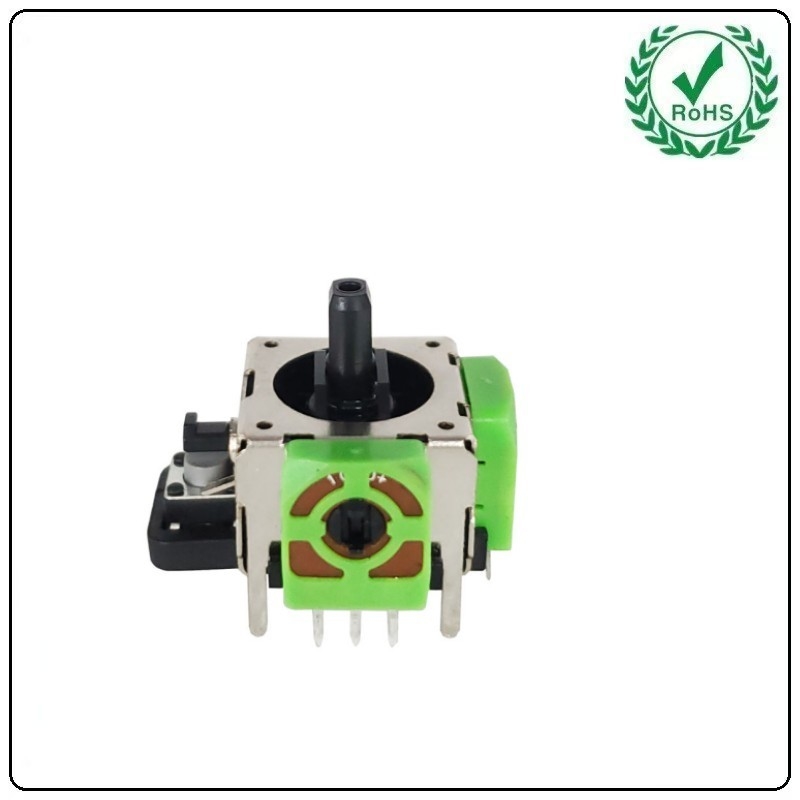

Rotary Potentiometer 3D Analog Stick Sensor Module B10K Replacement 360 Controller Switch

Rocker Game Console, UAV


The phone generated by the communication fees need to record themselves in the account above, in

order to prevent others from using our cell phone card, and even identify the personal identification pin

. added after entering the password, each time again open is entered by hand, the initial should be 1234,

three consecutive input will show has been locked, so that we must not just get



Joystick Potentiometers' Features:
1, strong maneuverability
Since the rocker potentiometer is used as a control device, the basic characteristics needed is to have a
strong operability, to meet the user's accurate control, while in the process of manipulation, smooth enough
to quickly reset, a good experience, to enhance the user's operating effect.
2, the quality of stable and durable
The use of high quality materials and strict control of each process produced by the rocker potentiometer,
in order to effectively improve the service life, to achieve stable quality and durability.
3, adapt to a variety of different areas of products
Although the potentiometer is mainly used in some electronic toys and handles, but different industries will
produce a variety of different products, need to meet the adaptability, in order to facilitate the purchase and
use of such products are more practical, strong utilization rate, can be the subsequent production use.



Joystick Potentiometers's Specification:

Electrical Specification
Total Resistane
10KΩ~ 100kΩ
Total Resistance Tolerance
±20%
Resistance Taper
B, See P128
Max. Operation Voltage
Liner Taper B:AC50V or DC5.0V
Rated Power
liner taper B:0.0125W
Sliding Noise
Less than 300mV (by JIS method)
Insulation resistance
more than 100MΩ at DC250V 1Minute
Withstand Voltage
1 minute at AC 250V/2mV/50Hz
Operating Life
100,000 cycles min
Mechanical specification
Figure of lever operation
Circular Operating
Stopper strength
3.1 kgf.cm Min 3 sec
Push-Pull strength
Push/Pull 5.0 kgf Min 3 sec
Operation force
300 gf.cm Max.
Accuracy of rest position
±5°
Operating angle of lever
55 ±6°
Tact Switch specification
Maximum Ratings
12V DC 50mA
Operating Force
820±260gf
Travel
0.5+0.5 -0.4mm
