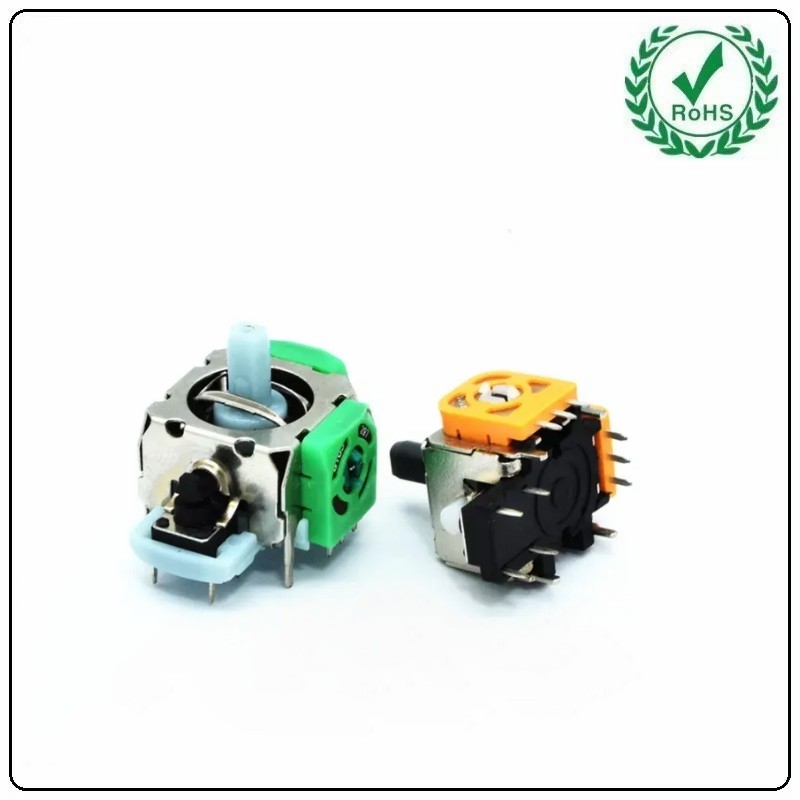

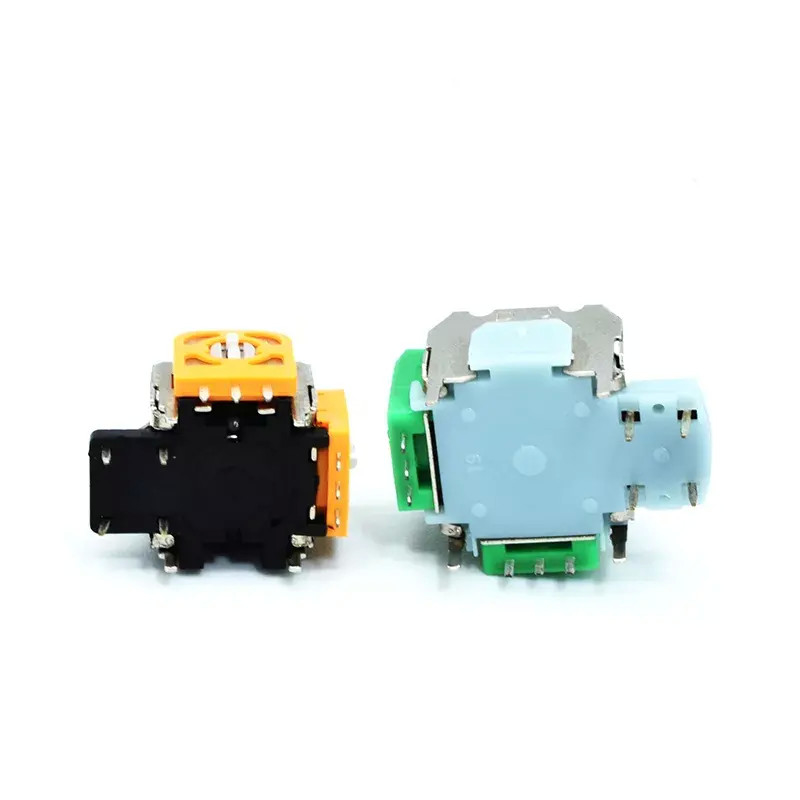

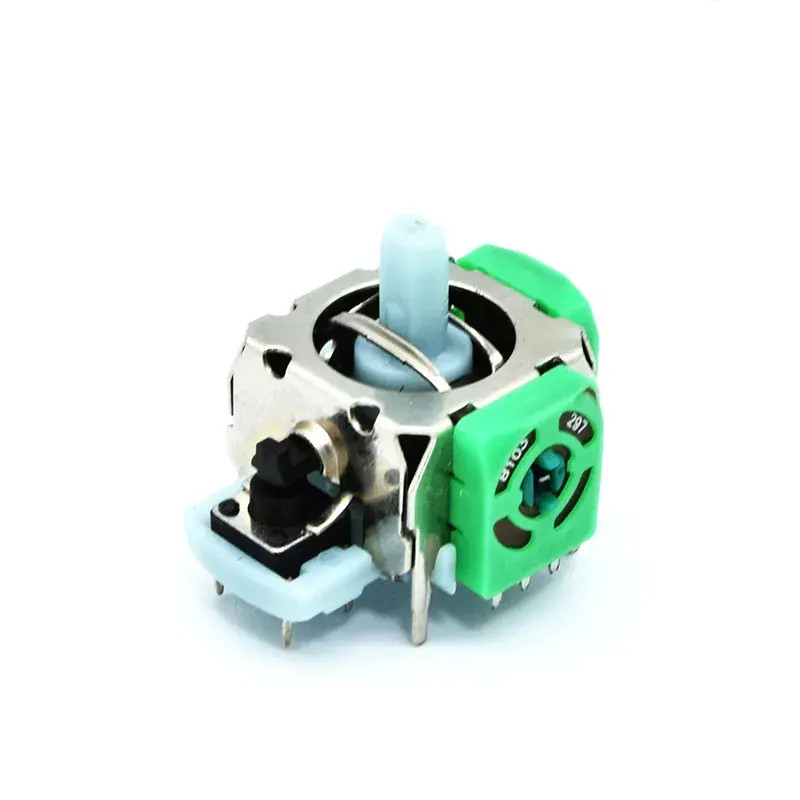

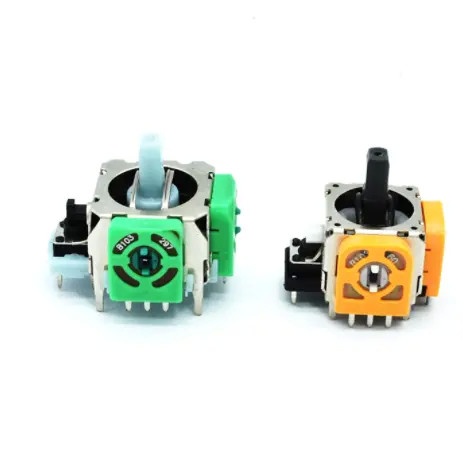

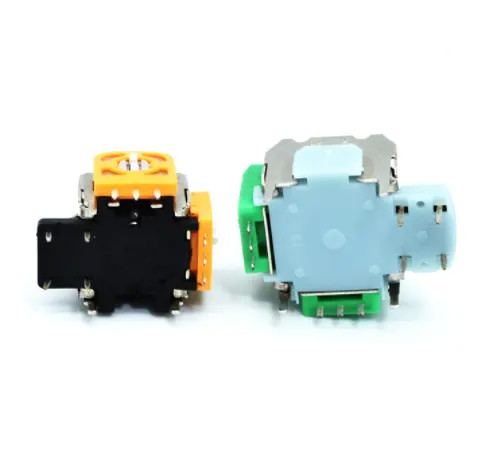

Joystick Potentiometer

A Joystick Potentiometer is a type of variable resistor used in joysticks to convert the mechanical movement of the joystick into an electrical signal. It is an essential component for achieving precise multi-axis control in various devices. Here is a detailed introduction:

Working Principle

Each potentiometer consists of a resistor in the form of a curved track and a movable contact arm. The computer power supply conducts electricity to the input terminal, through the curved resistor, through the contact arm, and back to the joystick port on the computer. When the joystick is moved, the shaft connected to the potentiometer rotates, driving the contact arm to move along the track. This changes the resistance of the circuit. The change in resistance is then measured and converted into an electrical signal representing the position of the joystick, which is transmitted to the computer or other control devices.

10K Ohm Rocker Potentiometer 5K Ohm Joystick Potentiometer ISO Approved Joystick Potentiometer

Potentiometers used for a long time, some dust and debris on the potentiometer shaft should be cleaned regularly. If not cleaned, the accumulated dust will affect the output between the lines and may cause problems when adjusting.

Strong maneuverability

Since the rocker potentiometer is used as a control device, the basic characteristics needed is to have a strong operability, to meet the user's accurate control, while in the process of manipulation, smooth enough to quickly reset, a good experience, to enhance the user's operating effect.

The quality of stable and durable

The use of high quality materials and strict control of each process produced by the rocker potentiometer, in order to effectively improve the service life, to achieve stable quality and durability.

Adapt to a variety of different areas of products

Although the potentiometer is mainly used in some electronic toys and handles, but different industries will produce a variety of different products, need to meet the adaptability, in order to facilitate the purchase and use of such products are more practical, strong utilization rate, can be the subsequent production use.

Joystick potentiometers are versatile input devices that translate physical movement into precise electrical signals. Their unique combination of directional control and analog measurement makes them indispensable in numerous fields.

Industrial Automation & Robotics

In industrial settings, joystick pots provide intuitive control for robotic arms, CNC machines, and heavy machinery. Operators can achieve smooth, proportional control over movement speed and position, enhancing precision in manufacturing and assembly lines.

Gaming & Simulation

High-end gaming controllers, flight sticks, and racing wheels utilize joystick potentiometers for realistic, analog input. They offer players nuanced control over character movement, vehicle steering, and camera angles, significantly improving the immersive experience in video games and professional simulators.

Medical Equipment

They are critical in surgical robots, patient bed adjustments, and diagnostic imaging systems like MRI and CT scanners. The precise, proportional control allows medical professionals to make fine, calibrated movements essential for sensitive procedures and patient positioning.

Material Handling & Construction

From forklifts and cranes to excavators and aerial work platforms, joystick pots enable operators to accurately control lifting, tilting, and digging functions. This ensures safe and efficient manipulation of heavy loads and construction materials.

Unmanned Aerial & Ground Vehicles (UAVs/UGVs)

These components are fundamental in the remote controls for drones and robotic vehicles. They allow pilots to command throttle, yaw, pitch, and roll with a high degree of accuracy, which is vital for stable flight, navigation, and complex maneuvers.

Professional Audio/Video Equipment

In broadcasting and sound engineering, joystick potentiometers are used to control pan-tilt-zoom (PTZ) cameras and audio mixing consoles. They provide smooth, variable adjustment for camera angles and sound channel levels, facilitating dynamic production control.

Q: What is a joystick potentiometer?

A: A joystick potentiometer is an analog input device that uses variable resistors to measure the position of a joystick handle in two (or more) axes.

Q: How does it work?

A: As you move the joystick, it physically rotates the shafts of two potentiometers (one for X-axis, one for Y-axis), changing their resistance, which is then read as a voltage.

Q: Where are they commonly used?

A: They are essential components in game controllers, RC transmitters, industrial control systems, and robotics for precise directional control.

Q: What are the main types?

A: The two primary types are single-gang (one pot per axis) and dual-gang (two pots per axis for redundancy or increased resolution).

Q: What specifications are important?

A: Key specs include resistance value (e.g., 10kΩ), mechanical life (cycle count), and linearity (accuracy of output vs. position).

Q: How are they connected?

A: Typically, they have at least 5 pins: VCC, GND, VRx (X-axis output), VRy (Y-axis output), and sometimes a push-button switch signal.
